R E V IS IO N S
R EV.
D ES CR IP T IO N
D AT E
BY
Marking
Bag and Tag with:
22558-32338X
3 place S/N and Date Code
Classification
MIL-PRF-27 Grade:
MIL-PRF-27 Class:
Maximum Ambient Temperature:
6
S (130° C)
105° C
MIL-STD-981 Quality Assurance Provisions
Class Description
Drawing Number
1
C
Commercial Parts
32338-30
B
Group A Inspection 32338-31B
E
Group A Inspection 32338-31S
S
Group A Inspection 32338-31S and
Group B Inspection 32338-85
1
The germane data will ship with the hardware.
LOAD CONDITIONS
I
DC
(1 - 2) = 0.8 A
P
TOTAL
< 0.2 W
Electrical Characteristics
DC Resistance: (1 - 2) = 165 m
S
Maximum
Inductance (measured at 0.1 V, 10 KHz):
(1 - 2) = 140 to 180 µH, IDC = 0A
(1 - 2) = 110
:
H Minimum @ IDC = 0.8A
These Parts Are Manufactured in Strict Compliance to MIL-STD-981.
The “X” in the part number UNLESS OTHERWISE SPECIFIED:
Dimensions are in inches, and
refers to the Quality Level
tolerances are:

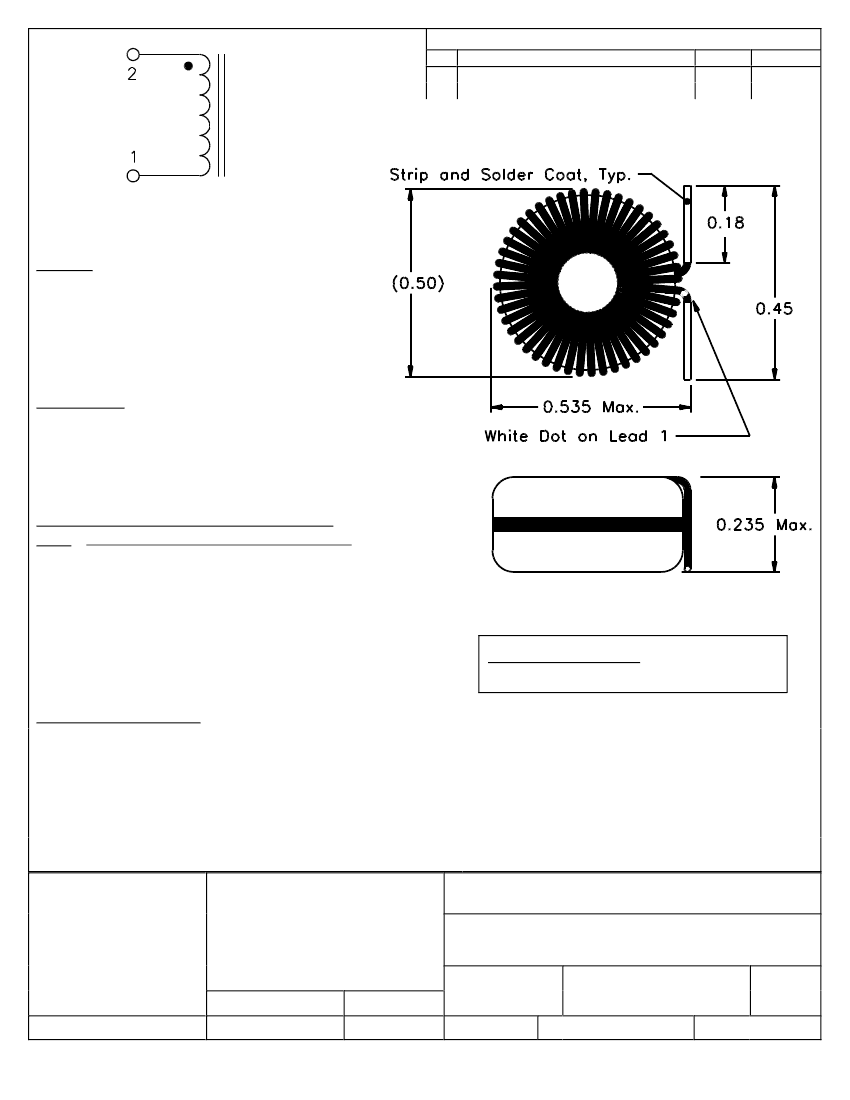

TITLE
Decimals
Angles
(C, B, E, or S), see Quality Fractions
Assurance Provisions
above.
DO NOT SCALE DRAWING
±1/64
.X = ± 0.1
.XX = ±0.02
.XXX=±0.010
±5°
COAST/ACM
Inductor
DWG. NO
REV.
FSCM
DATE
04/11/03
DRAWN BY
Jim Allen
22558
SCALE: none MAX. WT.:
32338X
3 grams
SHEET 1 OF 1
