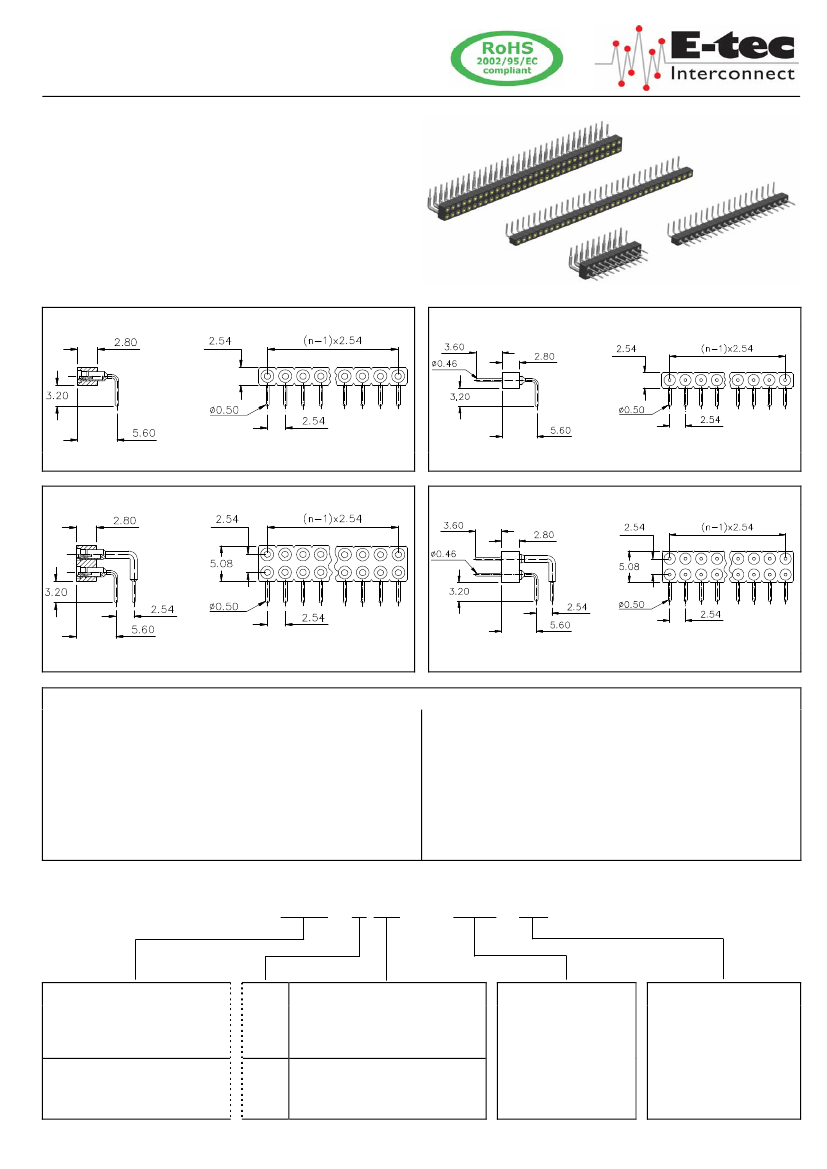

SIB/DIS - Series
2,54mm pitch
90° Socket Strips
&
Male Headers
The 2,54mm pitch 90° socket strips and male headers are
designed for „board to board“ connections, and can also be
used in combination with the straight version SIB/DIS strips
shown earlier in this catalogue.
The socket strips accept round pins with a
diameter of 0,41 to 0,56mm max.,
as well as square pins of 0,40 x 0,40mm max.
The socket strips and male headers are stackable and
available in any pinout as shown in the below order code.
The head of the female terminal is completely embedded
in the insulator.
single row - socket strips -
single row
- male header -
SIB - xxx - R900 -
95
dual row
- socket strips -
SIB - xxx - R921 - xx
dual row
- male header -
DIS - xxx - R900 -
95
Specifications
Mechanical data
Insertion force contact type 900
Extraction force contact type 900
Contact life
Operating temperature
Processing temperature
Material
Insulator
(RoHS compliant)
Terminal
(RoHS compliant)
Contact
(RoHS compliant)
1,80 N (avg)
0,90 N (avg)
100 cycles
-55° C to +125° C
+250°C
+0/-5°C
for 20~40sec.
high temp plastic UL 94 V-0
CuZn
BeCu
DIS - xxx - R921 - xx
Electrical data
Insulation resistance
Breakdown voltage
Contact resistance
Current rating
Insertion depth contact type 900
maximum
minimum
5 x 10
9
min.
500 V AC for 1 minute
4,3 m typ.
1 A max., 100V
3,68mm / .145“
2,80mm / .110“
XXX - x xx - R xxx - xx
How to order
Series
SIB
= single-in-line strips
Row
…
1
Nbr of contacts
02
to
40
20, 32, 40
Std. breakable sizes
Contact Type
-
95
Plating
Contact type „900”
900
921
=
=
female
male
=
tin/gold
(tin leadfree)
Contact type „921”
DIS
= dual-in-line strips...
...
2
04
to
72
-
99
-
55
=
=
tin
(tin leadfree)
gold
9
