KA3843B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KA3843B

KA3843B: DescriptionSwitching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8, 0.300 INCH, DIP-8; CategoryPower/power management The power supply circuit; File Size236KB，7 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Related ProductsFound16parts with similar functions to KA3843B

Download Datasheet Parametric Compare View All

KA3843B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KA3843B	-	-	View	Buy Now

KA3843B Overview

Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8, 0.300 INCH, DIP-8

KA3843B Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	8.2 V
JESD-30 code	R-PDIP-T8
length	9.2 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1 A
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	17 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	500 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

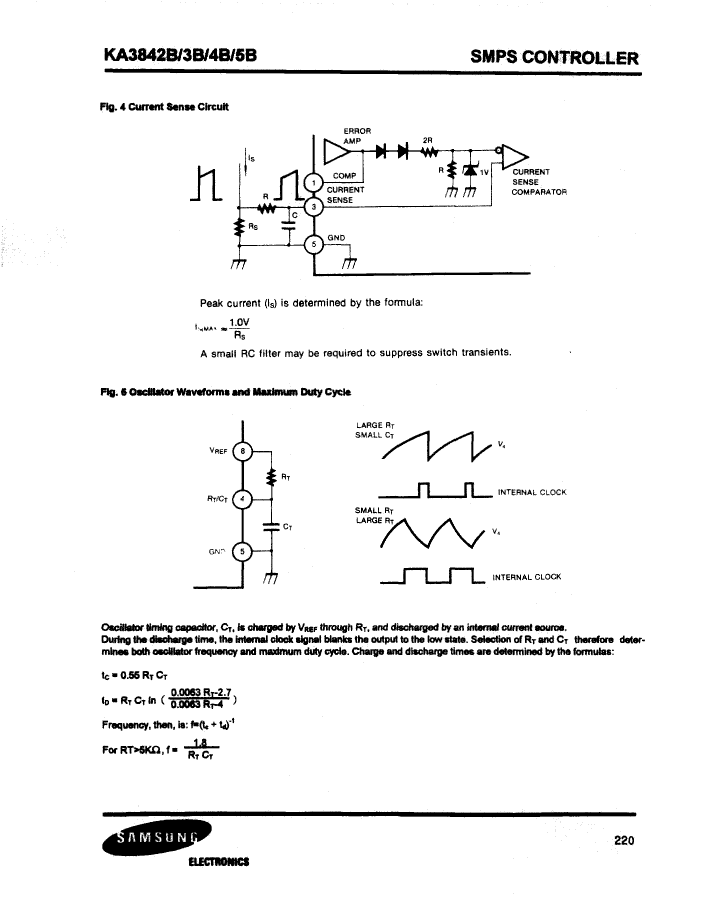

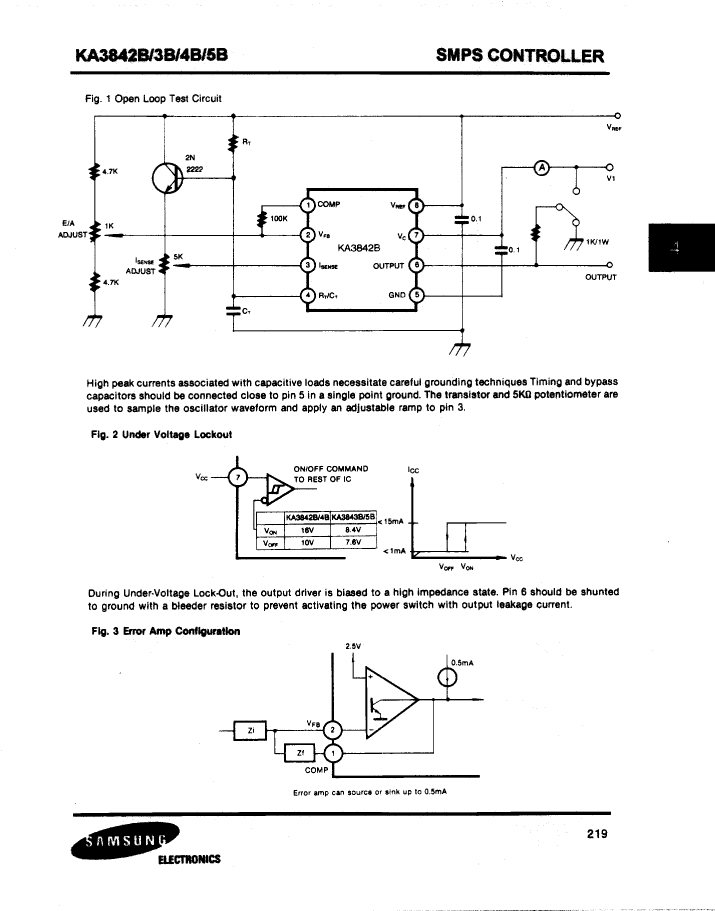

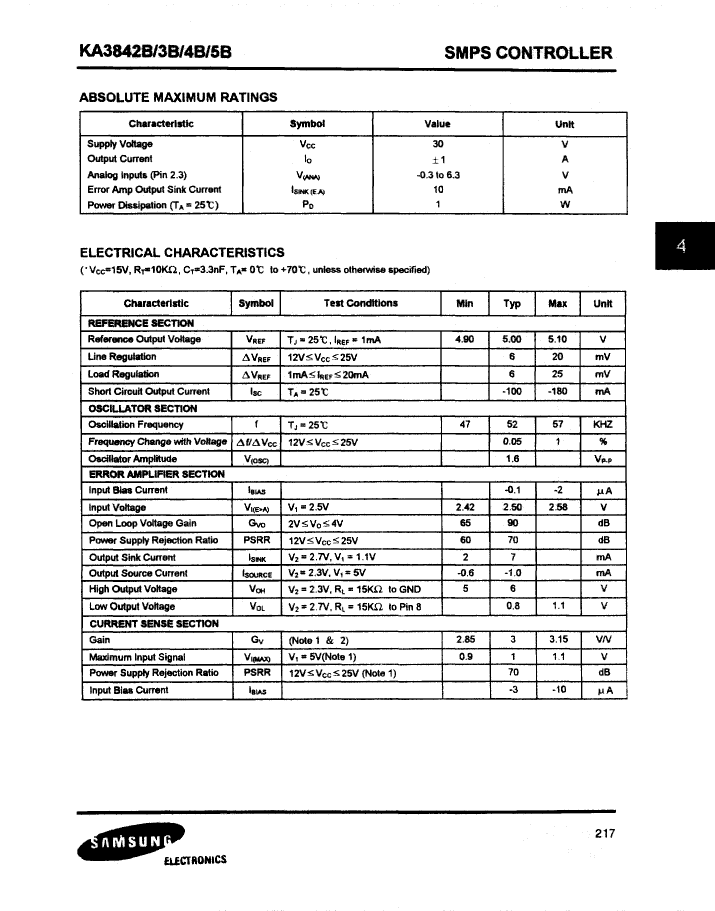

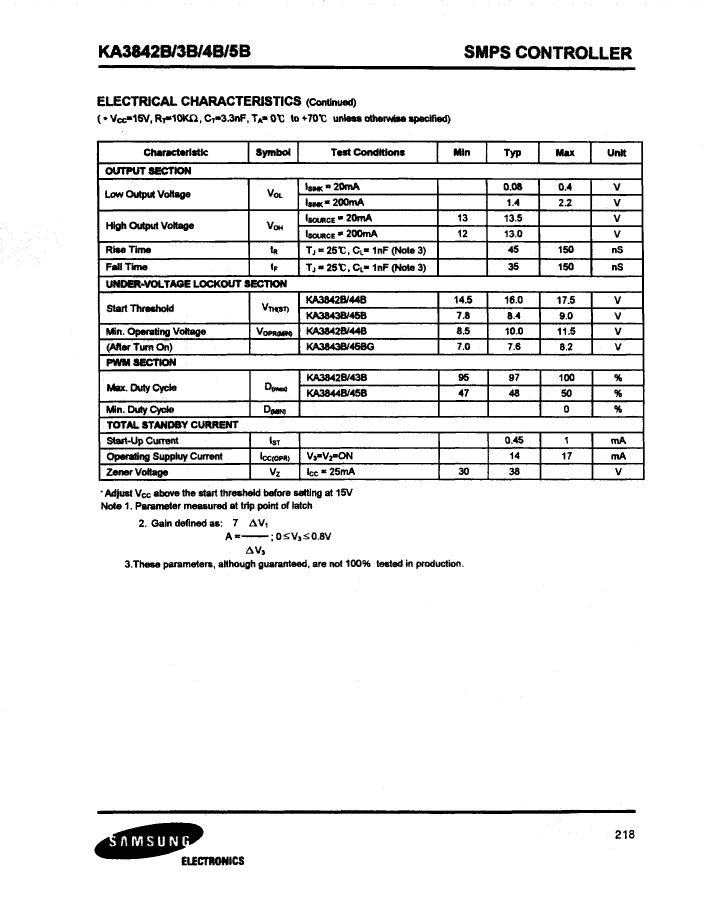

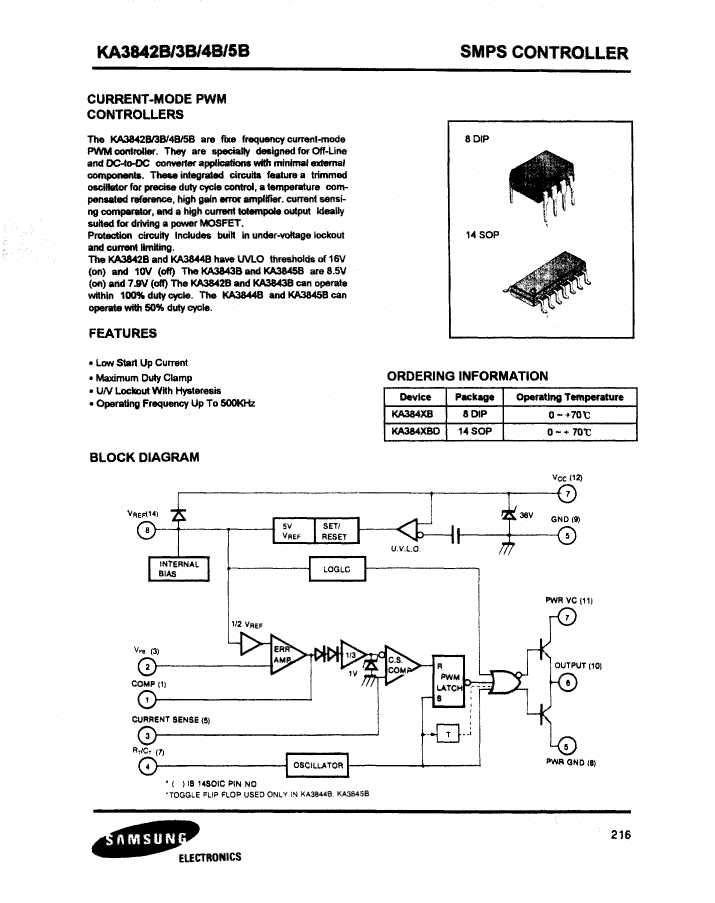

Preview

Download Datasheet

View All

KA3843B Related Products

	KA3843B	KA3843BD	KA3844B	KA3844BD	KA3842B	KA3842BD	KA3845B	KA3845BD
Description	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8, 0.300 INCH, DIP-8	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO14, SOP-14	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8, 0.300 INCH, DIP-8	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO14, SOP-14	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8, 0.300 INCH, DIP-8	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO14, SOP-14	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDIP8, 0.300 INCH, DIP-8	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO14, SOP-14
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	DIP	SOIC	DIP	SOIC	DIP	SOIC	DIP	SOIC
package instruction	DIP, DIP8,.3	SOP, SOP14,.25	DIP, DIP8,.3	SOP, SOP14,.25	DIP, DIP8,.3	SOP, SOP14,.25	DIP, DIP8,.3	SOP, SOP14,.25
Contacts	8	14	8	14	8	14	8	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Minimum input voltage	8.2 V	8.2 V	11.5 V	11.5 V	11.5 V	11.5 V	8.2 V	8.2 V
JESD-30 code	R-PDIP-T8	R-PDSO-G14	R-PDIP-T8	R-PDSO-G14	R-PDIP-T8	R-PDSO-G14	R-PDIP-T8	R-PDSO-G14
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	14	8	14	8	14	8	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Nominal output voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	DIP8,.3	SOP14,.25	DIP8,.3	SOP14,.25	DIP8,.3	SOP14,.25	DIP8,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA
surface mount	NO	YES	NO	YES	NO	YES	NO	YES
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
JESD-609 code	-	e0	e0	e0	e0	-	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
