352309K00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 352309K00

352309K00: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug; CategoryThe connector The connector; File Size161KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

352309K00 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug

352309K00 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
body width	0.287 inch
subject depth	0.433 inch
body length	1.768 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	2000VAC V
maximum insertion force	3.892 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3523
Plug contact pitch	0.197 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	9
Evacuation force-minimum value	.5004 N
Base Number Matches	1

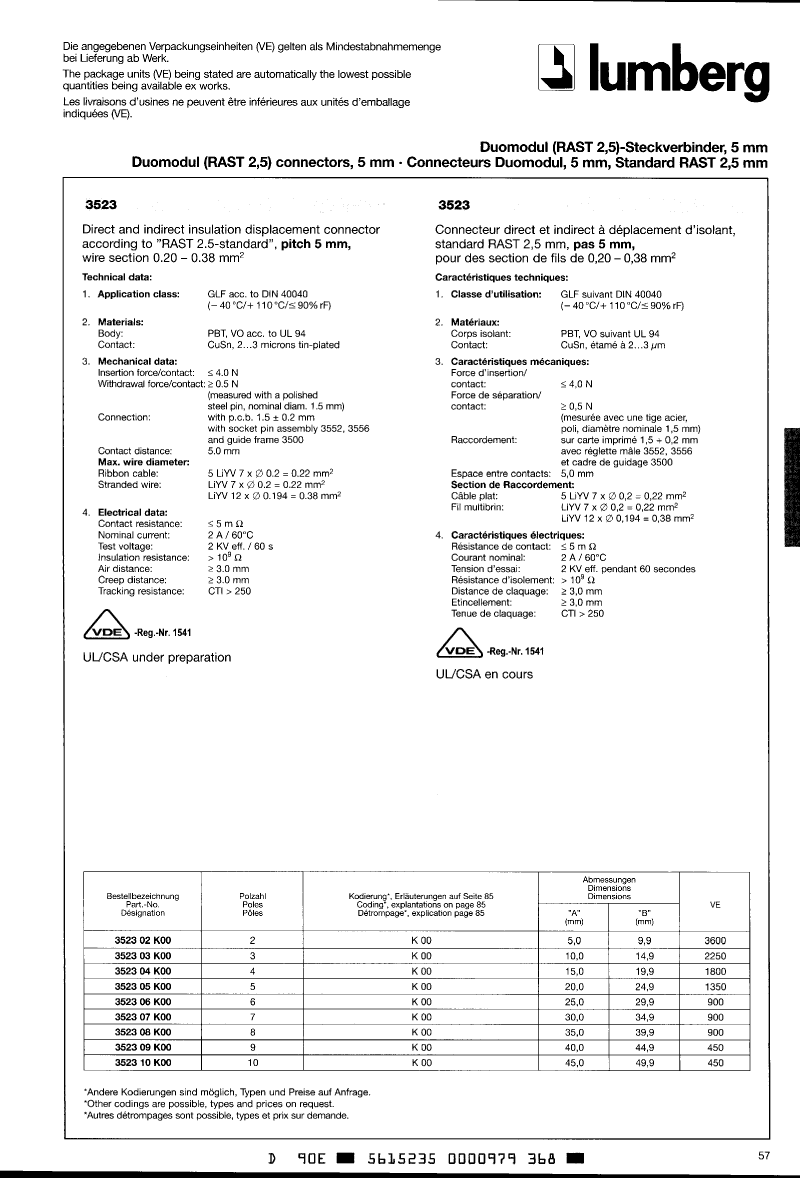

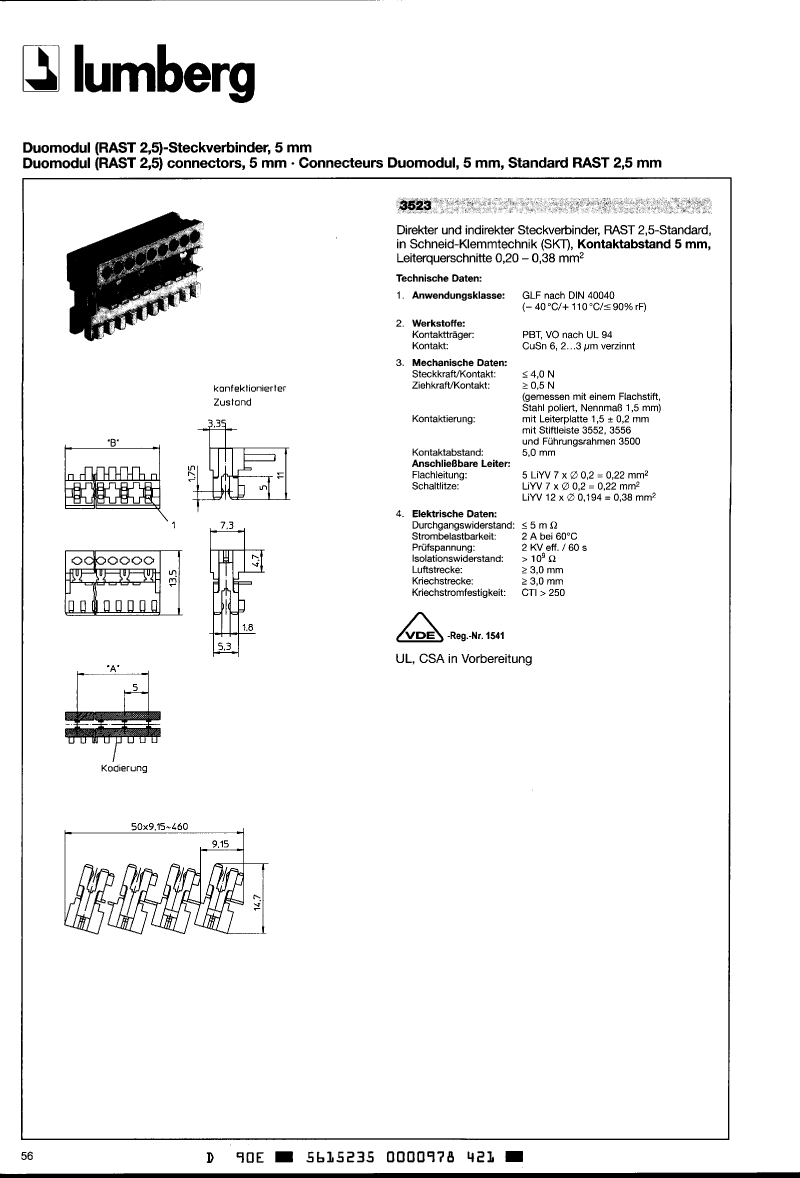

Preview

Download Datasheet

View All

352309K00 Related Products

	352309K00	352303K00	352308K00	352307K00	352304K00	352306K00	352305K00	352302K00	352310K00
Description	Board Connector, 9 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 3 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 8 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Plug
Maker	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch
subject depth	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch	0.433 inch
body length	1.768 inch	0.587 inch	1.571 inch	1.374 inch	0.783 inch	1.177 inch	0.98 inch	0.39 inch	1.965 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V	2000VAC V
maximum insertion force	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N	3.892 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3523	3523	3523	3523	3523	3523	3523	3523	3523
Plug contact pitch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	80u inch	80u inch	80u inch	80u inch	80u inch	80u inch	80u inch	80u inch	80u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	9	3	8	7	4	6	5	2	10
Evacuation force-minimum value	.5004 N	.5004 N	.5004 N	.5004 N	.5004 N	.5004 N	.5004 N	.5004 N	.5004 N
Base Number Matches	1	1	1	1	1	1	1	1	1
