Data Sheet
BCM53128
Multiport Gigabit Ethernet Switches
GE NERA L DESCR IPTI O N
The Broadcom
®
BCM53128 is a highly integrated,
cost-effective unmanaged-smart gigabit switch. The
switch design is based on the field-proven, industry-
leading ROBO architecture. This device combines
all the functions of a high-speed switch system
including packet buffers, PHY transceivers, media
access controllers (MACs), address management,
port-based rate control, and a non-blocking switch
fabric into a single 65-nm CMOS device. Designed
to be fully compliant with the IEEE 802.3™ and
IEEE 802.3x specifications, including the MAC-
control PAUSE frame, the BCM53128 provides
compatibility with all industry-standard Ethernet,
Fast Ethernet, and Gigabit Ethernet (GbE) devices.
The BCM53128 has a rich feature set suitable for
not only standard GbE connectivity for desktop and
laptop PCs, but also for next-generation gaming
consoles, set-top boxes, networked DVD players,
and home theater receivers. It is also specifically
designed for next generation SOHO/SMB routers
and gateways.
The BCM53128 contains eight full-duplex 10/100/
1000BASE-TX Ethernet transceivers.
The BCM53128 provides 70+ on-chip MIB counters
to collect receive and transmit statistics for each
port.
The BCM53128 is available in commercial
temperature (C-Temp) and industrial temperature (I-
Temp) rated packages. The BCM53128 is provided
in a 256-pin eLQFP (28 mm x 28 mm) package.
•
•
•
•
•
•
Port-based VLAN
IEEE 802.1Q-based VLAN with 4K entries
MAC-based trunking with automatic link failover
Port-based rate control
Port mirroring
BroadSync
®
HD for IEEE 802.1AS support
– Timestamp tagging at MAC interface
– Time-aware egress scheduler
DOS attack prevention
– Support IPv6
IGMP snooping, MLD snooping support
Green mode support
Spanning tree support (multiple spanning trees–
up to eight)
Loop detection for unmanaged configurations
with Broadcom’s patented LoopDTech™
technology
CableChecker™ with unmanaged mode support
Double tagging/QinQ
IEEE 802.az EEE (Energy Efficient Ethernet)
support
IEEE 802.3as support
IEEE 802.3x programmable per-port flow control
and backpressure, with IEEE 802.1x support for
secure user authentication
EEPROM, MDC/MDIO, and SPI Interfaces
Serial Flash Interface for accessing embedded
8051 processor
4K entry MAC address table with automatic
learning and aging
192 KB packet buffer
256 multicast group support
Jumbo frame support up to 9720 bytes
Serial and parallel LED interface
1.2V for core and 3.3V for I/O
JTAG support
256 eLQFP
m
ad
co
Br
o
FE ATUR ES
•
•
•
Nine 10/100/1000 media access controllers
Eight port 10/100/1000BASE-T/Tx transceivers
One GMII/RGMII/MII/RvMII/TMII/RvTMII
interface for an in-band management port (IMP)
for connection to a CPU/management entity
without PHY
IEEE 802.1p, MAC, Port, TOS, and DiffServ QoS
for four queues, plus two time sensitive queues
•
•
•
•
•
•
•
•
C
on
fid
en
tia
•
•
•
•
•
•
•
•
•
•
•
•
•
l
53128-DS07-R
Corporate Headquarters: San Jose, CA
April 6, 2016

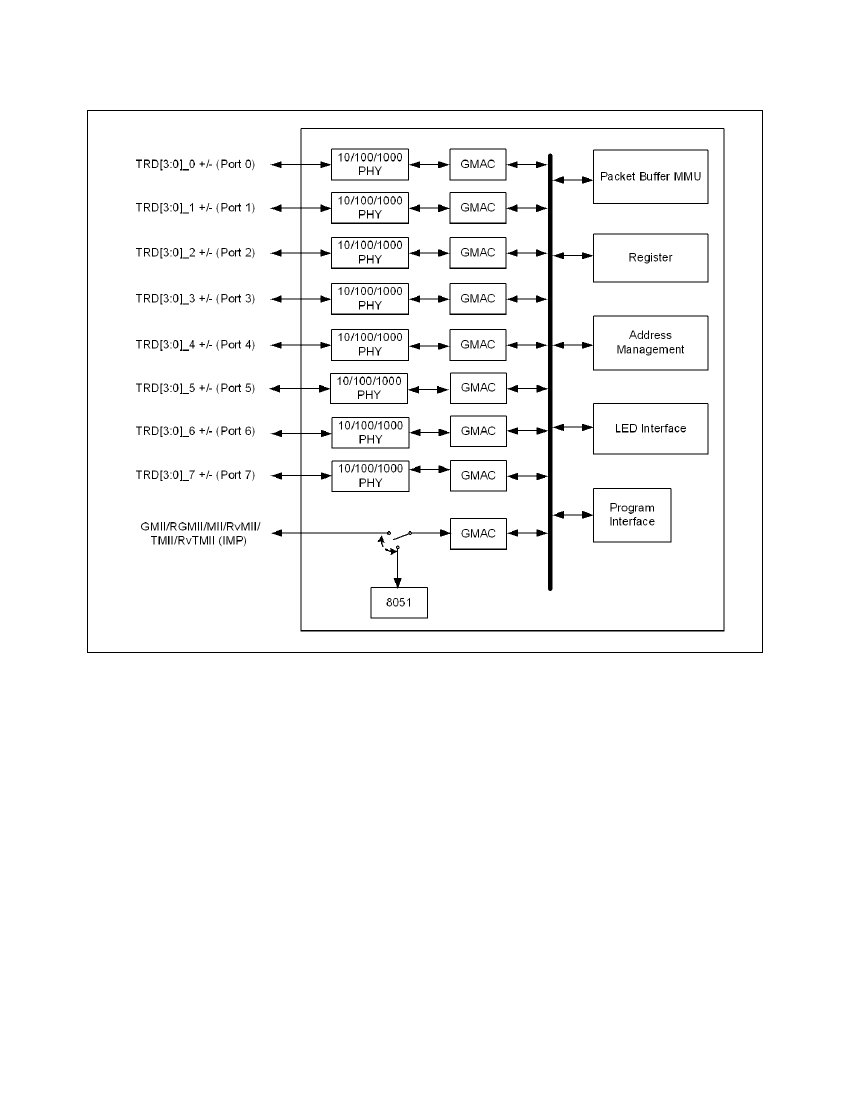

Figure 1: Functional Block Diagram
