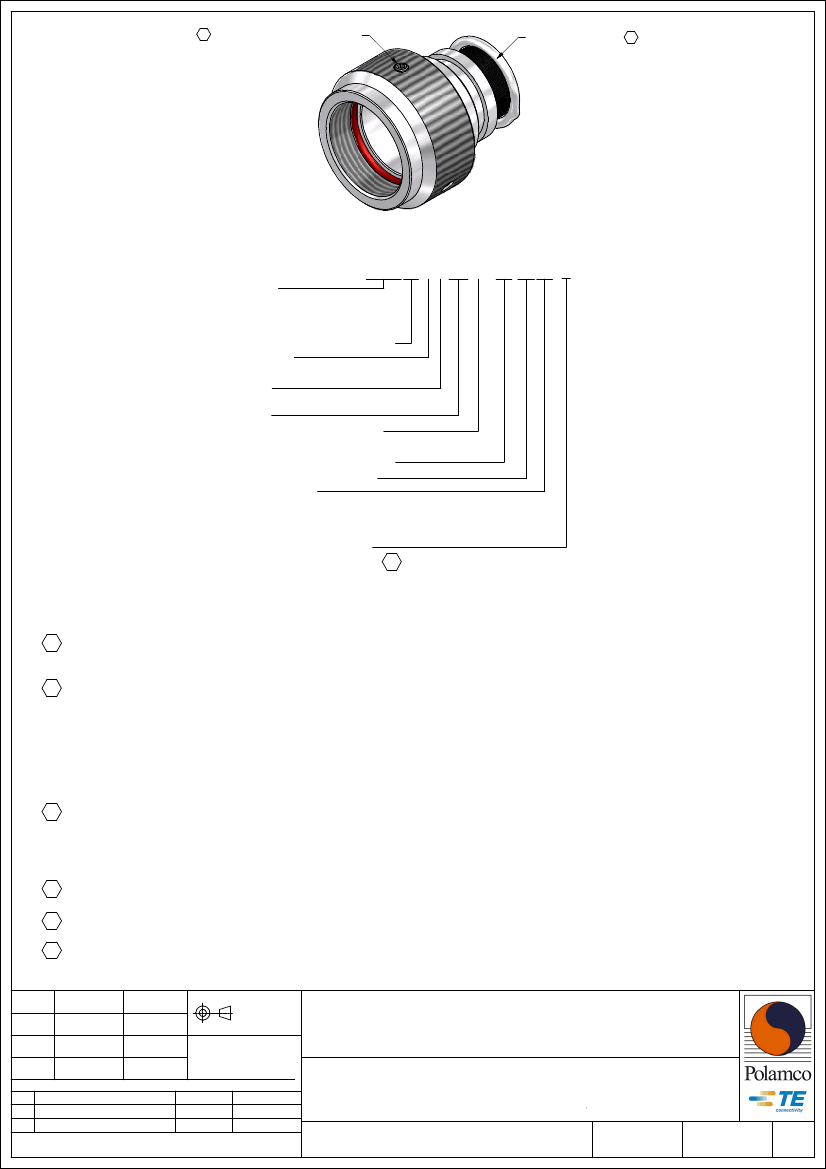

9 ANTI-ROTATIONAL SET SCREW
TINEL LOCK RING 3
CODE 18 - TINEL-LOCK BACKSHELL
TXR18AB00 -1608AI-
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
MANUFACTURER CODE
SEE TABLE 3
DASH NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
NOTES:
REFER TO CH00-0250-008
2
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR18AB00-1406).
RING SHALL BEAR NO MARKING.
5. IF MAX ENTRY IS EXCEEDED, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-DTL-5015D, CLASS A, E & R, MS3100, MS3101 & MS3106.
RESILIENT INSERT, SOLDER TYPE & BENDIX 10-214, CANNON CA-RX COMMERCIAL CRIMP TYPE.
7. ADDITIONAL PIECE(S) SUPPLIED WHEN CONNECTOR MANUFACTURER IS UNKNOWN ("D" IN TABLE 1).
8. ALL THREADS SIZES FOR ORDER NO. APPLY
9. ANTI-ROTATIONAL SET SCREW, THREE THREADED HOLES 120° ± 5° APART, SINGLE
MATING SET SCREW SUPPLIED: AN565DC4H2, NOT REQUIRED FOR TYPE 2 ADAPTERS.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
18/12/2014
18/12/2014
19/12/2014
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
J
REVISED PER ECO-15-002435
K
REVISED PER ECO-15-009990
DATE
18/02/2015
07/07/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-5015D
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR18
K
1
If this document is printed it becomes uncontrolled. Check for the latest revision
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
19,50
`
0,50
26,50
SILICONE
O-RING
27,00
A THREAD
A THREAD
ØK
ØS
ØY
ØZ
ØB
ØB
XXXX
XXXX
PART MARK
HERE

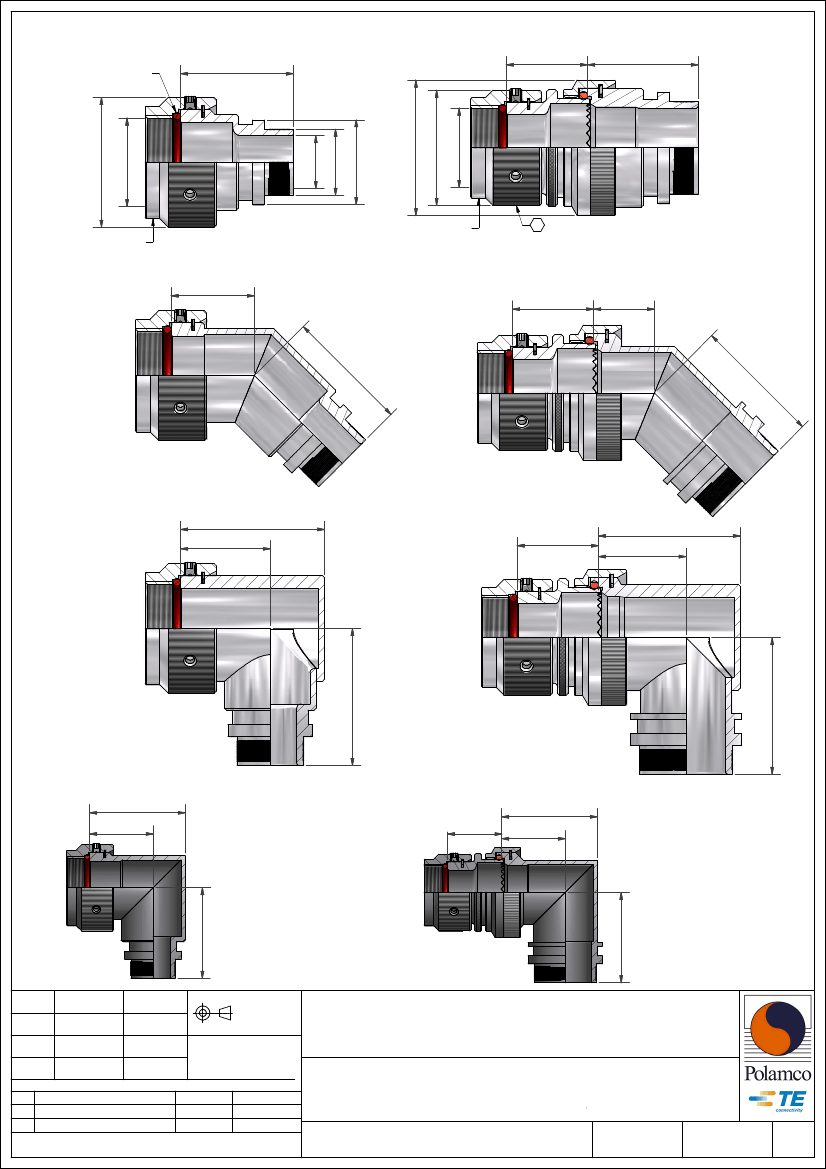

STRAIGHT BACKSHELL - TYPE 1
PART MARK
HERE
5
STRAIGHT BACKSHELL - TYPE 2
C
19,50
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
W
T
19,50
`
0,50
M
H
E
90° BACKSHELL - TYPE 1
W
T
19,50
`
0,50
M
H
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DATE
18/12/2014
18/12/2014
19/12/2014
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
J
REVISED PER ECO-15-002435
K
REVISED PER ECO-15-009990
DATE
18/02/2015
07/07/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-5015D
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
J
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR18
K
2

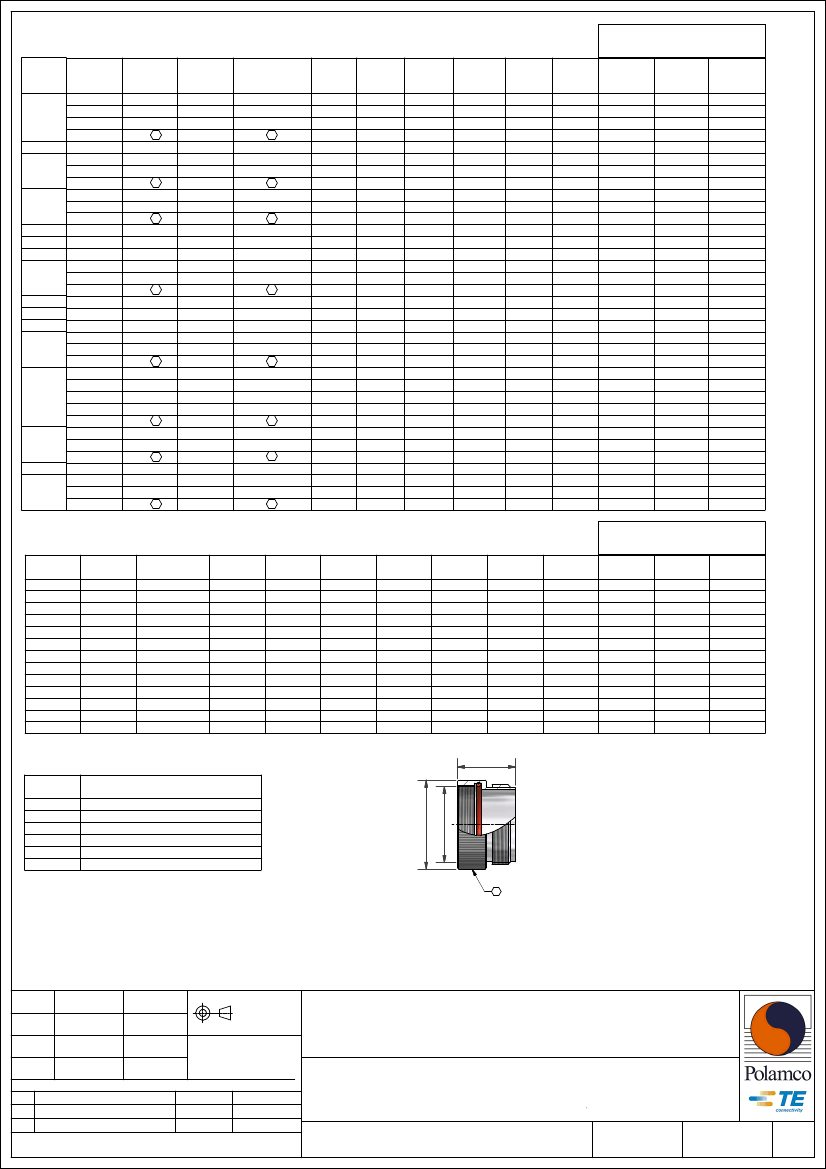

TABLE 1
ORDER
NUMBER
SHELL
SIZE
8S
8S
8S
8S
10S
10SL
10SL
10SL
12 & 12S
12 & 12S
12 & 12S
14 & 14S
16 & 16S
18
20
20
20
22
24
28
32
32
32
36
36
36
36
36
40
40
40
44
48
48
48
MFR
CODE
TABLE 3
B
C
A, R
D 8
-
C
A, B, R
D 8
B, C
A, R
D 8
-
-
-
A, B, C
R
D 8
-
-
-
B, C
A, R
D 8
B
R
C
A
D 8
B
A, C, R
D 8
-
C
A, R
D 8
MAX
ENTRY
04
04
04
04
06
07
07
07
08
08
08
10
12
12
16
16
16
18
20
22
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
A
THREAD
3/8-32 UNEF
7/16-28 UNEF
7/16-27 UNS
7
1/2-28 UNEF
9/16-24 UNEF
5/8-24 UNEF
7
5/8-24 UNEF
11/16-24 UNEF
7
3/4-20UNEF
7/8-20 UNEF
1-20 UNEF
1 1/8-18 UNEF
1 1/8-24 UNS
7
1 1/4-18 UNEF
1 3/8-18 UNEF
1 5/8-18 UNEF
1 7/8-16 UN
1 29/32-18 UN
7
2 1/16-16 UNS
2 1/16-20 UNS
2 1/8-16 UN
2 1/8-18 UNS
7
2 5/16-16 UN
2 3/8-16UN
7
2 5/8-16 UN
2 13/16-18 UNS
2 7/8-16 UN
7
ØB
MAX
18,5
18,1
18,5
18,5
19,8
21,6
23,2
23,2
23,0
24,9
24,9
27,7
31,1
34,4
37,6
37,6
37,6
40,6
43,6
48,6
54,9
54,9
54,9
64,6
64,6
64,6
64,6
64,6
70,6
70,6
69,3
82,0
82,0
82,0
82,0
C
±0,5
15,0
15,0
15,0
15,0
15,4
18,4
18,4
18,4
18,4
18,4
18,4
19,3
20,0
20,6
21,3
21,3
21,3
21,9
22,5
23,6
24,9
24,9
24,9
27,5
27,5
27,5
27,5
27,5
30,1
30,1
30,1
30,1
31,3
31,3
31,3
D
±0,5
20,1
20,1
20,1
20,1
21,6
21,6
21,6
21,6
21,6
21,6
21,6
22,2
23,6
23,7
24,6
24,6
24,6
25,0
25,4
25,4
27,5
27,5
27,5
29,0
29,0
29,0
29,0
29,0
30,1
30,1
30,1
30,1
38,5
38,5
38,5
W
±0,5
21,7
21,7
21,7
21,7
23,2
25,0
27,2
27,2
27,2
27,2
27,2
30,7
34,2
37,2
40,7
40,7
40,7
43,7
46,7
51,7
58,4
58,4
58,4
67,7
67,7
67,7
67,7
67,7
72,2
72,2
72,2
77,6 MAX
84,0 MAX
84,0 MAX
84,0 MAX
T
±0,5
15,2
15,2
15,2
15,2
15,7
16,5
17,5
17,5
17,5
17,5
17,5
19,5
21,5
23,0
24,5
24,5
24,5
26,0
27,5
30,0
32,7
32,7
32,7
38,0
38,0
38,0
38,0
38,0
41,1
41,1
41,1
41,1
44,1
47,2
47,2
E
±0,5
26,0
26,0
26,0
26,0
27,7
27,7
27,7
27,7
27,7
27,7
27,7
30,7
32,4
34,0
35,6
35,6
35,6
37,1
38,6
41,1
44,5
44,5
44,5
49,1
49,1
49,1
49,1
49,1
51,3
51,3
51,3
51,3
57,5
57,5
57,5
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
W
±0,5
21,7
21,7
21,7
21,7
23,2
27,2
27,2
27,2
27,2
27,2
27,2
30,7
34,2
37,2
40,7
40,7
40,7
43,7
46,7
51,7
58,4
58,4
58,4
67,7
67,7
67,7
67,7
67,7
72,2
72,2
72,2
72,2
75,5
75,5
75,5
T
±0,5
15,2
15,2
15,2
15,2
15,7
17,5
17,5
17,5
17,5
17,5
17,5
19,5
21,5
23,0
24,5
24,5
24,5
26,0
27,5
30,0
32,2
32,2
32,2
38,0
38,0
38,0
38,0
38,0
41,1
41,1
41,1
41,1
40,8
40,8
40,8
E
±0,5
29,0
29,0
29,0
29,0
31,2
33,0
33,0
33,0
33,0
33,0
33,0
34,9
35,5
37,2
38,7
38,7
38,7
40,2
44,9
46,0
51,3
51,3
51,3
54,3
54,3
54,3
54,3
54,3
57,5
57,5
57,5
57,5
57,5
57,5
57,5
08
10
11
12
14
16
18
20
22
24
28
32
36
40
44
48
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
±0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
21,0
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
F
±0,5
NA
12,5
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
27,5
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
24,0
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
15,5
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
27,95
27,95
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
H
±0,5
NA
24,3
24,3
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
M
±0,5
NA
17,2
17,2
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
J
±0,5
NA
28,2
28,2
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
28,40 MAX
TABLE 3
MFR
CODE
A
B
C
D
R
-
CONNECTOR MANUFACTURER
(MS 3100, MS 3101 & MS 3106)
AMPHENOL - CLASS A
BENDIX - CLASS A, E & R
CANNON - CLASS A, E & R
MFR UNKNOWN, CLASS A, E & R
AMPHENOL - CLASS R
MFR CODE NOT REQUIRED
A THREAD
ØB
7
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
18/12/2014
18/12/2014
19/12/2014
07/07/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
J
REVISED PER ECO-15-002435
K
REVISED PER ECO-15-009990
DATE
18/02/2015
07/07/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-5015D
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR18
K
3
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
