2-796641-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 2-796641-4

Preview

2-796641-4: Description24 POS 5.0 MM R/A PLUG,TRM BLK; CategoryThe connector terminals; File Size224KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-796641-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-796641-4	-	-	View	Buy Now

2-796641-4 Overview

24 POS 5.0 MM R/A PLUG,TRM BLK

2-796641-4 Parametric

Parameter Name	Attribute value
Brand Name	Buchanan
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PA 66, 94V-0, POLARIZED
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	24
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

FT

0

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

E3

E4

REVISED PER ECO-11-005027

TOLERANCES UPDATED

16MAR2011

16JAN2018

RK

FP

HMR

PS

5

5.00

0.05

TYP

18.4

D

2.50 REF

2 PLC

D

MATING FACE

15.5

WIRE ENTRY

RETENTION LATCH

796641-3 AS SHOWN

C

CLAMPING SCREW

PRELIMINARY

.762µm GOLD

TIN

L

PRELIMINARY

SEE DETAIL T

SEE DETAIL S

SEE DETAIL R

SEE DETAIL P

SEE DETAIL N

SEE DETAIL M

SEE DETAIL L

40.0

25.0

60.0

50.0

20.0

40.0

30.0

10.0

8

12

10

4

8

6

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

NO OF

POSN

2

5

4- 796641 -4

C

4- 796641 -2

4- 796641 -1

4- 796641 -0

3- 796641 -9

3- 796641 -8

3- 796641 -6

3- 796641 -2

2- 796641 -5

2- 796641 -4

2- 796641 -3

2- 796641 -2

2- 796641 -1

2- 796641 -0

1- 796641 -9

1- 796641 -8

1- 796641 -7

1- 796641 -6

1- 796641 -5

1- 796641 -4

1- 796641 -3

1- 796641 -2

1- 796641 -1

1- 796641 -0

796641 -9

796641 -8

796641 -7

796641 -6

796641 -5

796641 -4

796641 -3

796641 -2

PART

NUMBER

125.0

120.0

115.0

110.0

105.0

100.0

95.0

90.0

85.0

80.0

75.0

70.0

65.0

60.0

55.0

50.0

45.0

40.0

35.0

30.0

25.0

20.0

15.0

10.0

1

HOUSING: PA 6-6, UL 94-V0, COLOR: BLACK.

CLAMP: BRASS, NICKEL PLATED.

DOUBLE SIDE CONTACT SPRING: PHOSPHOR BRONZE, FINISH: SEE TABLE.

CLAMPING SCREW: M3, BRASS, NICKEL PLATED.

MATERIALS AND FINISH:

TIN

CONTACT

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

B

POLARIZATION KEY SLOT

2. END-TO-END STACKABLE WITHOUT LOSS OF CENTERLINE SPACING.

3. WIRE SIZE RANGE: 12-30 AWG.

4. RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC.FILE N $ E60677.

5

NOT CUMULATIVE TOLERANCE

B

6. BUCHANAN LOGO TO APPEAR ON HOUSING, LOCATION

OPTIONAL WHERE SPACE PERMITS.

7

INK MARKING: WHITE COLOR

NUMERICAL SEQUENCE: FROM LEFT TO RIGHT.

TIN

MARKING

18OCT2000

NAME

DIM L

A

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.3

-

18OCT2000

D.BIEVENOUR

APVD

18OCT2000

D.BIEVENOUR

PRODUCT SPEC

APPLICATION SPEC

S.WELDON

TE Connectivity

A

-

WEIGHT

-

1

1471-9 (3/11)

1

-

CUSTOMER DRAWING

A2

00779

SIZE

CAGE CODE

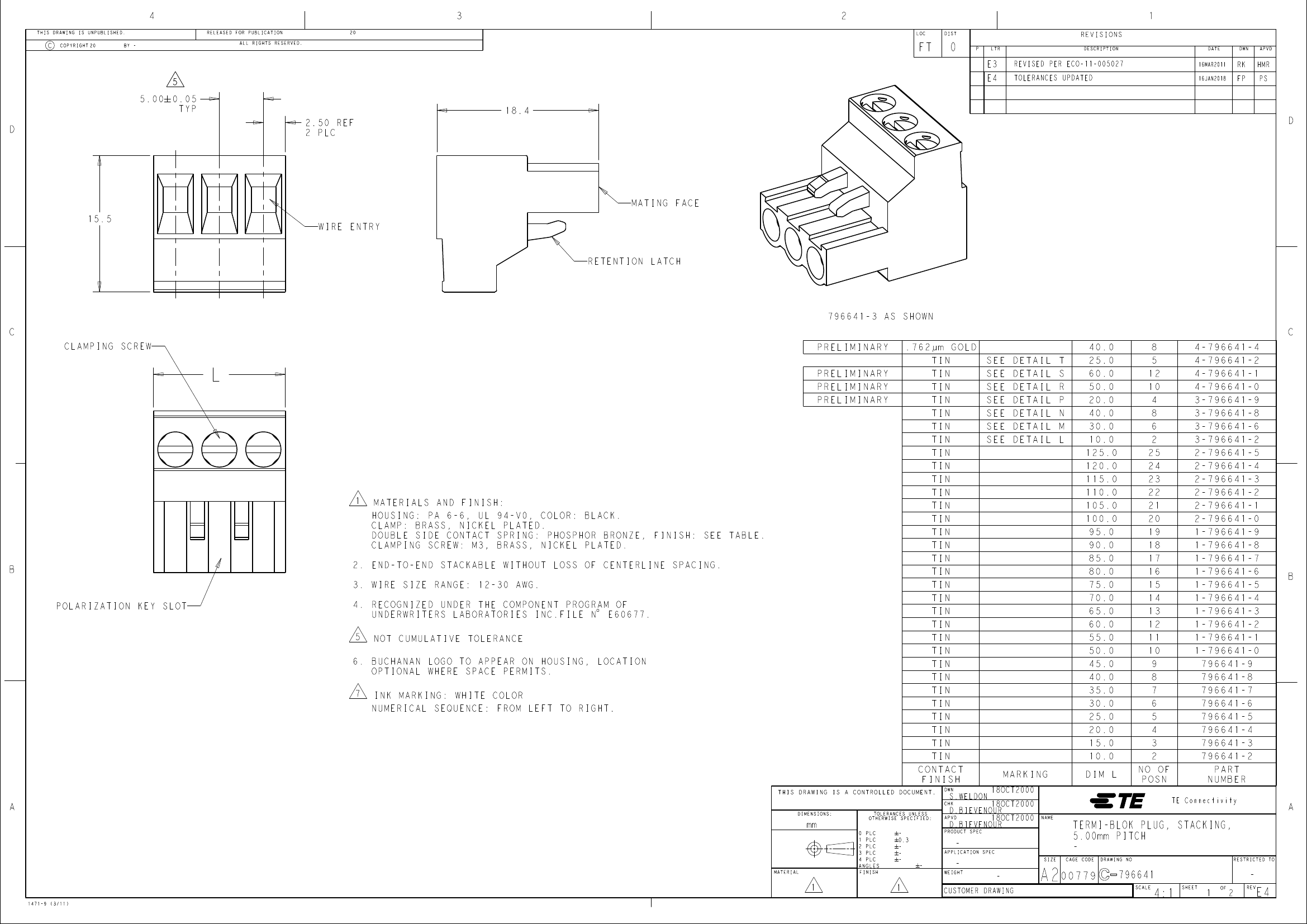

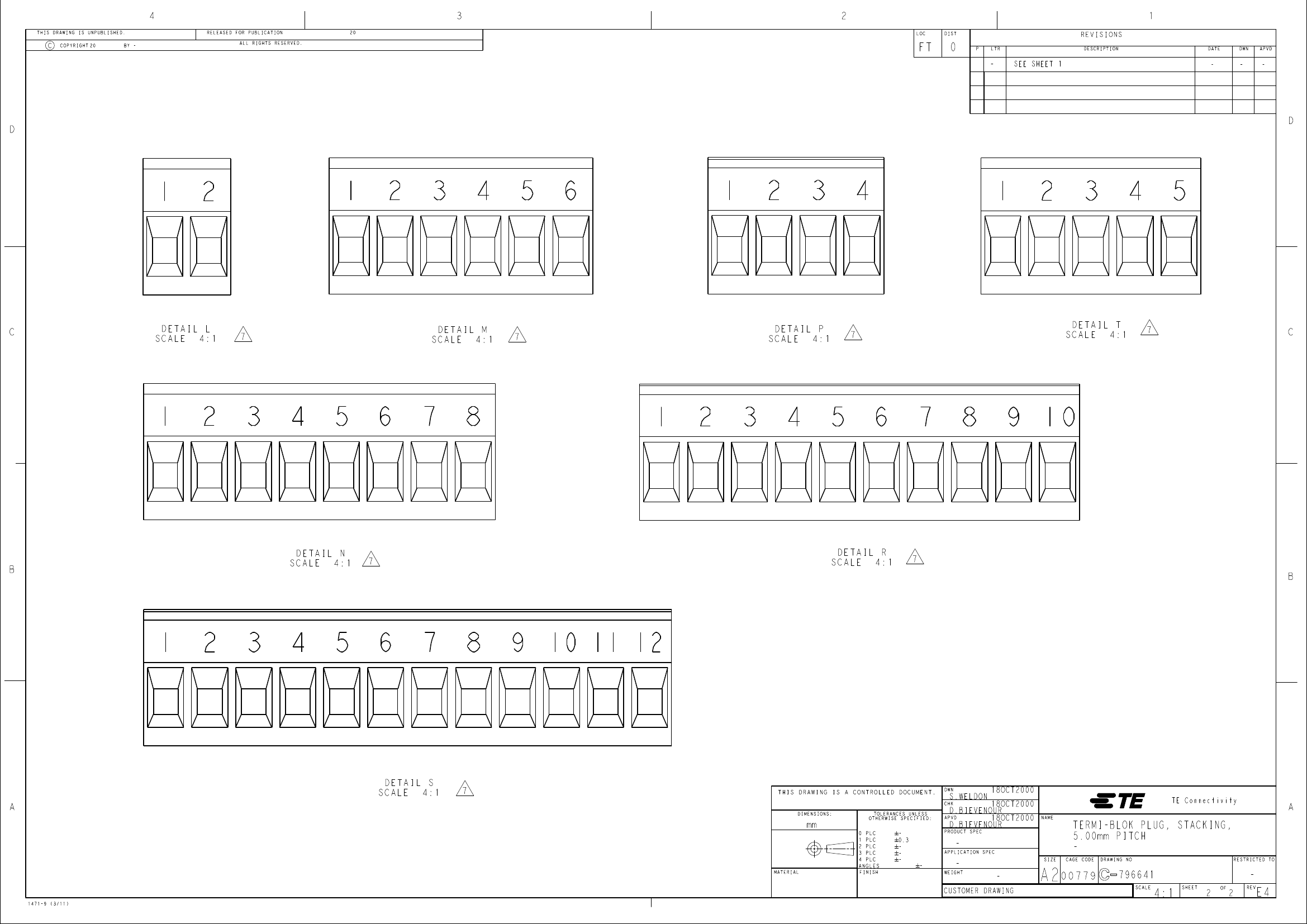

TERMI-BLOK PLUG, STACKING,

5.00mm PITCH

-

DRAWING NO

RESTRICTED TO

796641

SCALE

4:1

SHEET

1

OF

2

REV

-

E4
