540-AG11D-ES: Description540-AG11D-ES=SOCKET ASSY; CategoryThe connector socket; File Size127KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

540-AG11D-ES Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	540-AG11D-ES	-	-	View	Buy Now

540-AG11D-ES Overview

540-AG11D-ES=SOCKET ASSY

540-AG11D-ES Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.7 inch
subject depth	0.18 inch
body length	2 inch
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	BERYLLIUM COPPER
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP40
Dielectric withstand voltage	1400VAC V
Shell material	POLYESTER
Insulation resistance	5000000000 Ω
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	40
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

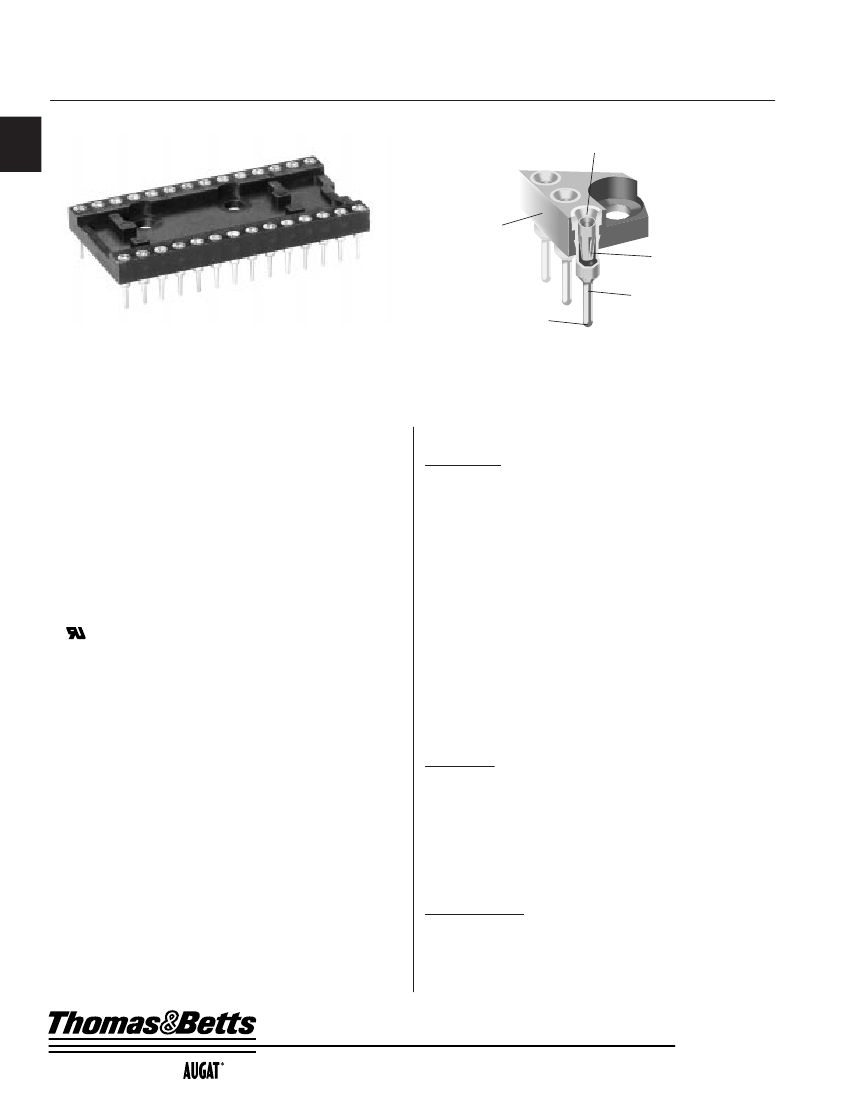

500 Series

DIP Socket with Four-Fingered Contact & Solid Insulator

Wide tapered entry

Low profile

“X” & “Y”

stackable

insulator

Precision

four-finger

inner contact

Non-wicking

closed bottom

528-AG11D-ES

Solderless wrap

or PC termination

FEATURES:

The Thomas & Betts 500 Series Socket features a precision four-finger inner

contact to produce the industry standard for high reliability screw machine

sockets.

• Precision four-finger inner contact provides concentric funnel entry for

easy flat and round lead insertion

• Machined (Premium Series) and stamped (Economy Series) contacts

are available

• "X" & "Y" stackable

• Non-wicking, closed bottom sleeve gives 100% protection against flux

and solder contamination. Choice of solderless wrap or PC termination

• Accommodates 6 through 40 pin DIPS, rectangular or round leads

•

Recognized under the Component Program of Underwriters

Laboratories, Inc. file no. E111362

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1,

Condition II, 10 G’s

Shock .............................. Passed MIL-STD-1344, Method 2004.1,

Condition C, 100 G’s

Durability ...................... Passed MIL-STD-1344, Method 2016

Normal Force ................ 125 Grams (4.4 oz.) average with .018" (0,46) dia.

polished steel pin (Premium Series)

200 Grams (7.1 oz.) average with .018" (0,46) dia.

polished steel pin (Economy Series)

Inner Contact Retention

in Sleeve ...................... 7.5 Lbs. per line average

Sleeve Retention

in Plastic ..................... 3.0 Lbs. per line minimum

Solderability .................. Passed MIL-STD-202F, Method 208

Insertion Force .............. Premium - 134 Grams (4.7 oz.) average with a

.018" (0,46) dia. polished steel pin

Economy - 179 Grams (6.3 oz.) average with a

.018" (0,46) dia. polished steel pin

Withdrawal Force .......... 63 Grams (2.2 oz.) average with a .018" (0,46)

(Premium and Economy) dia. polished steel pin

ELECTRICAL

Contact Resistance ........ 10 Milliohms max.

Contact Rating .............. 3 Amps

Capacitance .................... 1.0 pF per MIL-STD-202, Method 305

(contact to contact)

Insulation Resistance .... 5,000 Megohms min. @ 500 VDC per

MIL-STD-1344, Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,

Method 3001.1

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Cond. II

Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1, Cond. A

Operation Temperature .. Gold inner contact -55°C to +125°C,

Tin/lead inner contact -55°C to +105°C

• Beryllium copper inner contact for maximum mechanical and

electrical performance

• For extreme conditions involving shock and vibration, Thomas & Betts's

high retention series is available

APPLICATION DIMENSIONS:

• PCB Thickness Range: Standard .062" and .092" (1,57 and 2,34)

• PCB Hole Size Range:

.035"

.002" (0,89

0,05) PC tail,

.055"

.003" (1,40

0,08) solderless wrap

• IC Pin Dimension Range: .009" x .015" (0,23 x 0,38) through

.011" x .020" (0,28 x 0,51)

.016" to .021" (0,41 to 0,53) round lead,

.105" (2,67) min. length

MATERIAL SPECIFICATIONS:

Insulator ........................ Thermoplastic polyester, UL rated 94V-0

Sleeve ............................ Machined brass/formed copper

Contact .......................... Beryllium copper

Sleeve Plating ................ Tin/lead or gold

Contact Plating .............. Premium or Economy Series (ES) - gold or

tin/lead

Economy Series (ESL) - low gold

Vapor Phase/IR Compatible

Quality & Innovation From

Name Brand Products

A10

Thomas & Betts

1555 Lynnfield Road
