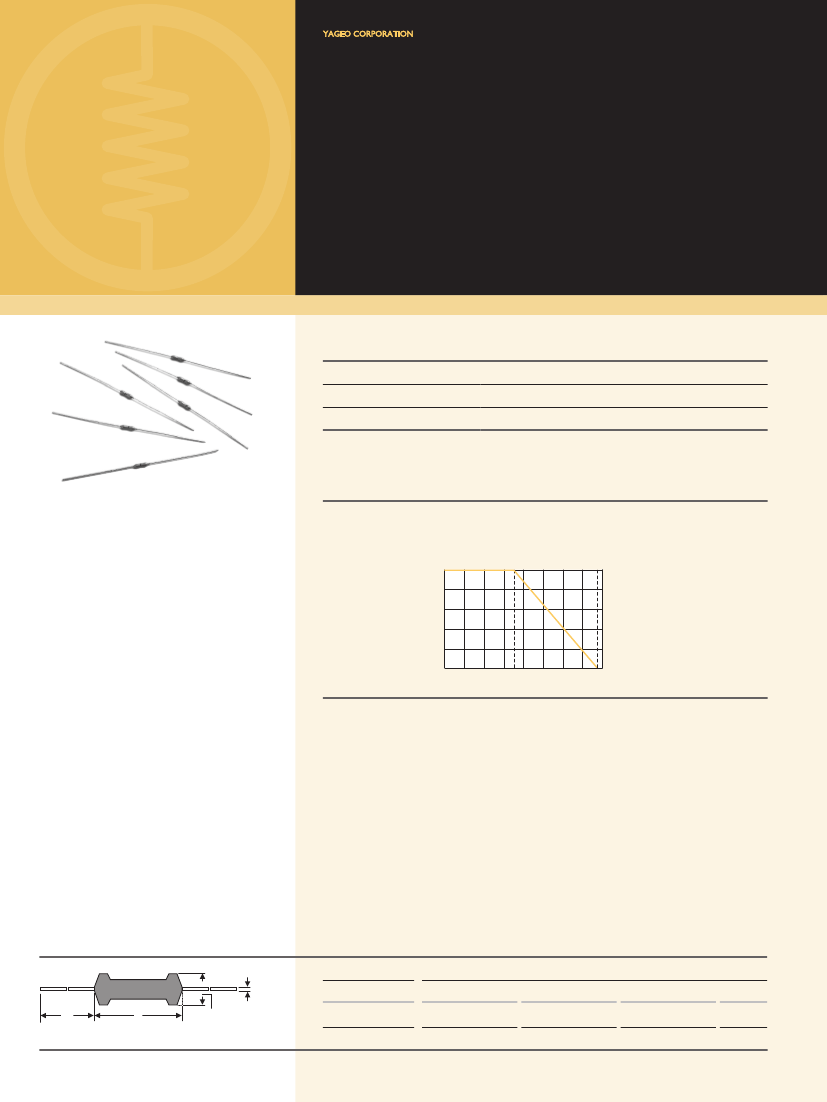

Leaded ResistoRs
Metal Film Resistors
High Precision Type
Normal Style [ MHP Series ]
FeatURes
Power Rating
Resistance Tolerance
T.C.R.
1/4W, 1/2W
±0.02%, ±0.05%
±5ppm/°C, ±10ppm/°C
deRatiNG CURVe
iNtRodUCtioN
The MHP Series Metal Film High Precision
Resistors are manufactured using vacuum
sputtering system to deposit multiple layers
of mixed metals alloy and passivative materi-
als onto a carefully treated high grade ceramic
substrate. After a helical groove has been cut
in the resistive layer, tinned connecting leads of
electrolytic copper are welded to the end-caps.
The resistors are coated with layers of blue
color lacquer. Ultra high precision resistors, ultra
high stability, ultra low temperature coefficient.
For resistors operated in ambient temperatures above 70°C, power rating must be derated
in accordance with the curve below.
Rated Load (%)
70
100
80
60
40
20
20
40
60
80
100 120 140 160
155 °C
Ambient Temperature (°C)
diMeNsioNs
stYeL
MHP-25
PA 0R1
Unit: mm
diMeNsioN
L
6.2±0.3
9.1±0.3
ød
1.8±0.3
2.1±0.3
H
36±2.0
36±3.0
ød
0.63±0.05
0.63±0.05
ød
øD
Normal
MHP-25
MHP-50
H
L
Alphanumeric marking
Note:
eLeCtRiCaL CHaRaCteRistiCs
stYLe
Power Rating at 70°C
Maximum Working Voltage
Maximum Overload Voltage
Dielectric Withstanding Voltage
Resistance Range
Operating Temp. Range
Temperature Coefficient
MHP-25
1/4W
200V
400V
300V
100
Ω
- 500K
Ω
for E192 series value
-55°C to +150°C
±5ppm/°C, ±10ppm/°C
MHP-50
1/2W
250V
500V
500V
Note: Special value is available on request.
eNViRoNMeNtaL CHaRaCteRistiC
PeRFoRMaNCe test
Short Time Overload
Dielectric Withstanding Voltage
Temperature Coefficient
Insulation Resistance
Solderability
Resistance to Solvent
Terminal Strength
Pulse Overload
Load Life in Humidity
Load Life
Temperature Cycling
Resistance to Soldering Heat
test MetHod
JIS-C-5202 5.5
JIS-C-5202 5.7
JIS-C-5202 5.2
JIS-C-5202 5.6
JIS-C-5202 6.5
JIS-C-5202 6.9
JIS-C-5202 6.1
JIS-C-5202 5.8
JIS-C-5202 7.9
JIS-C-5202 7.10
JIS-C-5202 7.4
JIS-C-5202 6.4
2.5 times RCWV for 5 Sec.
in V-Block for 60 Sec.
-55°C to +150°C
in V-Block
260±5°C for 5±0.5 Sec.
IPA for 1 Min. with ultrasonic
Direct load for 5 Sec. In the direction of the terminal leads
4 times RCWV for 10,000 cycles (1 Sec. on, 25 Sec.off)
40±2°C, 90 - 95% RH at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off)
70°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off)
-55°C
Room Temp.
+155°C
Room Temp. (5 cycles)
350±10°C for 3±0.5 Sec.
Power Rating x Resistance Value
aPPRaise
±0.25%+0.05
Ω
By type
By type
>10,000M
Ω
95% Min. coverage
No deterioration of
coatings and markings
≥2.5kg
(24.5N)
±1.0%+0.05
Ω
±0.5%+0.05
Ω
±0.5%+0.05
Ω
±0.015%+0.05
Ω
±0.1%+0.05
Ω
Note: Rated Continuous Working Voltage (RCWV) =
