T627032584DN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> T627032584DN

T627032584DN: DescriptionSilicon Controlled Rectifier, 400A I(T)RMS, 400000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T62, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size978KB，5 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

T627032584DN Overview

Silicon Controlled Rectifier, 400A I(T)RMS, 400000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T62, 3 PIN

T627032584DN Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-XXDB-X3
Contacts	3

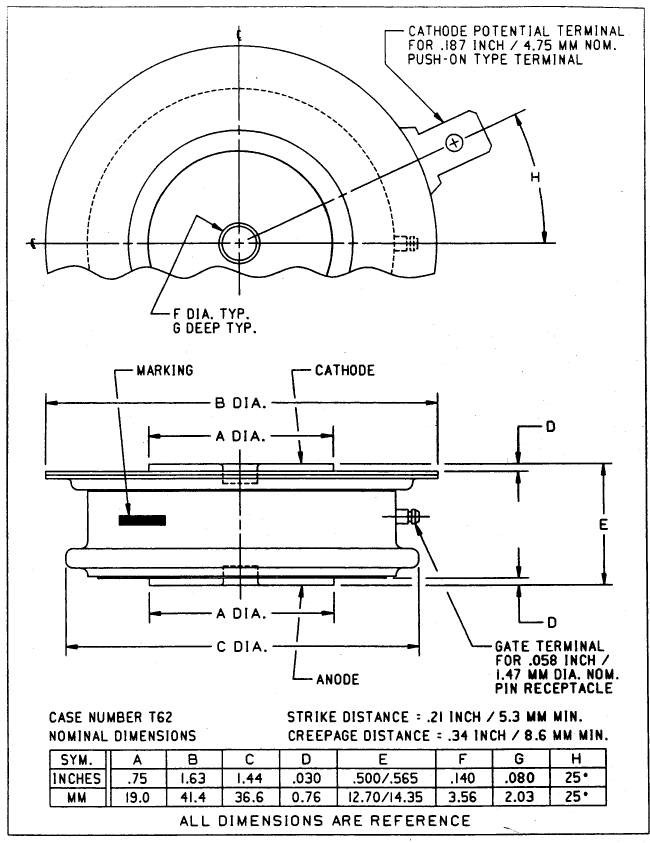

Manufacturer packaging code	CASE T62
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-XXDB-X3
Maximum leakage current	25 mA
On-state non-repetitive peak current	4500 A
Number of components	1
Number of terminals	3
Maximum on-state current	400000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	400 A
Off-state repetitive peak voltage	300 V
Repeated peak reverse voltage	300 V
surface mount	YES
Terminal surface	NICKEL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Trigger device type	SCR
Base Number Matches	1

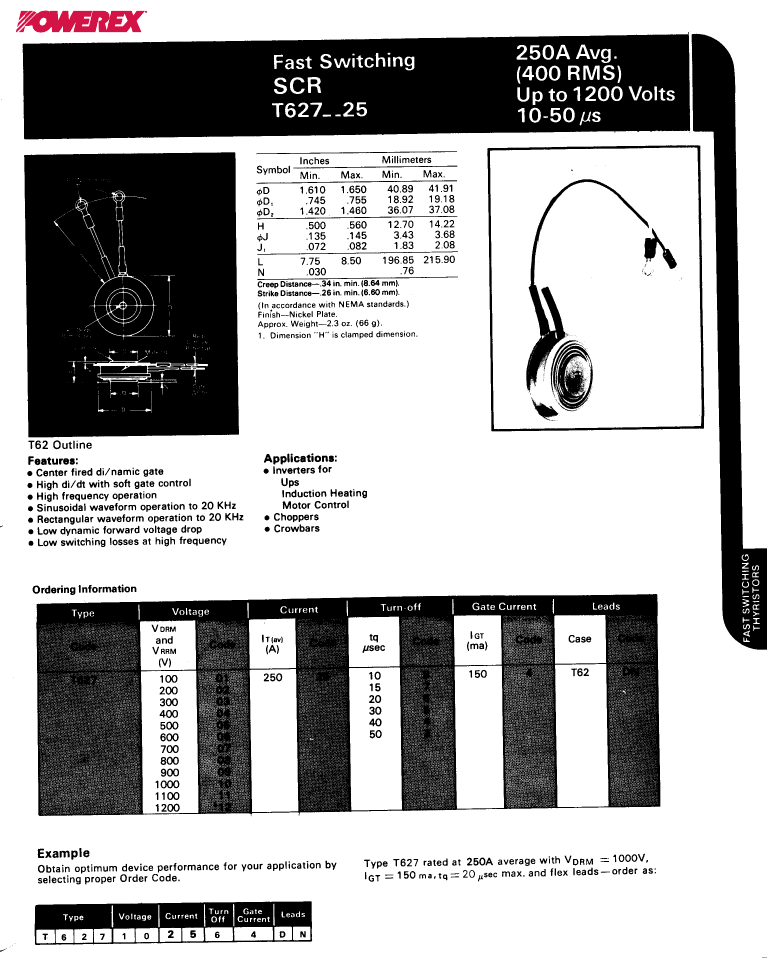

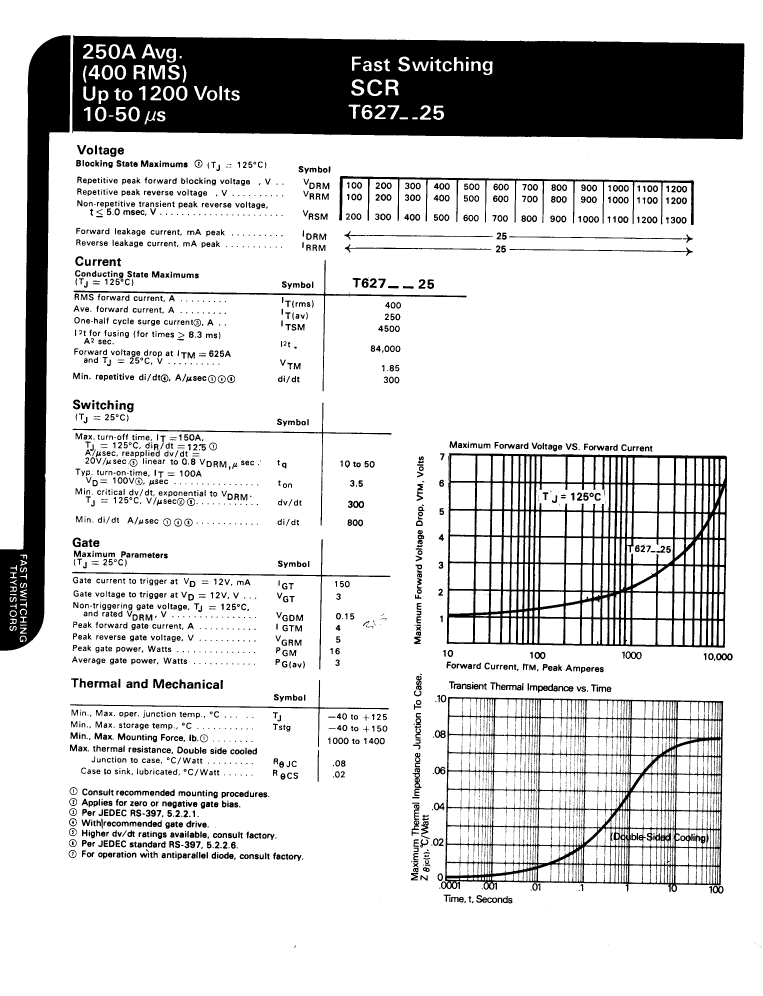

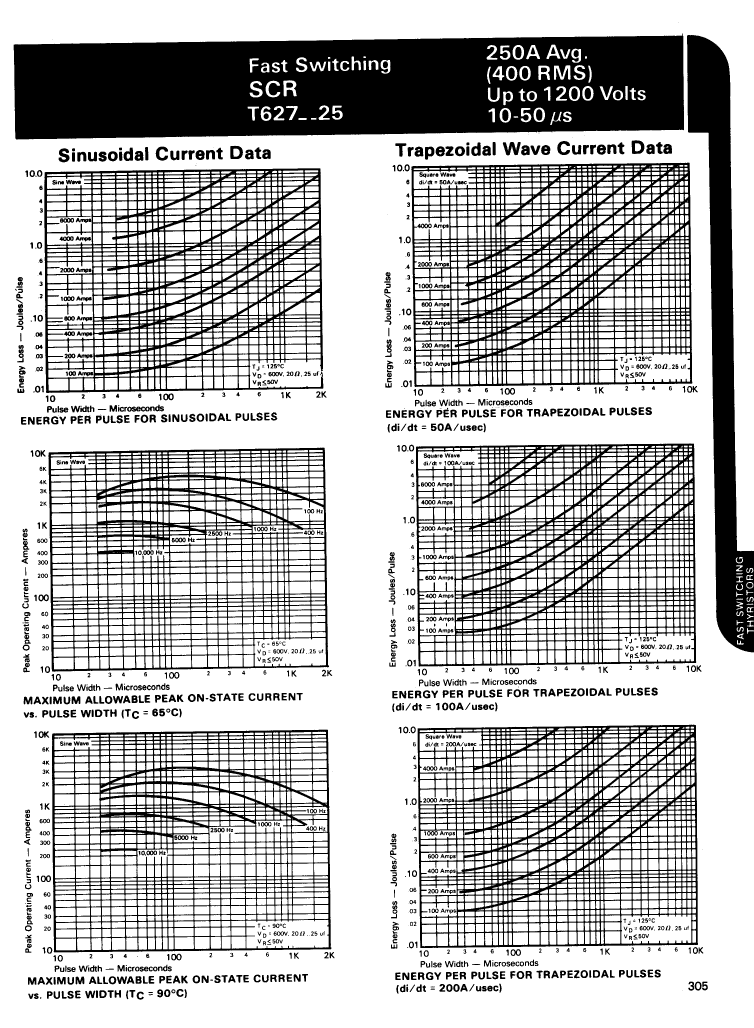

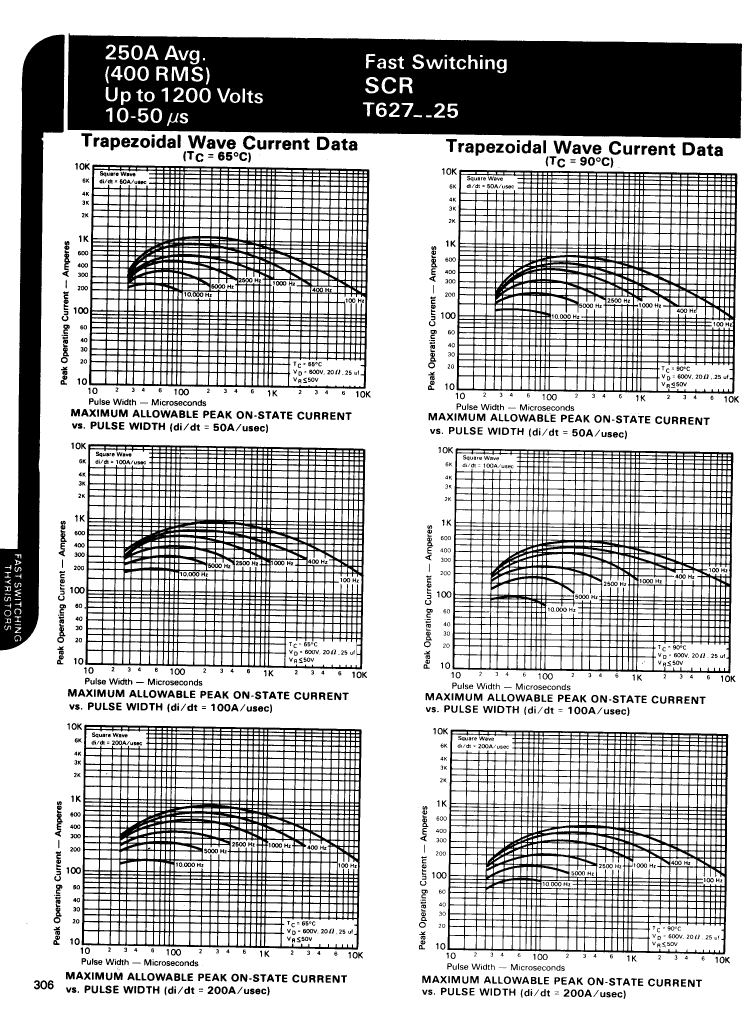

Preview

Download Datasheet

View All

173 Pavilion Lane, Youngwood, PA 15697 www.pwrx.com

T627032584DN Related Products

	T627032584DN	T627032544DN	T627032534DN	T627072584DN
Description	Silicon Controlled Rectifier, 400A I(T)RMS, 400000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T62, 3 PIN	Silicon Controlled Rectifier, 400A I(T)RMS, 400000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T62, 3 PIN	Silicon Controlled Rectifier, 400A I(T)RMS, 400000mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, CASE T62, 3 PIN	Silicon Controlled Rectifier, 400A I(T)RMS, 400000mA I(T), 700V V(DRM), 700V V(RRM), 1 Element, CASE T62, 3 PIN
Maker	POWEREX	POWEREX	POWEREX	POWEREX
package instruction	DISK BUTTON, O-XXDB-X3	DISK BUTTON, O-XXDB-X3	DISK BUTTON, O-XXDB-X3	DISK BUTTON, O-XXDB-X3
Contacts	3	3	3	3
Manufacturer packaging code	CASE T62	CASE T62	CASE T62	CASE T62
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us	300 V/us	300 V/us	300 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V
JESD-30 code	O-XXDB-X3	O-XXDB-X3	O-XXDB-X3	O-XXDB-X3
Maximum leakage current	25 mA	25 mA	25 mA	25 mA
On-state non-repetitive peak current	4500 A	4500 A	4500 A	4500 A
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum on-state current	400000 A	400000 A	400000 A	400000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	400 A	400 A	400 A	400 A
Off-state repetitive peak voltage	300 V	300 V	300 V	700 V
Repeated peak reverse voltage	300 V	300 V	300 V	700 V
surface mount	YES	YES	YES	YES
Terminal surface	NICKEL	NICKEL	NICKEL	NICKEL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Trigger device type	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	-
