GS27206325030 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

GS27206325030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Leclanche Capacitors
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM (WET)
ESR	106 mΩ
length	30 mm
Manufacturer's serial number	GS
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	PCB Mount
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1600 mA
series	GS
Base Number Matches	1

Preview

Download Datasheet

View All

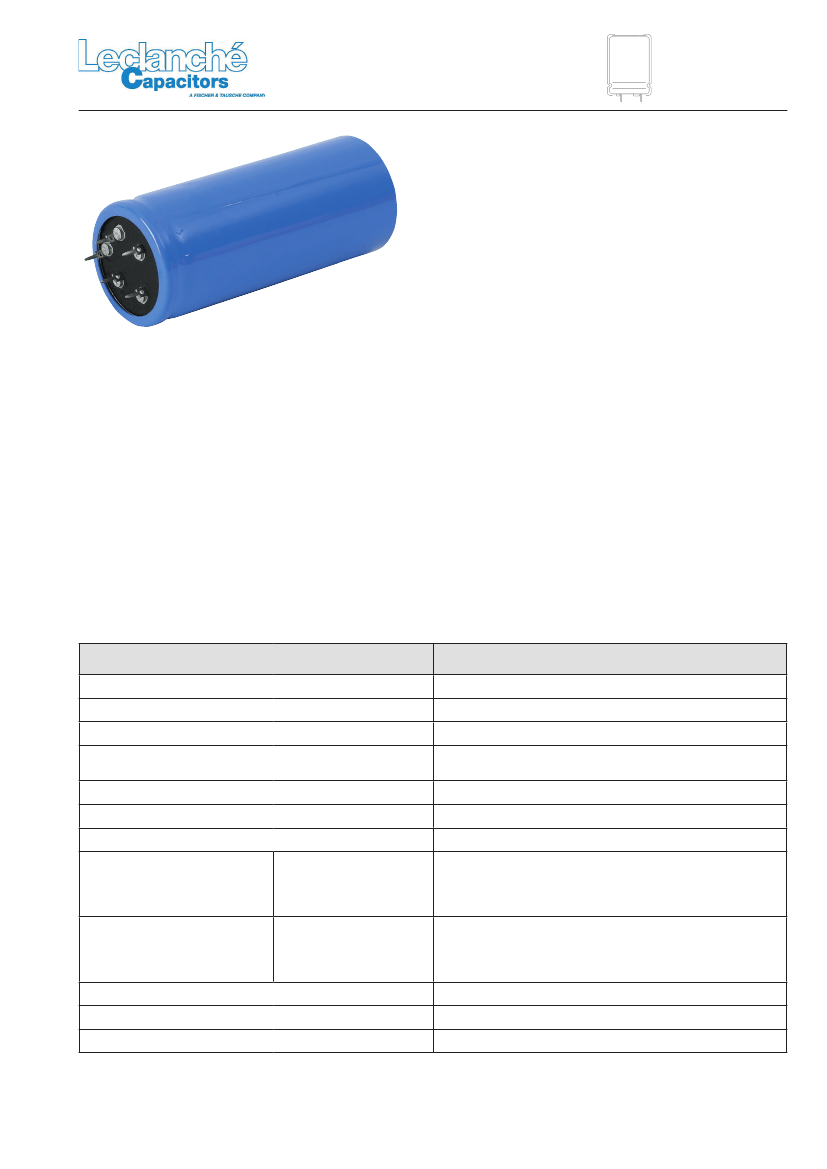

85 °C

DIN series

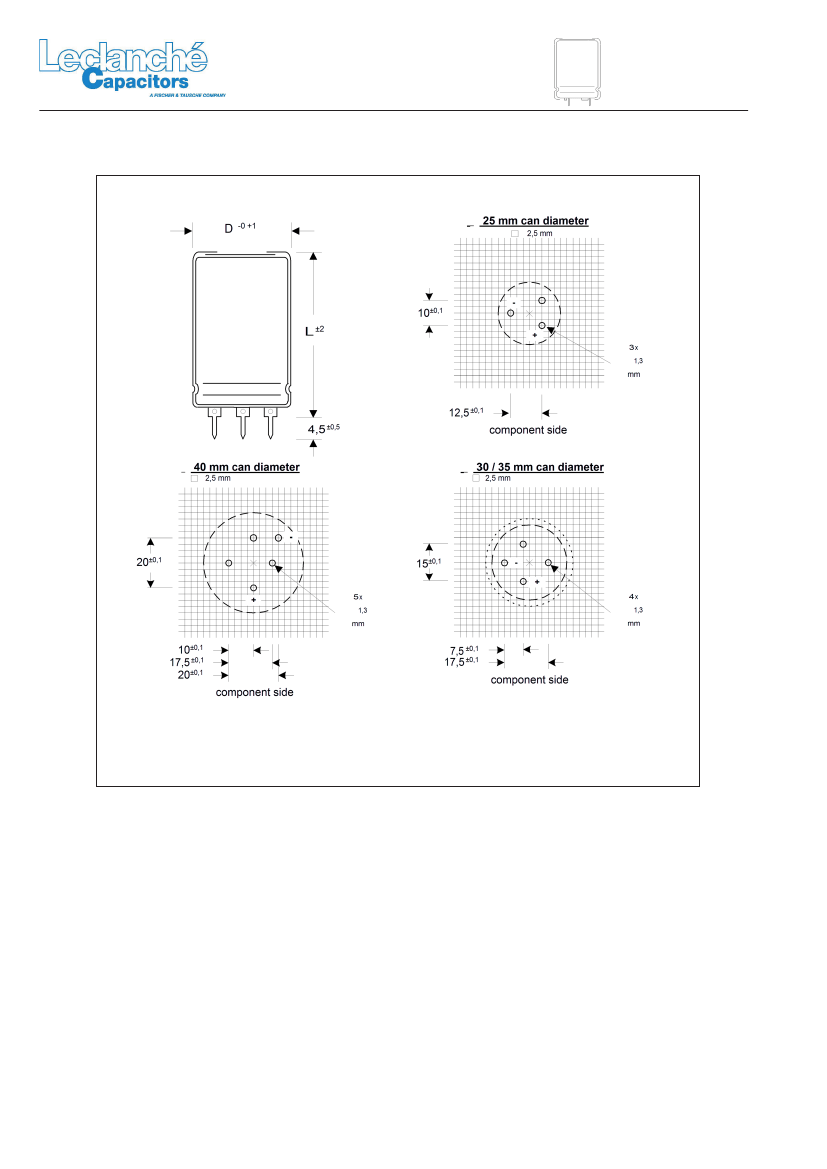

PCB solder pins

Features

•

RoHS compliant

REACH compliant

Different case sizes, voltages and

capacitance combinations

are available on request.

Also in small lots.

All internal contact welded

High CV product

High reliability

Long useful life

HiFi

Consumer

Industrial

Inverter/drives

Applications

General specifications

Items

Rated capacitance range C

Capacitance tolerance

Rated voltage range U

Surge voltage U

Max. reverse voltage

Category temperature range

Leakage current I

after 5 min @ U

Useful life

5000 h @ 85 °C ; U

; I

Characteristics

56 … 330.000 µF

± 20%

16 … 500 V

≤ 315 V: U

= 1,15 U

> 315 V: U

= 1,10 U

- 40°C ... + 85°C

≤ 0,008 * C

[µF] * U

[V] + 6 µA [µA]

Requirements

Δ C/C ≤ 30 % of initial value

ESR ≤ 300 % of specified limit

≤ specified limit

Requirements

Δ C/C ≤ 20

of initial value

ESR ≤ 130 % of specified limit

≤ specified limit

40/85/56

≥ 2500 V AC

IEC 60384-4

Endurance test

Climatic category IEC 60068

2000 h @ 85 °C , U

Voltage proof of the external insulation

Sectional specification

Leclanché Capacitors

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch
