4-647166-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 4-647166-2

Preview

4-647166-2: Description(4-647166-2) 12P MTA100 HDR ASSY,SM,FL,LF; CategoryThe connector The connector; File Size153KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

4-647166-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-647166-2	-	-	View	Buy Now

4-647166-2 Overview

(4-647166-2) 12P MTA100 HDR ASSY,SM,FL,LF

4-647166-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2096767585
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	12P MTA100 HDR ASSY,SM,FL,LF
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-09 20:32:13
YTEOL	9.1
body width	0.25 inch
subject depth	0.42 inch
body length	1.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	25 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE46
MIL compliance	NO
Power Connector Ratings	5A
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.9972 mm
Panel mounting	NO
Plating thickness	150u inch
polarization key	POLARIZED
Rated current (signal)	5 A
Guideline	CSA, LR, U
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	3.614 N

Preview

Download Datasheet

View All

8

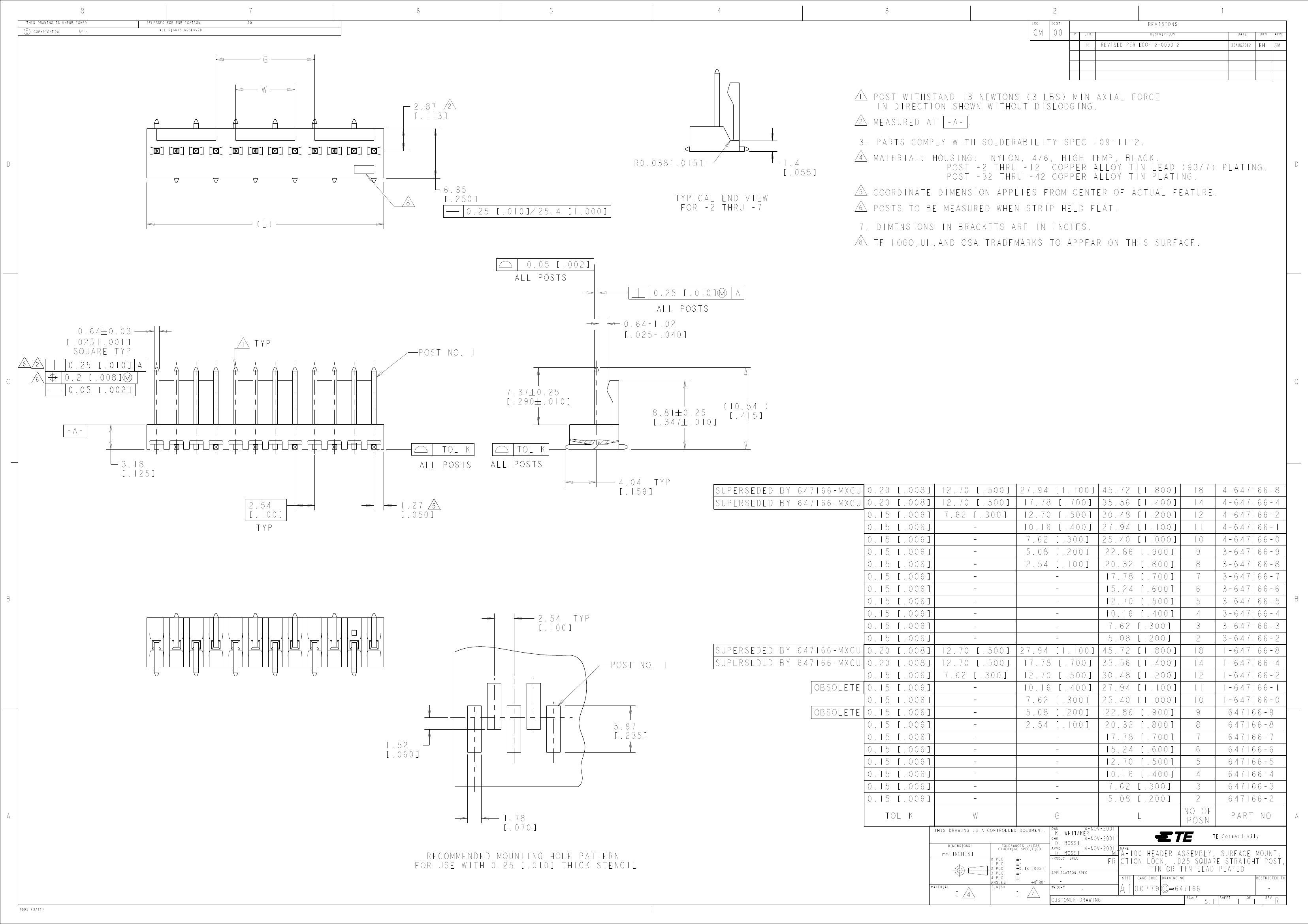

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

G

W

2.87

[ .113 ]

D

R 0.038[.015]

6.35

[ .250 ]

(L)

1.4

[ .055 ]

D

0.25 [.010]

25.4 [1.000]

TYPICAL END VIEW

FOR -2 THRU -7

ALL POSTS

0.05 [.002]

0.25 [.010]

ALL POSTS

0.64-1.02

[.025-.040]

A

0.64 0.03

[.025

.001]

SQUARE TYP

C

TYP

A

0.2 [.008]

0.25 [.010]

0.05 [.002]

POST NO. 1

C

7.37 0.25

[ .290 .010 ]

-A-

TOL K

3.18

[ .125 ]

2.54

[ .100 ]

TYP

ALL POSTS

TOL K

ALL POSTS

8.81 0.25

[ .347 .010 ]

( 10.54 )

[ .415 ]

4.04

TYP

[ .159 ]

1.27

[ .050 ]

SUPERSEDED BY 647166-MXCU

0.20 [.008]

0.15 [.006]

0.20 [.008]

12.70 [.500]

7.62 [.300]

-

27.94 [1.100]

17.78 [.700]

12.70 [.500]

7.62 [.300]

5.08 [.200]

-

0.15 [.006]

10.16 [.400]

30.48

27.94

25.40

35.56

45.72

[ 1.800 ]

[ 1.400 ]

[ 1.100 ]

[ 1.000 ]

[ .900 ]

[ .800 ]

[ 1.200 ]

14

12

11

10

8

6

4

3

5

7

9

18

4-647166-8

4-647166-2

4-647166-1

3-647166-9

3-647166-8

3-647166-6

3-647166-4

3-647166-3

3-647166-5

3-647166-7

B

4-647166-4

2.54 [.100]

20.32

17.78

12.70

15.24

22.86

4-647166-0

B

0.15 [.006]

2.54

TYP

[ .100 ]

SUPERSEDED BY 647166-MXCU

POST NO. 1

SUPERSEDED BY 647166-MXCU

OBSOLETE

1.52

[ .060 ]

5.97

[ .235 ]

0.15 [.006]

-

[ .700 ]

[ .500 ]

[ .400 ]

[ .600 ]

0.20 [.008]

0.15 [.006]

TOL K

0.15 [.006]

12.70 [.500]

7.62 [.300]

-

12.70 [.500]

-

10.16

27.94 [1.100]

12.70 [.500]

10.16 [.400]

7.62 [.300]

5.08 [.200]

2.54 [.100]

-

17.78 [.700]

-

30.48

27.94

25.40

35.56

45.72

5.08 [ .200 ]

7.62 [ .300 ]

[ 1.800 ]

[ 1.400 ]

[ 1.200 ]

[ 1.100 ]

[ 1.000 ]

[ .900 ]

[ .800 ]

[ .700 ]

[ .600 ]

[ .500 ]

[ .400 ]

14

11

10

9

8

7

6

5

3

2

4

12

18

2

3-647166-2

1-647166-8

1-647166-4

1-647166-2

1-647166-1

1-647166-0

647166-9

647166-8

647166-7

647166-6

647166-4

647166-3

647166-2

PART NO

TE Connectivity

22.86

20.32

17.78

15.24

12.70

10.16

647166-5

0.15 [.006]

A

-

W

-

G

DWN

CHK

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

5.08 [ .200 ]

L

7.62 [ .300 ]

1.78

[ .070 ]

RECOMMENDED MOUNTING HOLE PATTERN

FOR USE WITH 0.25 [.010] THICK STENCIL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

NO OF

POSN

A

APVD

PRODUCT SPEC

NAME

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

WEIGHT

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

4805 (3/11)
