BU-64843T8-E02: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, PBGA312, BGA-312; CategoryThe embedded processor and controller Microcontrollers and processors; File Size6MB，117 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BU-64843T8-E02 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, PBGA312, BGA-312

BU-64843T8-E02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	BGA
package instruction	BGA, BGA312,13X24,40
Contacts	312
Reach Compliance Code	compliant
Address bus width	16
boundary scan	NO
Bus compatibility	MIL-STD-1553
maximum clock frequency	20 MHz
letter of agreement	MIL STD 1553A; MIL STD 1553B; MIL STD 1760; MCAIR; STANAG-3838
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	1 MBps
External data bus width	16
JESD-30 code	R-PBGA-B312
JESD-609 code	e0
length	27.9 mm
low power mode	YES
Humidity sensitivity level	3
Number of serial I/Os	2
Number of terminals	312
On-chip data RAM width	16
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA312,13X24,40
Package shape	RECTANGULAR
Package form	GRID ARRAY
Certification status	Not Qualified
RAM (number of words)	2048
Filter level	MIL-STD-883
Maximum seat height	4.7 mm
Maximum slew rate	931 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
width	15.2 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

Preview

Download Datasheet

View All

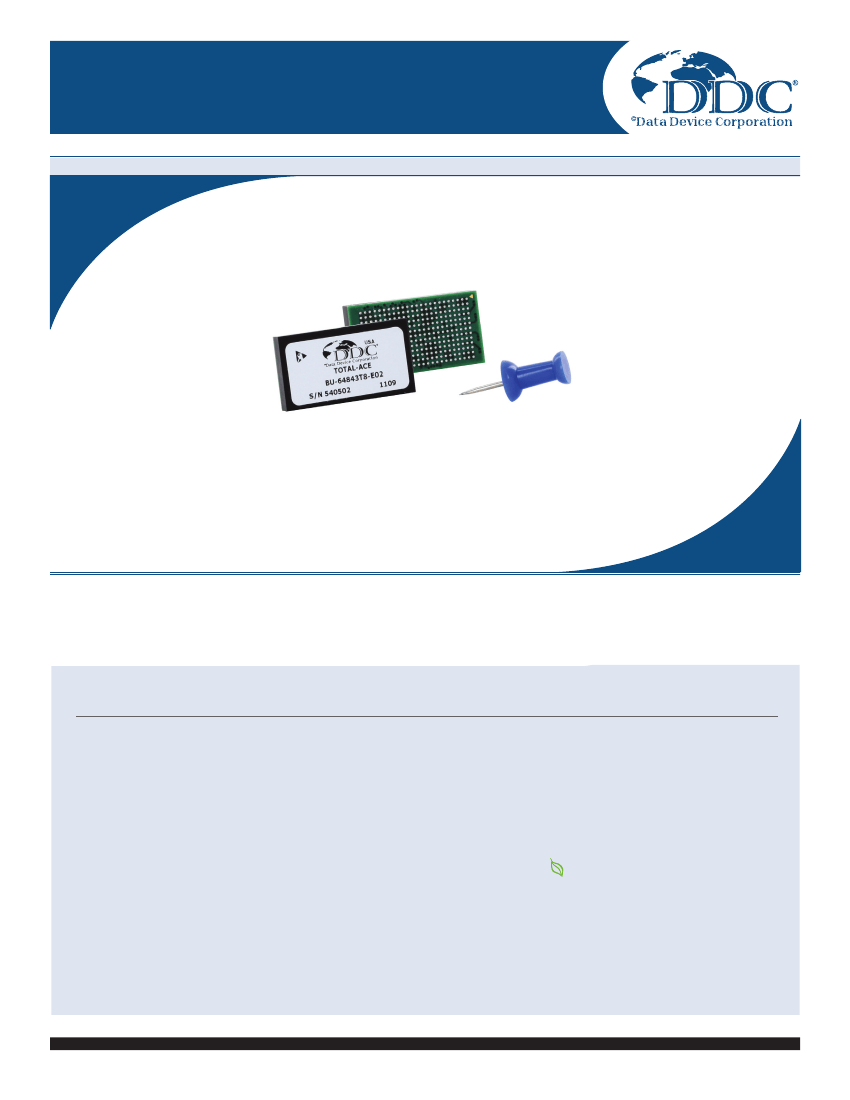

Total-ACE

Complete MIL-STD-1553 Solution

Model: BU-648X3T/U/H/i8

Data Sheet

Save board space and simplify your 1553 design and layout with the world's first fully integrated MIL-STD-1553

component, complete with 1553 protocol, memory, transceivers, and isolation transformers—all in one small plastic

BGA package with direct and/or transformer coupled 1553 connections inside.

Features

•1

Dual Redundant MIL-STD-1553 Channel

BC, RT, MT or RT/MT Functionality

Direct and/or Transformer Coupled

Supports MIL-STD-1553 A/B & MIL-STD-1760

4K x 16 or 64K x 16 RAM

Tx Inhibit Ball for MT Only Applications

BC Disable Ball for RT Only Applications

External RT Address Inputs

MIL-STD-1760 RT Auto Boot

Simple System RT Mode

• Small 312 Ball BGA Package:

- Transformer-Coupled Component

(0.6" x 1.1") (15.2 mm x 27.9 mm)

- Direct & Transformer-Coupled Component

(0.7" x 1.1")(17.8 mm x 27.9 mm)

- 0.185" (4.7 mm) Max Height

• DO-254 Certifiable

• Leaded and

RoHS

Compliant

RoHS Versions Available

• High-Level C Software Development Kits with

Sample Code for Windows

, Linux

, and VxWorks

• Graphical Interface to Generate Application C

Code

• Autonomous Built-In Self-Test

• 3.3 Volt Only Operation

For more information:

www.ddc-web.com/BU-64843T

DDC's Data Networking Solutions

MIL-STD-1553 | ARINC 429 | Fibre Channel

As the leading global supplier of data bus components, cards, and software solutions for the military, commercial,

and aerospace markets, DDC’s data bus networking solutions encompass the full range of data interface

protocols from MIL-STD-1553 and ARINC 429 to USB, and Fibre Channel, for applications utilizing a spectrum of

form-factors including PMC, PCI, Compact PCI, PC/104, ISA, and VME/VXI.

DDC has developed its line of high-speed Fibre Channel and Extended 1553 products to support the real-time

processing of field-critical data networking netween sensors, compute notes, data storage displays, and weapons

for air, sea, and ground military vehicles.

Whether employed in increased bandwidth, high-speed serial communications, or traditional avionics and ground

support applications, DDC's data solutions fufill the expanse of military requirements including reliability,

determinism, low CPU utilization, real-time performance, and ruggedness within harsh environments. Out use of

in-house intellectual property ensures superior mutli-generational support, independent of the life cycles of

commercial devices. Moreover, we maintain software compatibility between product generations to protect our

customers' investments in software development, system testing, and end-product qualification.

MIL-STD-1553

DDC provides an assortment of quality MIL-STD-1553 commercial, military, and COTS grade cards and

components to meet your data conversion and data interface needs. DDC supplies MIL-STD-1553 board level

products in a variety of form factors including AMC, USB, PCI, cPCI, PCI-104, PCMCIA, PMC, PC/104, PC/104-

Plus, VME/VXI, and ISAbus cards. Our 1553 data bus board solutions are integral elements of military, aerospace,

and industrial applications. Our extensive line of military and space grade components provide MIL-STD-1553

interface solutions for microprocessors, PCI buses, and simple systems. Our 1553 data bus solutions are

designed into a global network of aircraft, helicopter, and missle programs.

ARINC 429

DDC also has a wide assortment of quality ARINC-429 commercial, military, and COTS grade cards and

components, which will meet your data conversion and data interface needs. DDC supplies ARINC-429 board

level products in a variety of form factors including AMC, USB, PCI, PMC, PCI-104, PC/104 Plus, and PCMCIA

boards. DDC's ARINC 429 components ensure the accurate and reliable transfer of flight-critical data. Our 429

interfaces support data bus development, validation, and the transfer of flight-critical data aboard commercial

aerospace platforms.

Fibre Channel

DDC has developed its line of high-speed Fibre Channel network access controllers and switches to support the

real-time processing demands of field-critical data networking between sensors, computer nodes, data storage,

displays, and weapons, for air, sea, and ground military vehicles. Fibre Channel's architecture is optimized to

meet the performance,reliability, and demanding environmental requirements of embedded, real time, military

applications, and designed to endure the multi-decade life cycle demands of military/aerospace programs.
