Terminals
Quick turn delivery available on standard terminal types.
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com

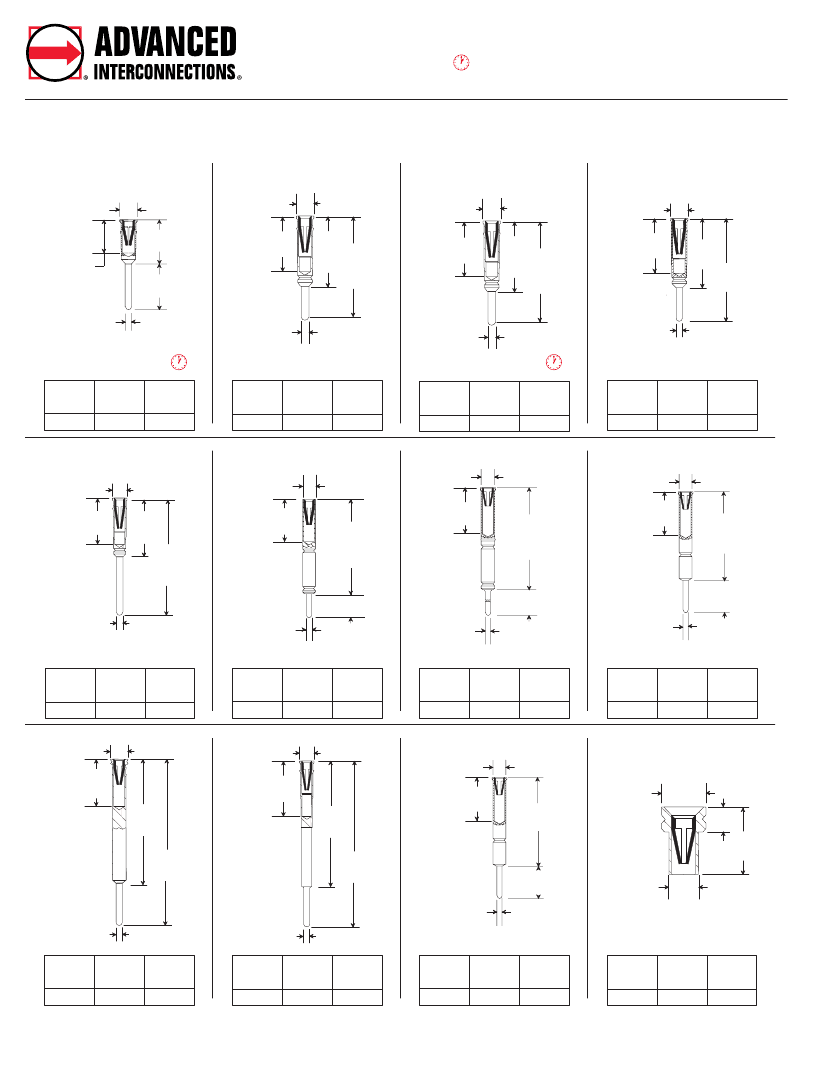

Contact Acceptance Range .016" (.41mm) - .022" (.56mm) Dia. or .010" (.25mm) x .018" (.46mm) Rectangular Lead
.042 Dia.
(1.07)
.105
(2.67)
.080
(2.03)
.110
(2.79)
.018 Dia.
(.46)
.042 Dia.
(1.07)
.041 Dia.
(1.04)
.042 Dia.
(1.07)
.130
(3.30)
.245
(6.22)
.130
(3.30)
.165
(4.19)
.225
(5.72)
.130
(3.30)
.165
(4.19)
.165
(4.19)
.245
(6.22)
.018 Dia.
(.46)
.018 Dia.
(.46)
.015 Dia.
(.38)
Type
-347
Part
Number
4040-1
Contact
Group
A
Type
-586
Part
Number
4793
Contact
Group
A
Type
-168
Part
Number
3655
Contact
Group
A
Type
-386
Part
Number
4179
Contact
Group
A
.042 Dia.
(1.07)
.130
(3.30)
.177
(4.50)
.354
(9.00)
.042 Dia.
(1.07)
.125
(3.18)
.278
(7.06)
.042 Dia.
(1.07)
.125
(3.18)
.278
(7.06)
.042 Dia.
(1.07)
.165
(4.19)
.373
(9.47)
.070
(1.78)
.018 Dia.
(.46)
.015 Dia.
(.38)
.015 Dia.
(.38)
.125
(3.18)
.015 Dia.
(.38)
.058
(1.47)
Type
-595
Part
Number
4858
Contact
Group
A
Type
-205
Part
Number
2403
Contact
Group
A
Type
-474
Part
Number
4038
Contact
Group
A
Type
-425
Part
Number
3503-2
Contact
Group
A
.050 Dia.
(1.27)
.140
(3.56)
.355
(9.02)
.490
(12.45)
.041 Dia.
(1.04)
.165
(4.19)
.373
(9.47)
.494
(12.55)
.042 Dia.
(1.07)
.165
(4.19)
.373
(9.47)
.058 Dia.
(1.47)
.031
(.79)
.085
(2.16)
.120
(3.05)
.015 Dia.
(.38)
.038 Dia.
(.97)
.018 Dia.
(.46)
.018 Dia.
(.46)
Type
-496
Part
Number
4462
Contact
Group
A
Type
-505
Part
Number
4511
Contact
Group
A
Type
-269
Part
Number
3503-1
Contact
Group
A
Type
-550
Part
Number
4659
Contact
Group
A
Material:
Terminal: Brass - Copper Alloy (C36000), ASTM-B-16
Contact: Beryllium Copper - Copper Alloy (C17200), ASTM-B-194
Plating:
Contact: G = Gold/Nickel
T = Tin-Lead/Nickel
Gold: per MIL-G-45204
Tin-Lead: per MIL-P-81728
Nickel: per QQ-N-290
Note:
Pins with "V" groove in head may be supplied in Peel-A-Way
®
Terminals not drawn to scale.
Page 128
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
