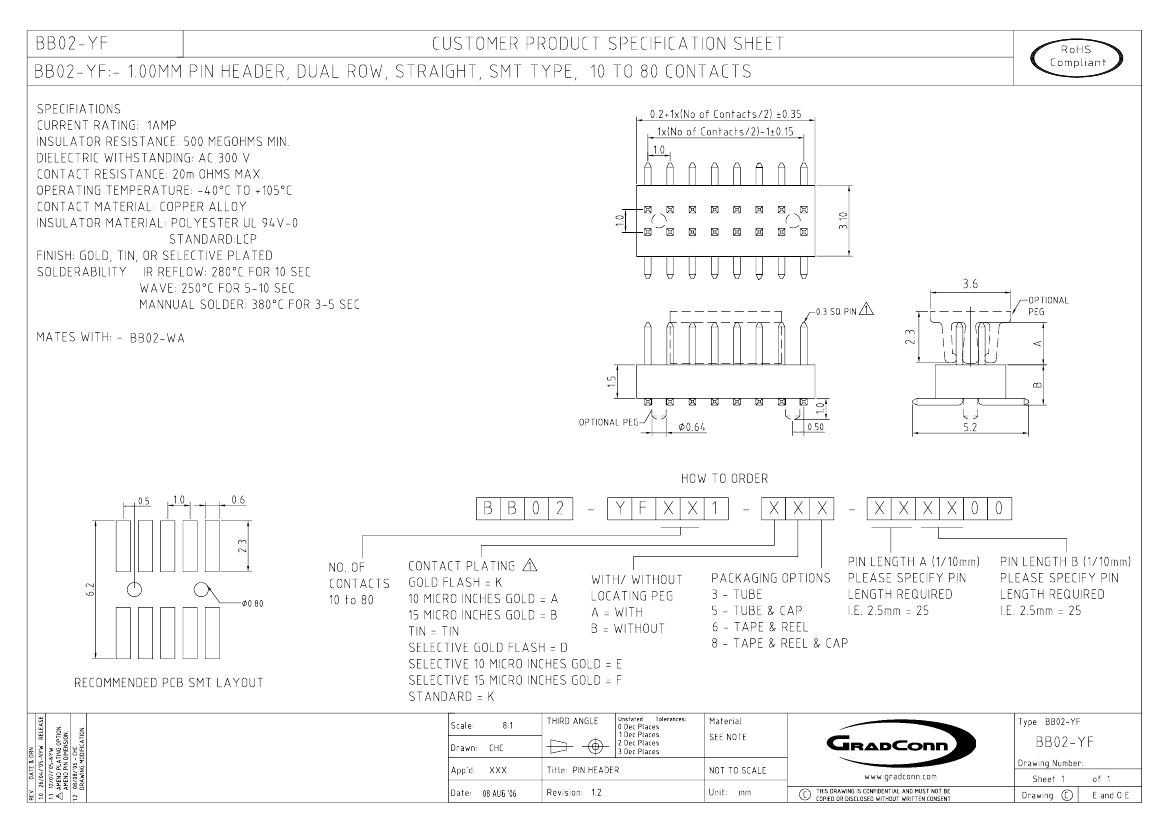

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle
| Parameter Name | Attribute value |
| Maker | GradConn Ltd |
| Reach Compliance Code | unknown |
| Other features | ROHS COMPLIANT, TUBE PACKAGING |
| body width | 0.122 inch |
| subject depth | 0.098 inch |
| body length | 0.402 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 300VAC V |
| Insulation resistance | 500000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | BB02-YF |
| Plug contact pitch | 0.039 inch |
| Match contact row spacing | 0.039 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.9116 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.9906 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 20 |
| Base Number Matches | 1 |
| BB02-YF201-KB3-252500 | BB02-YF181-KB3-252500 | BB02-YF241-KB3-252500 | BB02-YF181-KA3-252500 | BB02-YF161-KA3-252500 | |
|---|---|---|---|---|---|
| Description | Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle | Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle | Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle | Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle | Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle |
| Maker | GradConn Ltd | GradConn Ltd | GradConn Ltd | GradConn Ltd | GradConn Ltd |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | ROHS COMPLIANT, TUBE PACKAGING | ROHS COMPLIANT, TUBE PACKAGING | ROHS COMPLIANT, TUBE PACKAGING | ROHS COMPLIANT, TUBE PACKAGING | ROHS COMPLIANT, TUBE PACKAGING |
| body width | 0.122 inch | 0.122 inch | 0.122 inch | 0.122 inch | 0.122 inch |
| subject depth | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch |
| body length | 0.402 inch | 0.362 inch | 0.48 inch | 0.362 inch | 0.323 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU | AU | AU | AU | AU |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 300VAC V | 300VAC V | 300VAC V | 300VAC V | 300VAC V |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | BB02-YF | BB02-YF | BB02-YF | BB02-YF | BB02-YF |
| Plug contact pitch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch |
| Match contact row spacing | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.9116 mm | 3.9116 mm | 3.9116 mm | 3.9116 mm | 3.9116 mm |
| Plating thickness | FLASH inch | FLASH inch | FLASH inch | FLASH inch | FLASH inch |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.9906 mm | 0.9906 mm | 0.9906 mm | 0.9906 mm | 0.9906 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 20 | 18 | 24 | 18 | 16 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
