DM1-168-VCA9-95/1L datasheet, PDF

Datasheet> All Categories > The connector> The connector> DM1-168-VCA9-95/1L

DM1-168-VCA9-95/1L: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

DM1-168-VCA9-95/1L Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

DM1-168-VCA9-95/1L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.299 inch
subject depth	0.587 inch
body length	5.827 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	2100VAC V
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	DM
Plug contact pitch	0.05 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.075 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.132 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	168
Base Number Matches	1

Preview

Download Datasheet

View All

DM - Series DIMM Sockets

vertical type

168-pin

DIMM sockets are only available as long latch type

( Module locking extractors ).

Insertion & extraction of the module can be made without any tools.

Positive polarization prevents wrong insertion of the module.

Contacts are designed with an anti-overstress feature for long

contact life. Selective Gold/Tin plated. Gold only in contact area.

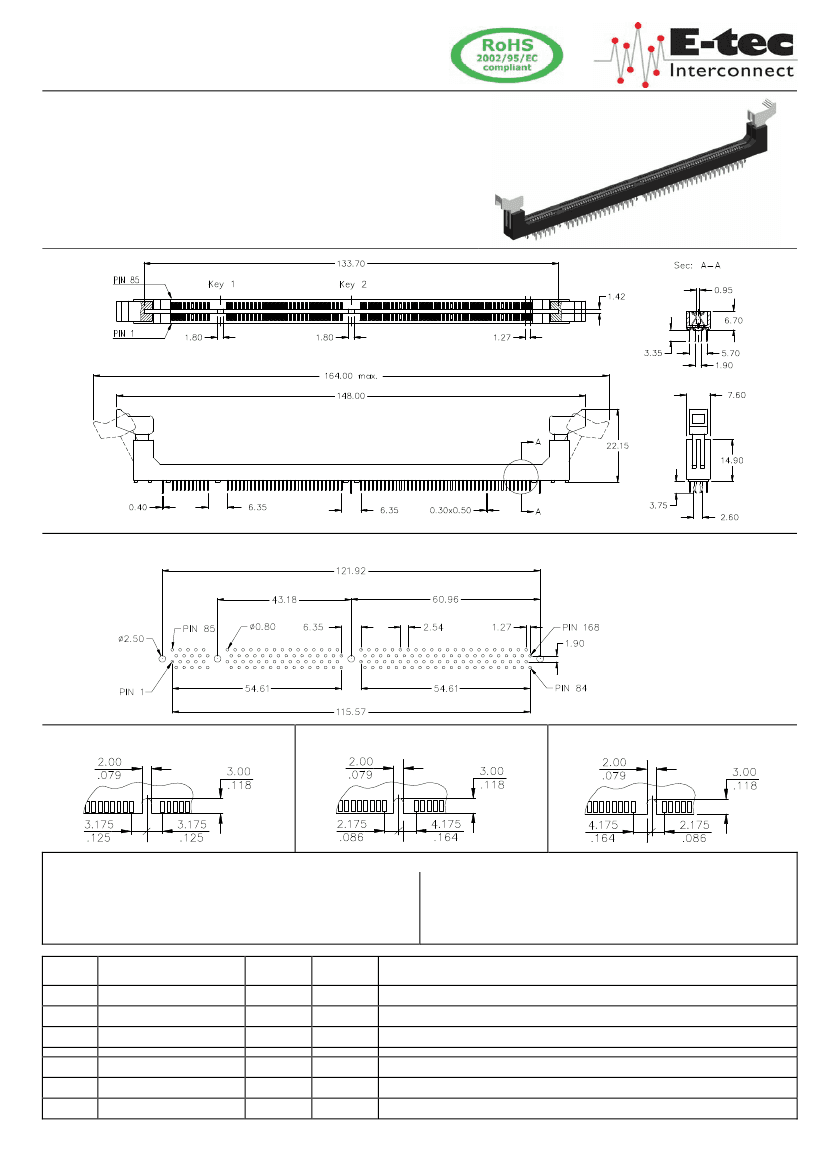

PC Board hole layout

Module keying Type "A"

Module keying Type "B"

Module keying Type "C"

Specification

Current rating

Contact resistance

Breakdown voltage

Insulation resistance

Capacitance

1 A max., 250V AC

30 m max.

1,5 KV

RMS

max.

M min.

1 pF max.

Key

No. 1

Type "A"

Type "B"

Type "C"

Type "A"

Type "B"

Type "C"

Key

No. 2

Type "B"

Type "A"

Operating temperature

Insulator

(RoHS compliant))

Contact

(RoHS compliant))

Plating

-55° C to +105° C min.

high temp plastic UL 94 V-0

Copper Alloy

Au / Sn

(leadfree)

over Ni

168 pin

Socket Type

DRAM 5 Volt

SDRAM 5 Volt

UDRAM 5 Volt

DRAM 3,3 Volt

SDRAM 3,3 Volt

UDRAM 3,3 Volt

Ordering Code

DM1 – 168 – VAB9 –

95/1L

DM1 – 168 – VBB9 –

95/1L

DM1 – 168 – VCB9 –

95/1L

DM1 – 168 – VAA9 –

95/1L

DM1 – 168 – VBA9 –

95/1L

DM1 – 168 – VCA9 –

95/1L
