BL2-040-S460-55/1

Description
Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size216KB,1 Pages
ManufacturerE-tec Interconnect Ltd.
Environmental Compliance
Download Datasheet Parametric View All

BL2-040-S460-55/1 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

BL2-040-S460-55/1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerE-tec Interconnect Ltd.
Reach Compliance Codecompliant
body width0.197 inch
subject depth0.181 inch
body length1 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee4
Manufacturer's serial numberBL2
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts40
Base Number Matches1
1.27mm pitch
-THT-
Female Header
dual row
1.27mm x 2.54mm
S
460

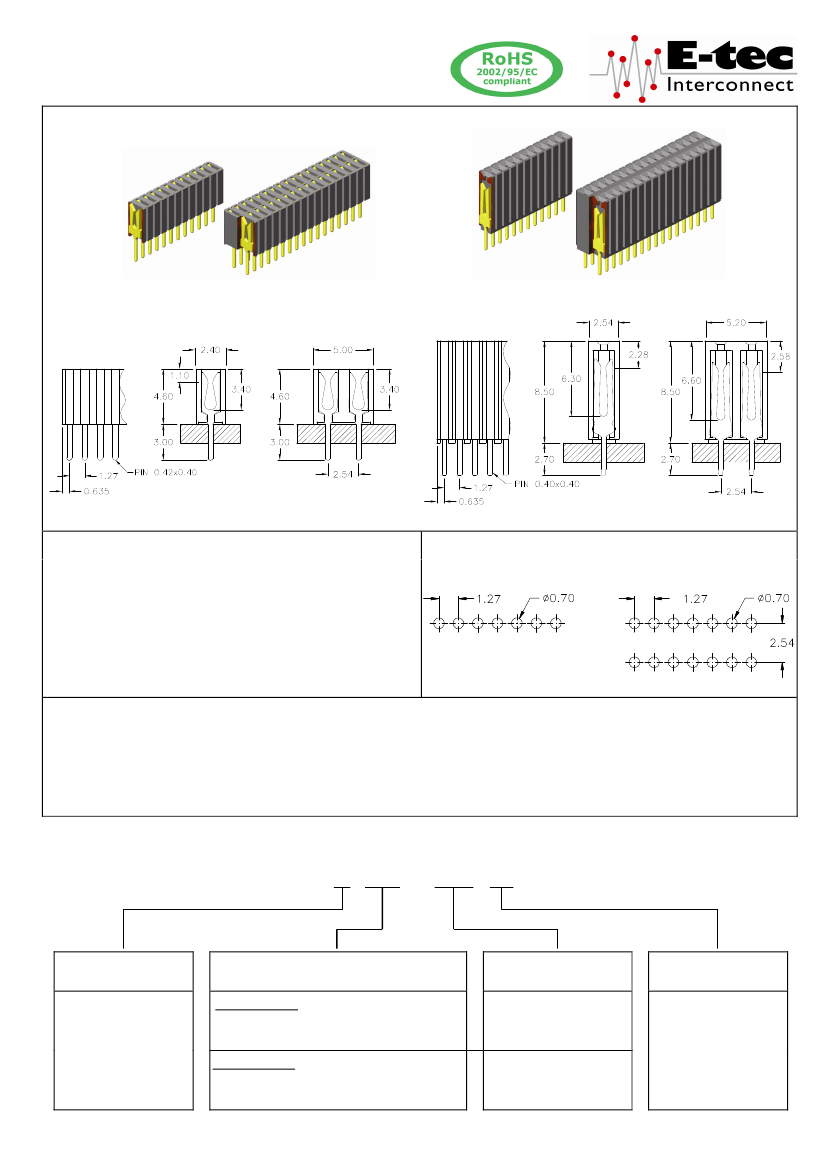

SPECIFICATIONS
Current rating
Insulator resistance
Contact resistance
Withstanding voltage
Operating temperature
Contact material
(RoHS compliant)
Insulator material
(RoHS compliant)
1A
1000 MΩ min.
20 mΩ max.
500 V AC
- 40°C to +105°C
Phosphor Bronze
LCP
UL 94 V-0
S
850
PCB
Hole Layout
APPLICATION
AND
FEATURES
Standard & low profile types
Hi-rel fork contact design
Mates with 0.46mm square or round Pin Header
How to order
BL x - xxx - S xxx -
55
/1
Rows
Nbr of contacts
version
460
single row
dual row
version
850
single row
dual row
Version
(height above board)
Plating
1
2
= single row
= dual row
=
=
=
=
003
to
040
006
to
080
003
to
035
006
to
070
460
=
4.60 mm
55
=
gold
850
=
8.50 mm
Other platings on
request
