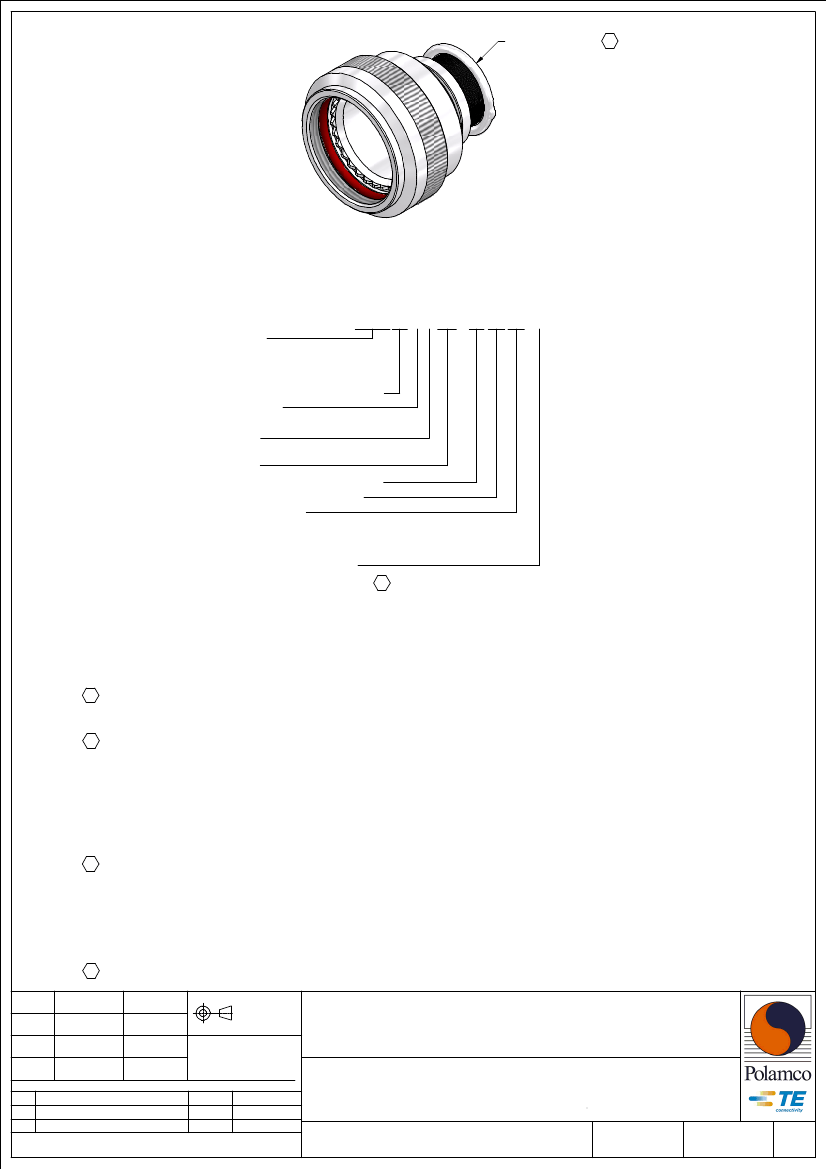

TINEL LOCK RING 3
CODE 40 - TINEL-LOCK BACKSHELL
TXR40AB00-1608AI-S
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
DASH NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
REFER TO CH00-0250-008 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR40AB00-1206).
RING SHALL BEAR NO MARKING.
5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-DTL-38999, SERIES III AND IV, CLASS C, F, K, AND W,
D38999/20, /24, /26, /40, /46 AND /47 CONNECTORS, AND WHEN SO
MATED SHALL PROVIDE A WATER-TIGHT SEAL MEETING THE REQUIREMENTS OF
MIL-C-85049, PARA. 3. 5. 7.
7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
04/12/2014
04/12/2014
04/12/2014
15/06/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-002200
L
REVISED PER ECO-17-009011
DATE
11.02.15
21.06.17
APPROVED
H.SMITH
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
D.JONES
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
TXR40
L
1
ALTERNATIVE
PROFILE
26,50
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
16,80
`
0,50
26,50
ALTERNATIVE
PROFILE
A THREAD
A THREAD
ØK
ØB
ØS
ØZ
ØY
ØB
XXXX
PART MARK
HERE
PART MARK
HERE
XXXX
5

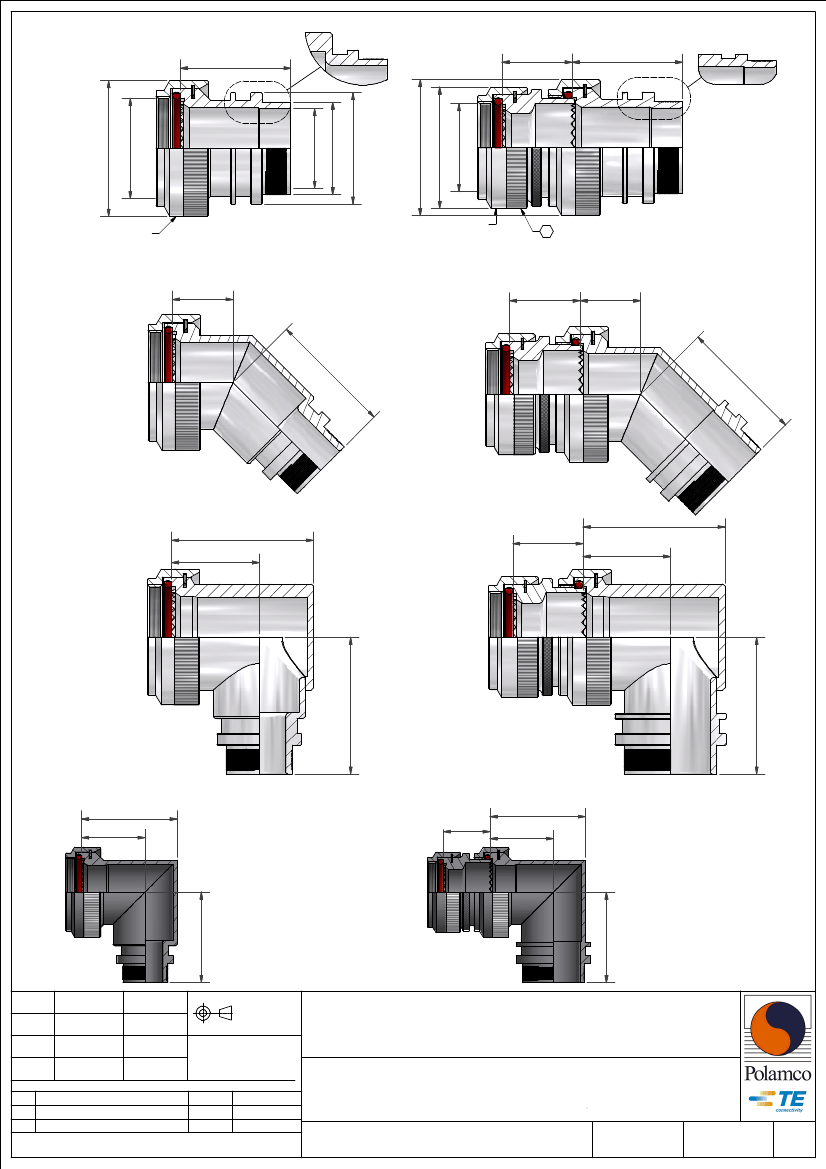

STRAIGHT BACKSHELL - TYPE 1
C
STRAIGHT BACKSHELL - TYPE 2
16,80
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
H
W
T
16,80
`
0,50
M
E
90° BACKSHELL - TYPE 1
W
T
H
16,80
`
0,50
M
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DATE
04/12/2014
04/12/2014
04/12/2014
15/06/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-002200
L
REVISED PER ECO-17-009011
DATE
11.02.15
21.06.17
APPROVED
H.SMITH
D.JONES
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
J
SHT
TXR40
L
2

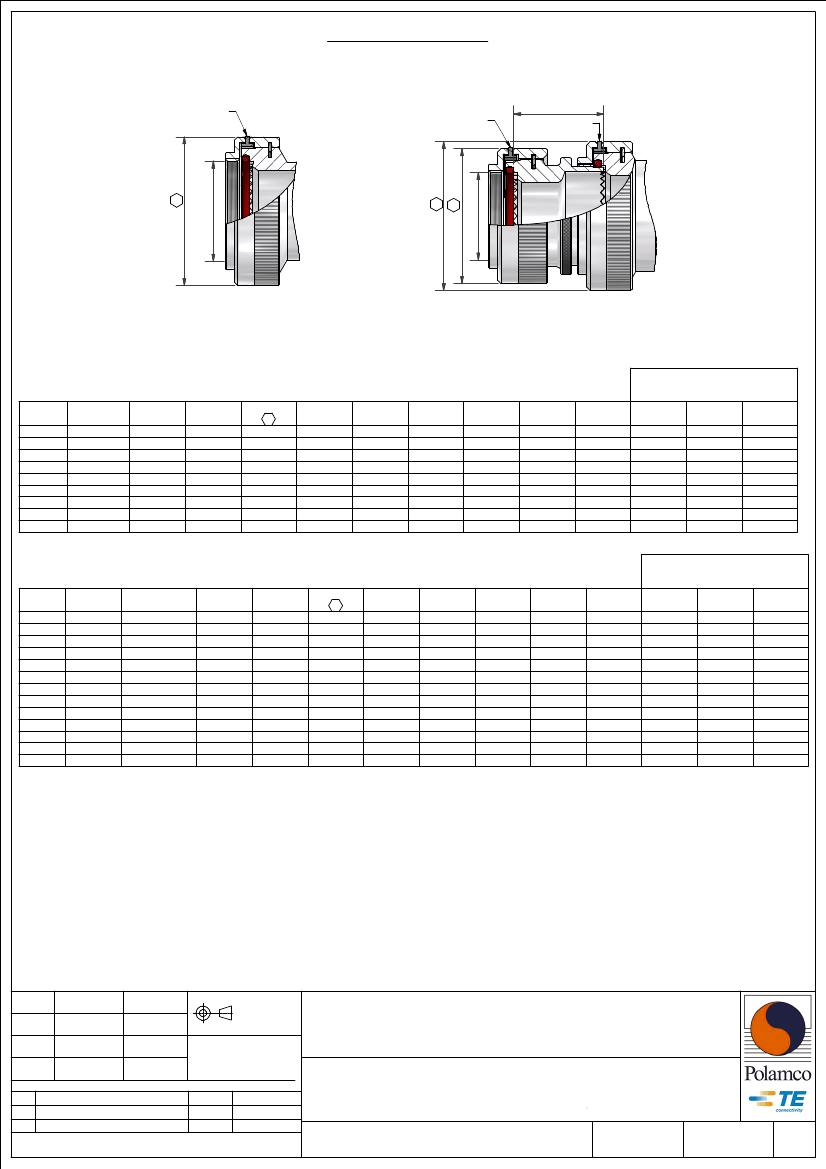

MODIFICATION S
(SELF-LOCKING COUPLING NUT)
21,60
`
0,50
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
A THREAD
BACKSHELL - TYPE 1
A THREAD
ØB 7
7
ØK
ØB 7
BACKSHELL - TYPE 2
TABLE 1
ORDER
NO.
08
10
12
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
SHELL SIZE
A THREAD
COM'L / MIL
9/A
M12 × 1.0
11 / B
M15 × 1.0
13 / C
M18 × 1.0
15 / D
M22 × 1.0
M25 × 1.0
17 / E
19 / F
M28 × 1.0
21 / G
M31 × 1.0
M34 × 1.0
23 / H
25 / J
M37 × 1.0
ØB
MAX
18,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
ØB MAX
7
21,5
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
MAX
ENTRY
04
07
08
10
12
14
16
18
20
C
±0,5
12,0
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
D
±0,5
26,8
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
W
±0,5
21,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
T
±0,5
14,0
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
E
±0,5
26,20
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
W
±0,5
21,2
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
T
±0,5
16,3
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
E
±0,5
26,4
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
± 0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
21,0
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
ØK MAX
7
NA
24,6
24,6
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
50,0
56,0
F
±0,5
NA
12,5
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
27,5
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
24,0
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
15,5
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
27,95
27,95
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
H
±0,5
NA
24,3
24,3
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
M
±0,5
NA
17,2
17,2
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
J
±0,5
NA
28,2
28,2
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
04/12/2014
04/12/2014
04/12/2014
15/06/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-002200
L
REVISED PER ECO-17-009011
DATE
11.02.15
21.06.17
APPROVED
H.SMITH
D.JONES
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
TXR40
L
3
