381-43250-3008

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle
CategoryThe connector    The connector
File Size92KB，1 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric Compare View All

381-43250-3008 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle

381-43250-3008 Parametric

Parameter NameAttribute value
MakerThomas & Betts Corporation
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTANDARD: DIN 41612
body width0.583 inch
subject depth0.87 inch
body length3.7 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage500VDC V
Durability400 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number38
Plug contact pitch0.2 inch
Match contact row spacing0.15 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .099-.111
Installation option 2NON-THREADED
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameZ,B
PCB row number3
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)5.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

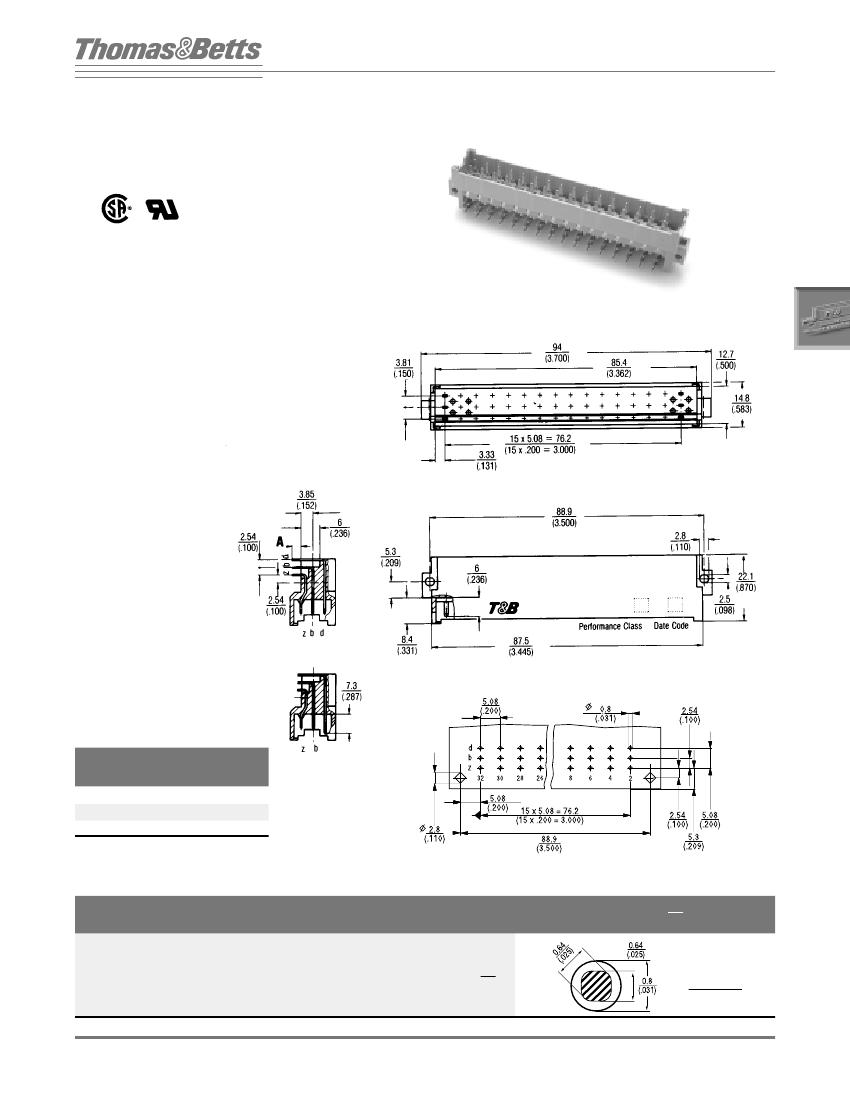

Two–Piece Connectors
Heavy Duty Power DIN
TYPE F
MALE CONNECTOR
SERIES 38
LR92984
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
Glass filled thermoplastic
rated UL 94V-0
C
OLOR
:
Gray
C
ONTACTS
:
Copper alloy, nickel plate overall,
gold finish in contact zone. Tin/lead on solder
tails, tin/lead or gold on posts.
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
5.5 Amps per pin
I
NSULATION
R
ESISTANCE
:
>1 x 10
9
0hms
D
IELECTRIC
S
TRENGTH
:
> 500 VDC at sea level
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55˚C TO 125°C
Extended length contacts available.
Consult factory for details.
Recommended Printed Circuit Board Layout
X
1
8
4
PERFORMANCE LEVEL
level 1 - 500 mating cycles
level 2 - 400 mating cycles
level 3 - 50 mating cycles
Ordering Information
NO. OF CONTACTS
CONTACT LOADING
CATALOG NO.
SPECIFY X
381-43250-300X
381-43240-300X
381-44830-300X
TERMINATION STYLE
MM
(INCHES)
32
32
48
z, b
z, d
z, b, d
2, 4, 6–16
2, 4, 6–16
2, 4, 6–16
A = 2.9
(.114)
Solder Post
0.64 x 0.64
(.025 x .025)
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
259

381-43250-3008 Related Products

381-43250-3008 381-43240-3008 381-43240-3001 381-43250-3001 381-43240-3004 381-43250-3004 381-44830-3001 381-44830-3004 381-44830-3008
Description Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612
body width 0.583 inch 0.583 inch 0.583 inch 0.583 inch 0.583 inch 0.583 inch 0.583 inch 0.583 inch 0.583 inch
subject depth 0.87 inch 0.87 inch 0.87 inch 0.87 inch 0.87 inch 0.87 inch 0.87 inch 0.87 inch 0.87 inch
body length 3.7 inch 3.7 inch 3.7 inch 3.7 inch 3.7 inch 3.7 inch 3.7 inch 3.7 inch 3.7 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI
Contact completed and terminated TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance YES YES YES YES YES YES YES YES YES
Dielectric withstand voltage 500VDC V 500VDC V 500VDC V 500VDC V 500VDC V 500VDC V 500VDC V 500VDC V 500VDC V
Durability 400 Cycles 400 Cycles 500 Cycles 500 Cycles 50 Cycles 50 Cycles 500 Cycles 50 Cycles 400 Cycles
Filter function NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color GRAY GRAY GRAY GRAY GRAY GRAY GRAY GRAY GRAY
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0
MIL compliance NO NO NO NO NO NO NO NO NO
Manufacturer's serial number 38 38 38 38 38 38 38 38 38
Plug contact pitch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch 0.2 inch
Match contact row spacing 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO
Installation option 1 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111
Installation option 2 NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Loaded row name Z,B Z,D Z,D Z,B Z,D Z,B Z,B,D Z,B,D Z,B,D
PCB row number 3 3 3 3 3 3 3 3 3
Number of rows loaded 2 2 2 2 2 2 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 5.5 A 5.5 A 5.5 A 5.5 A 5.5 A 5.5 A 5.5 A 5.5 A 5.5 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.11 inch 0.11 inch 0.11 inch 0.11 inch 0.11 inch 0.11 inch 0.11 inch 0.11 inch 0.11 inch
Terminal pitch 5.08 mm 5.08 mm 5.08 mm 5.08 mm 5.08 mm 5.08 mm 5.08 mm 5.08 mm 5.08 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 32 32 32 32 32 32 48 48 48
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1 1 1
Maker Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation - Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation
