3961H-02W-L: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Locking; CategoryThe connector The connector; File Size2MB，3 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

3961H-02W-L Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Locking

3961H-02W-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.303 inch
subject depth	0.63 inch
body length	0.332 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3961
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	2
Base Number Matches	1

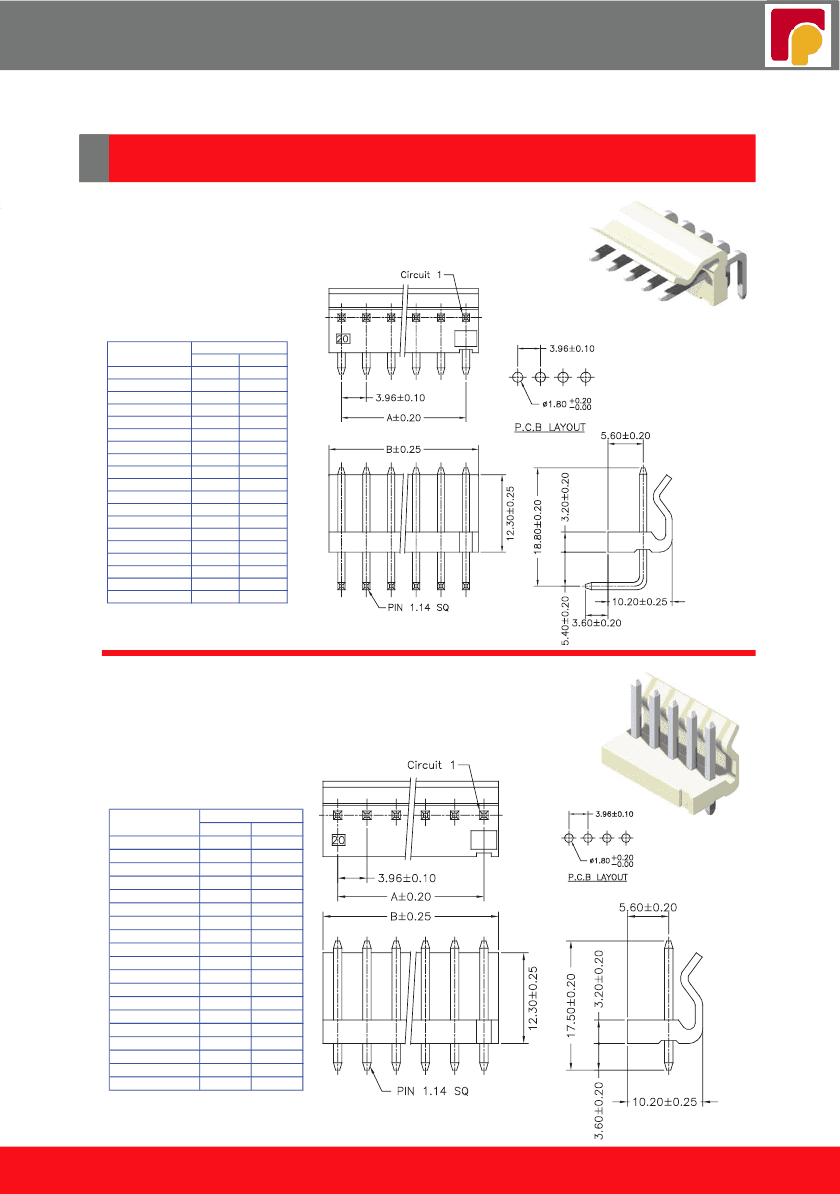

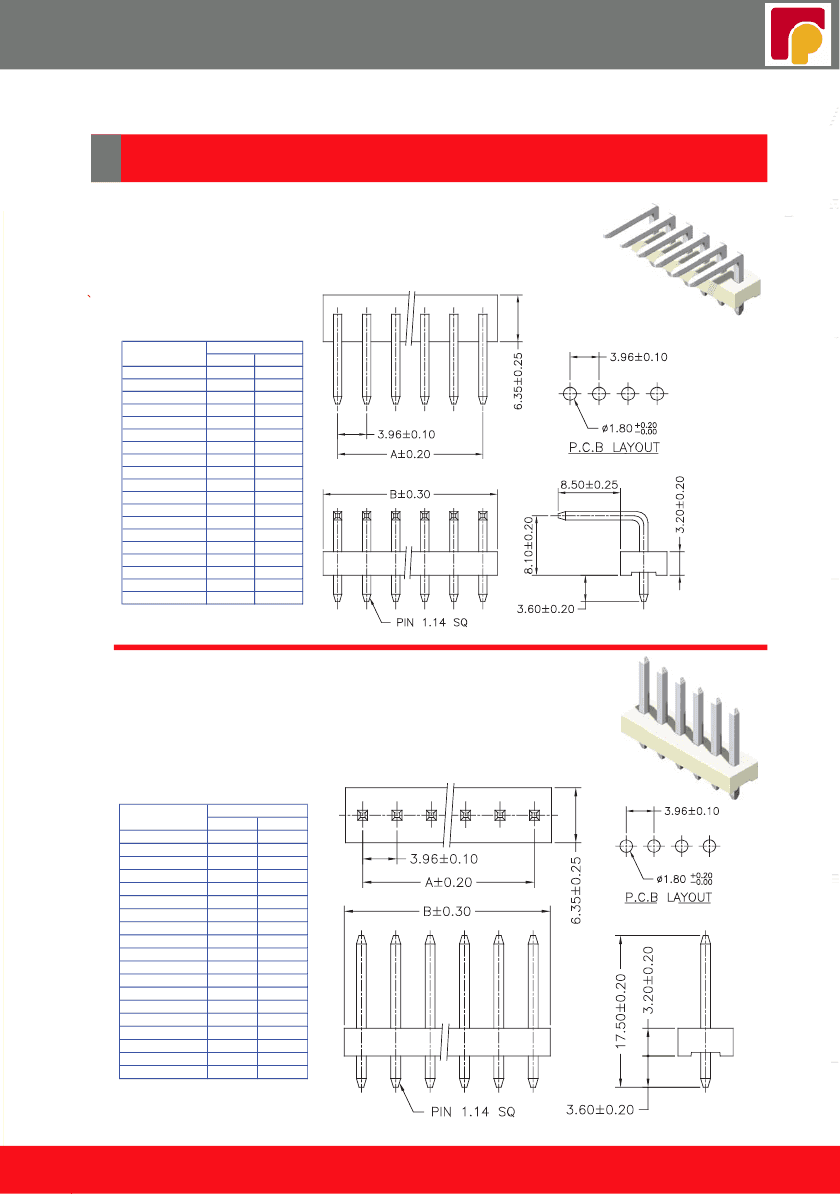

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel:+49 (0) 5741 23661-0

Fax:+49 (0) 5741 23661-20

Ratioplast-Electronics

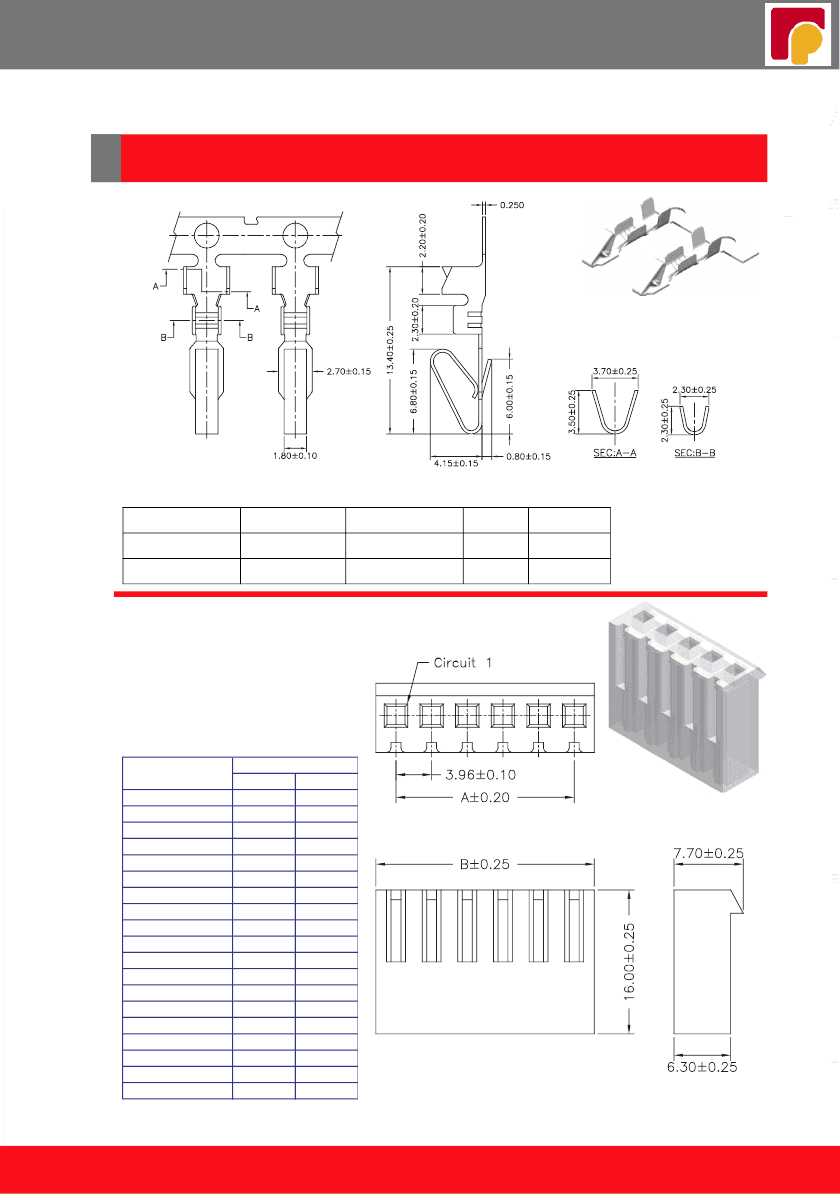

3.96mm Terminal / Housing

Part No.:3961-T-L

Part No.

3961-TTB-L

3961-TGB-L

Specifications

Insulation O.D. Material

Finish

Brass Tin Plated

AWG#18-#24 2.80mm(max)

Brass

Gold Plated

Wire Range

Current Rating: 7A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1500V AC/minute

Material: Nylon 66,UL94V-2

Part No.

3961H-02W-L

3961H-03W-L

3961H-04W-L

3961H-05W-L

3691H-06W-L

3961H-07W-L

3961H-08W-L

3961H-09W-L

3961H-10W-L

3961H-11W-L

3961H-12W-L

3961H-13W-L

3961H-14W-L

3961H-15W-L

3961H-16W-L

3961H-17W-L

3961H-18W-L

3961H-19W-L

3961H-20W-L

Dimensions

A

B

3.96

8.43

7.92

12.39

11.88

16.35

15.84

20.31

19.80

24.27

23.76

28.23

27.72

32.19

31.68

36.15

35.64

40.11

39.60

44.07

43.56

48.03

47.52

51.99

51.48

55.95

55.44

59.91

59.40

63.87

63.36

67.83

67.32

71.79

71.28

75.75

75.24

79.71

Part No.:3961H-XXW-L

www.amtek-co.com.tw

www.ratioplast.com
