MJ19-88AB: DescriptionTelecom and Datacom Connector; CategoryThe connector The connector; File Size396KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

MJ19-88AB Overview

Telecom and Datacom Connector

MJ19-88AB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Manufacturer's serial number	MJ
Base Number Matches	1

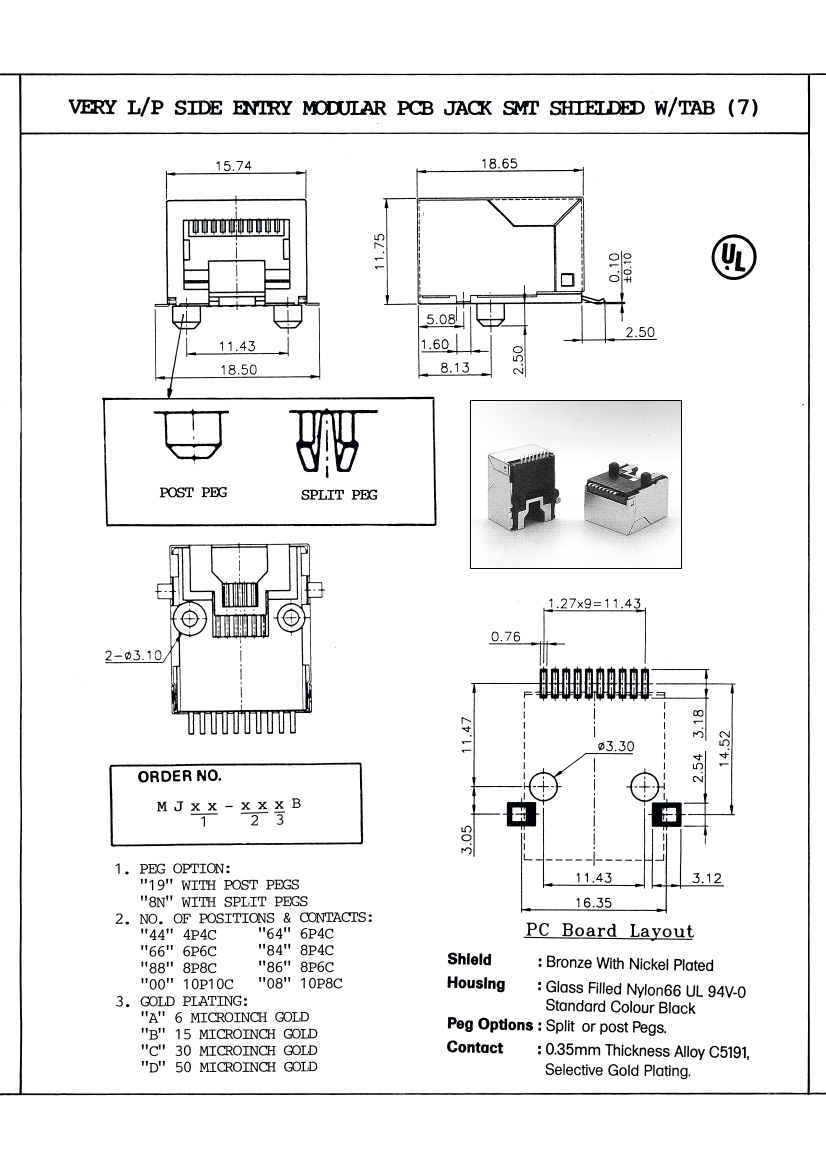

Preview

Download Datasheet

View All

-87-

MJ19-88AB Related Products

	MJ19-88AB	MJ19-44CB	MJ8N-86CB	MJ19-86AB	MJ19-86CB	MJ19-86DB
Description	Telecom and Datacom Connector	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Manufacturer's serial number	MJ	MJ	MJ	MJ	MJ	MJ
Maker	Ratioplast Electronics	-	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Board mount options	-	PEG	SPLIT BOARD LOCK	PEG	PEG	PEG
body width	-	0.463 inch	0.463 inch	0.463 inch	0.463 inch	0.463 inch
subject depth	-	0.734 inch	0.734 inch	0.734 inch	0.734 inch	0.734 inch
body length	-	0.62 inch	0.62 inch	0.62 inch	0.62 inch	0.62 inch
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	-	AU	AU	AU	AU	AU
Contact point gender	-	MALE	MALE	MALE	MALE	MALE
Contact material	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	-	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Insulator color	-	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	-	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	-	1	1	1	1	1
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	-	30u inch	30u inch	6u inch	30u inch	50u inch
Guideline	-	UL	UL	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	-	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	-	BRONZE	BRONZE	BRONZE	BRONZE	BRONZE
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	-	4	8	8	8	8
