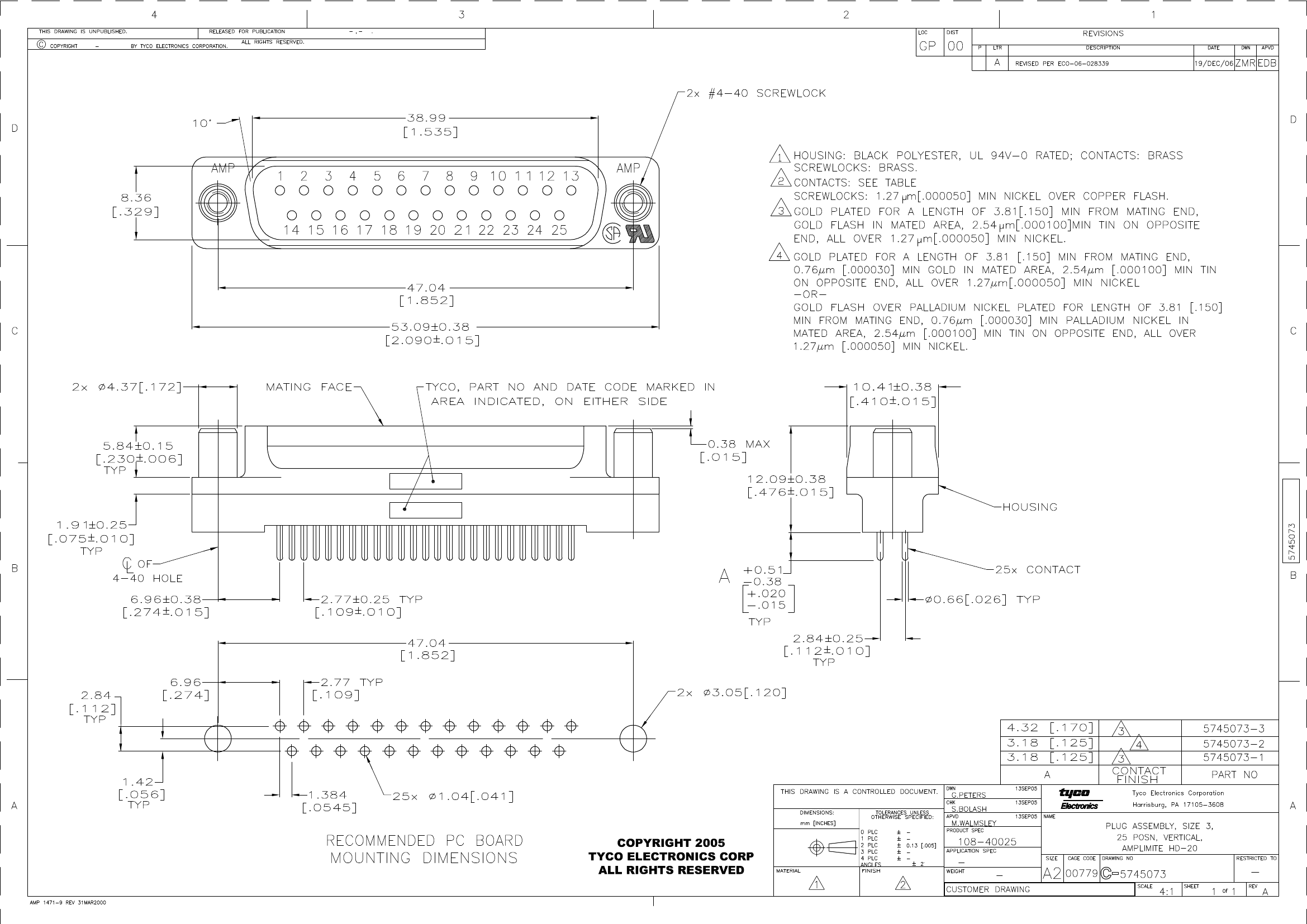

HD-20 PLUG 25P VERT FFSCRLK
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Objectid | 2034836242 |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 17 weeks 1 day |
| Samacsys Description | PCB D-Sub Connectors, Plug, Board-to-Board, 25 Position, 2.77 mm [.109 in] Centerline, 2 Row, Size 3, Round, Standard Profile, AMPLIMITE HD-20 |
| Samacsys Manufacturer | TE Connectivity |
| Samacsys Modified On | 2023-05-03 06:25:29 |
| YTEOL | 8.5 |
| Other features | AMPLIMITE |
| body width | 0.41 inch |
| subject depth | 0.246 inch |
| body length | 2.09 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Electromagnetic interference shielding | NO |
| empty shell | YES |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYESTER |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Power Connector Ratings | 6A |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | SCREWLOCKS |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of ports | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.84 mm |
| Panel mounting | NO |
| Plating thickness | 30u inch |
| Rated current (signal) | 6 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Housing size | 3/B |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.77 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
