XC3020-50CQ100B datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> XC3020-50CQ100B

XC3020-50CQ100B: DescriptionField Programmable Gate Array, 64 CLBs, 2000 Gates, 50MHz, 64-Cell, CMOS, CQFP100, CERAMIC, QFP-100; CategoryProgrammable logic devices Programmable logic; File Size402KB，18 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/

Download Datasheet Parametric Compare View All

XC3020-50CQ100B Overview

Field Programmable Gate Array, 64 CLBs, 2000 Gates, 50MHz, 64-Cell, CMOS, CQFP100, CERAMIC, QFP-100

XC3020-50CQ100B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	XILINX
Parts packaging code	QFP
package instruction	QFF, QFL100,.7SQ,25
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	MAX 64 I/OS; 256 FLIP-FLOPS
maximum clock frequency	50 MHz
Combined latency of CLB-Max	14 ns
JESD-30 code	S-CQFP-F100
JESD-609 code	e0
length	17.272 mm
Humidity sensitivity level	1
Configurable number of logic blocks	64
Equivalent number of gates	2000
Number of entries	64
Number of logical units	64
Output times	64
Number of terminals	100
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64 CLBS, 2000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Encapsulate equivalent code	QFL100,.7SQ,25
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	3.683 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	17.272 mm
Base Number Matches	1

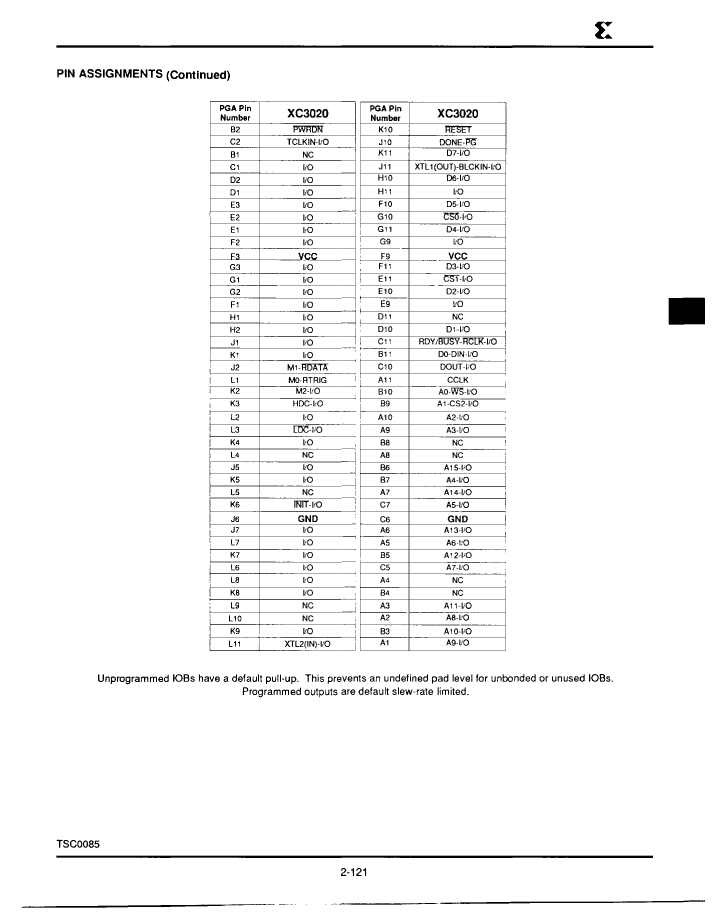

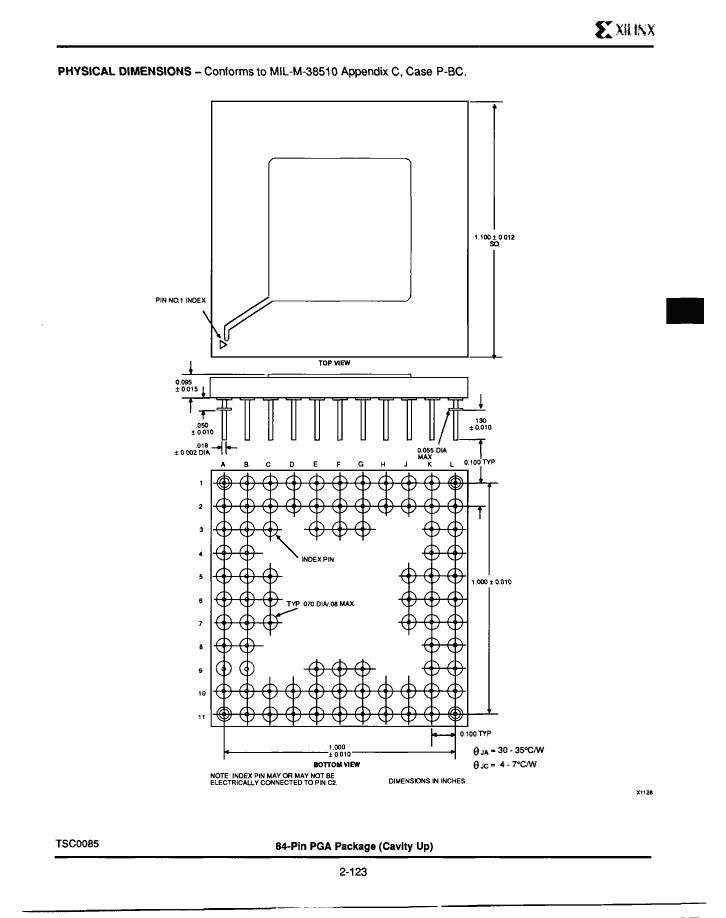

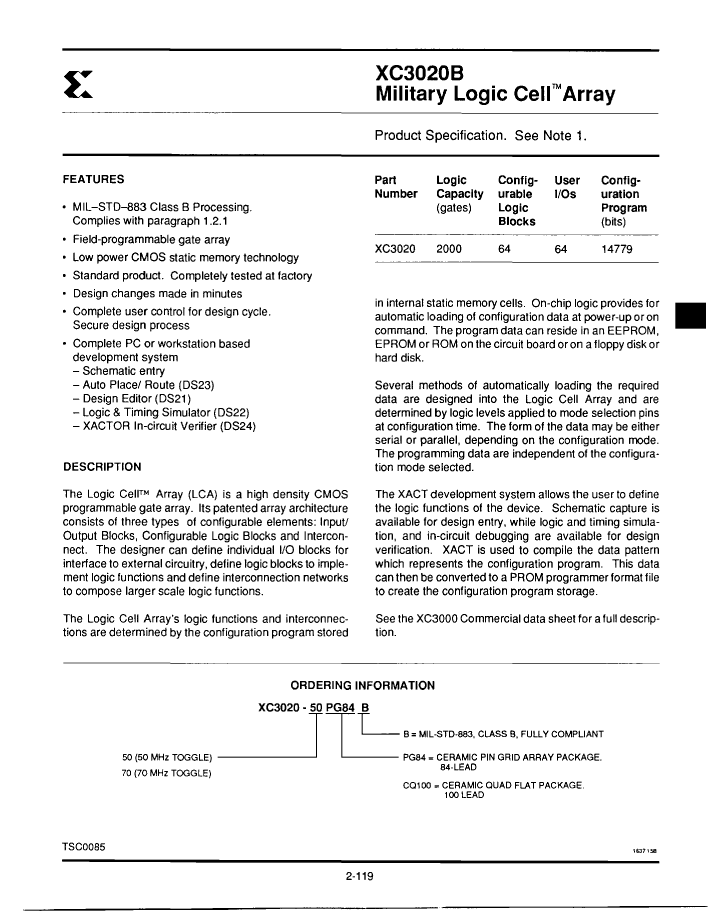

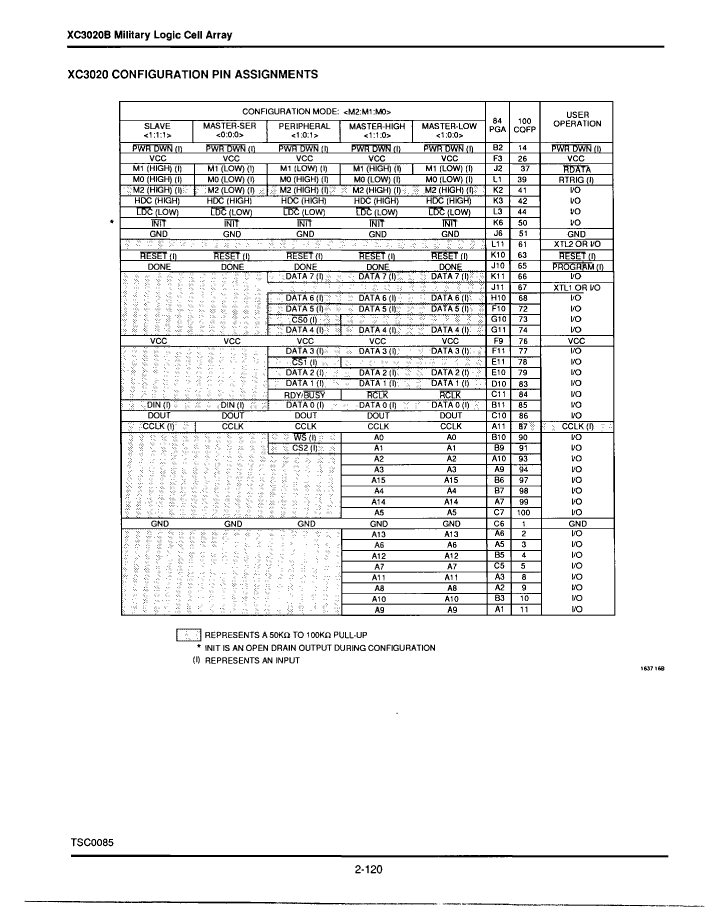

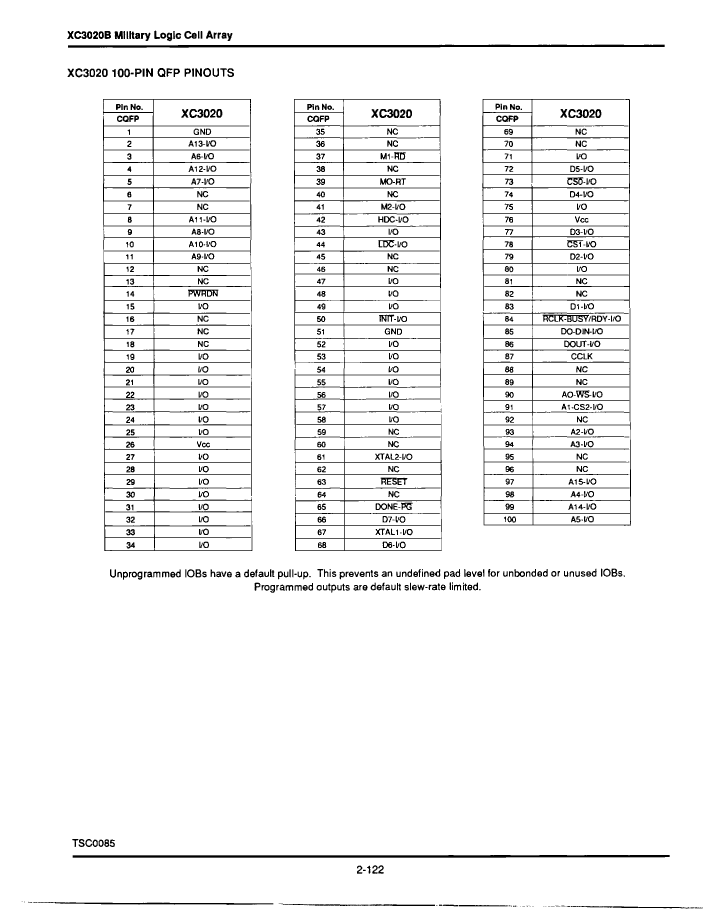

Preview

Download Datasheet

View All

XC3020-50CQ100B Related Products

	XC3020-50CQ100B	5962-8994801YC	5962-8994802YC	XC3020-70CQ100B
Description	Field Programmable Gate Array, 64 CLBs, 2000 Gates, 50MHz, 64-Cell, CMOS, CQFP100, CERAMIC, QFP-100	Field Programmable Gate Array, 64 CLBs, 2000 Gates, 16MHz, CMOS, QFP-100	Field Programmable Gate Array, 64 CLBs, 2000 Gates, 25MHz, CMOS, QFP-100	Field Programmable Gate Array, 64 CLBs, 2000 Gates, 70MHz, 64-Cell, CMOS, CQFP100, CERAMIC, QFP-100
Maker	XILINX	XILINX	XILINX	XILINX
Parts packaging code	QFP	QFP	QFP	QFP
package instruction	QFF, QFL100,.7SQ,25	QFF,	QFF,	QFF, QFL100,.7SQ,25
Contacts	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
maximum clock frequency	50 MHz	16 MHz	25 MHz	70 MHz
Combined latency of CLB-Max	14 ns	14 ns	9 ns	9 ns
JESD-30 code	S-CQFP-F100	S-XQFP-F100	S-XQFP-F100	S-CQFP-F100
JESD-609 code	e0	e4	e4	e0
length	17.272 mm	17.27 mm	17.27 mm	17.272 mm
Configurable number of logic blocks	64	64	64	64
Equivalent number of gates	2000	2000	2000	2000
Number of terminals	100	100	100	100
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	64 CLBS, 2000 GATES	64 CLBS, 2000 GATES	64 CLBS, 2000 GATES	64 CLBS, 2000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF	QFF	QFF	QFF
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	MIL-STD-883	MIL-STD-883	38535Q/M;38534H;883B
Maximum seat height	3.683 mm	3.68 mm	3.68 mm	3.683 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	GOLD	GOLD	TIN LEAD
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	17.272 mm	17.27 mm	17.27 mm	17.272 mm
Base Number Matches	1	1	1	-
