4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
3
2014
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT 2011
BY TE CONNECTIVITY
NC
NEW RELEASE PER E.O. P21121
REVISED PER ECO-14-016222
09DEC2011
31OCT2014
AM
JA
RDR
RDR
D
.63 .007
[16.00 0.20 ]
.035 .003
[0.90 0.10 ]
A
D
CAVITY I.D.
1.079 .009
[27.40 0.24 ]
C
.331
3
[
+.000
-.019
+ 0.00
8.40
-0.50
.642 .007
[16.30 0.20 ]
MATERIAL
DESIGNATOR
C
]
NW 8.5
3D VIEW
OPEN
.294 .005
[7.48 0.14 ]
.298 .005
[7.58 0.14 ]
B
SECTION A-A
TE INTERNAL PN
1028-041-0205
1028-041-0205
DEUTSCH PN
B
3D VIEW
CLOSED
TE Connectivity
NAME
3
2
A
1.
DIMENSION SHOWN INDICATES PROPER DEPTH TO
ASSEMBLE NOTED CONVOLUTE TUBE SIZE.
MATERIAL: PBT; COLOR: BLACK
THIS PART MATES WITH DTM06-2SX-XXXX AND DTMH06-2SX-XXXX PLUGS
WITH ANY MODIFICATION THAT DOES NOT INCLUDE AN END CAP.
(X = KEY ARR. A,B,C,D; XXXX = MODIFICATION)
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
INCHES[mm]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
11SEP2011
ALDO MALAGON
CHK
07DEC2011
BOB MILLIGAN
APVD
07DEC2011
STEVE BEARD
DWN
PRODUCT SPEC
APPLICATION SPEC
.025 [0.64]
0°30'0"
N/A
FINISH
WEIGHT
N/A
NOTES:
1470-19 (3/11)
2
Customer Drawing
A3
4AFU8
SIZE
CAGE CODE

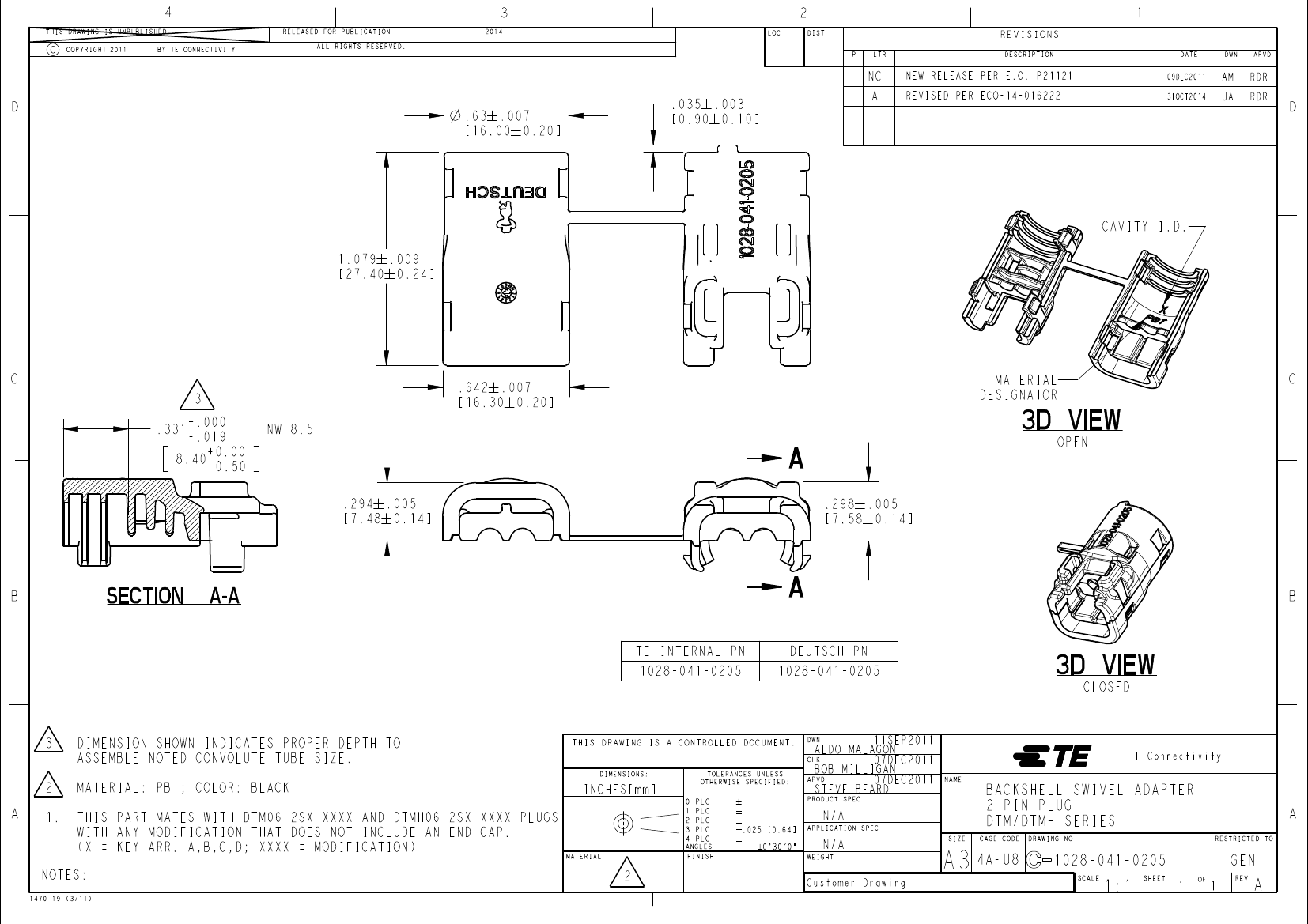

BACKSHELL SWIVEL ADAPTER
2 PIN PLUG
DTM/DTMH SERIES
DRAWING NO
A
RESTRICTED TO
1028-041-0205
SCALE
1:1
SHEET
GEN
1
OF
1
REV
A
