BUZ40B-E3044 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BUZ40B-E3044

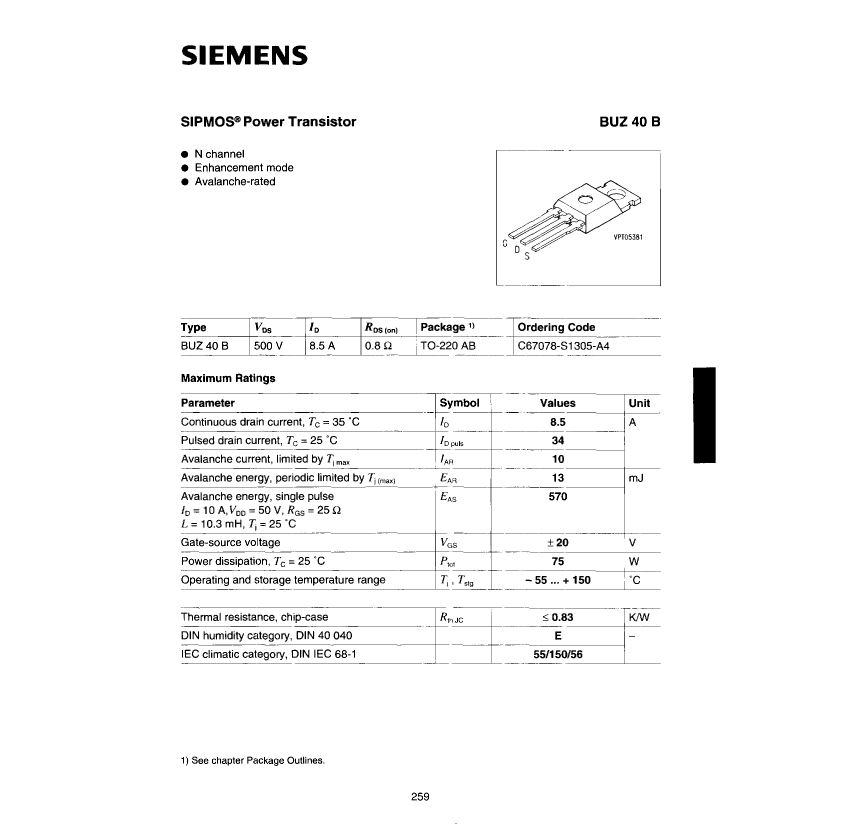

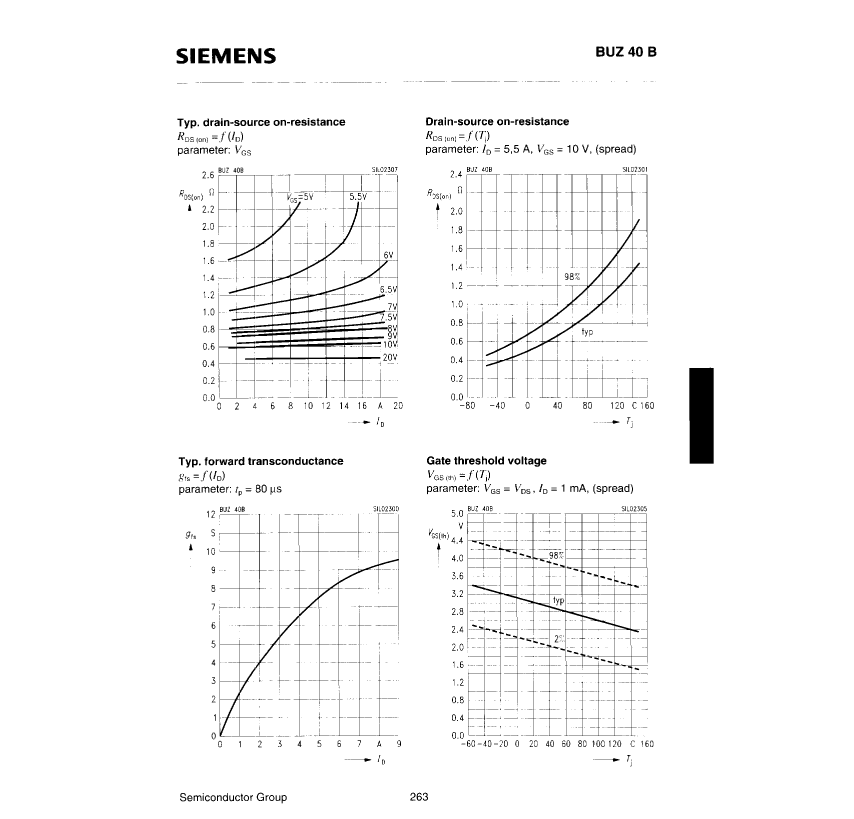

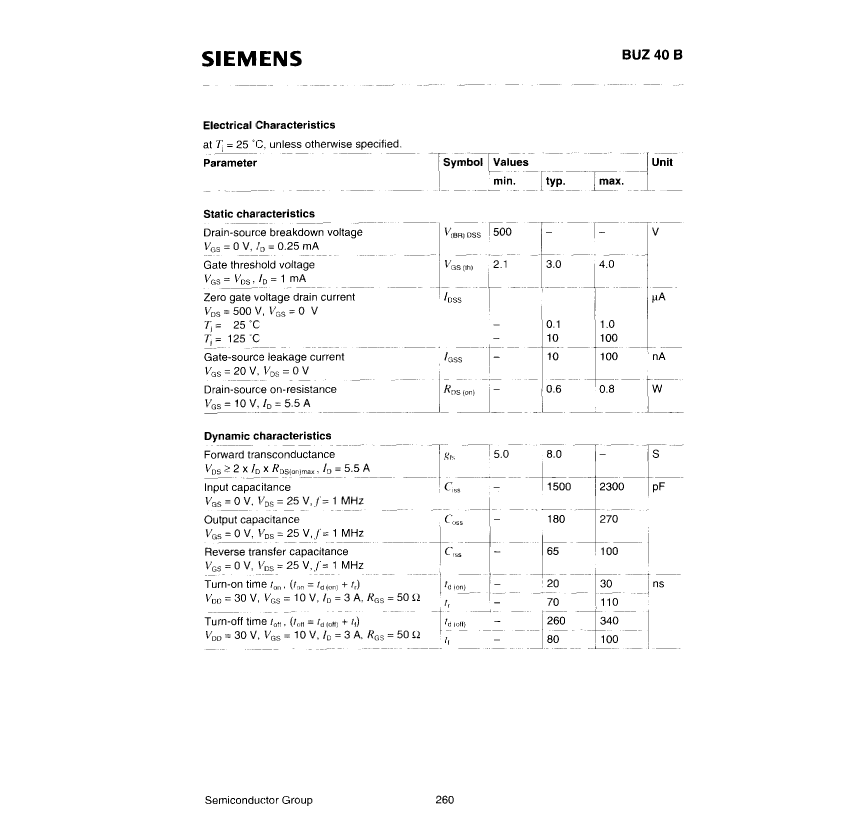

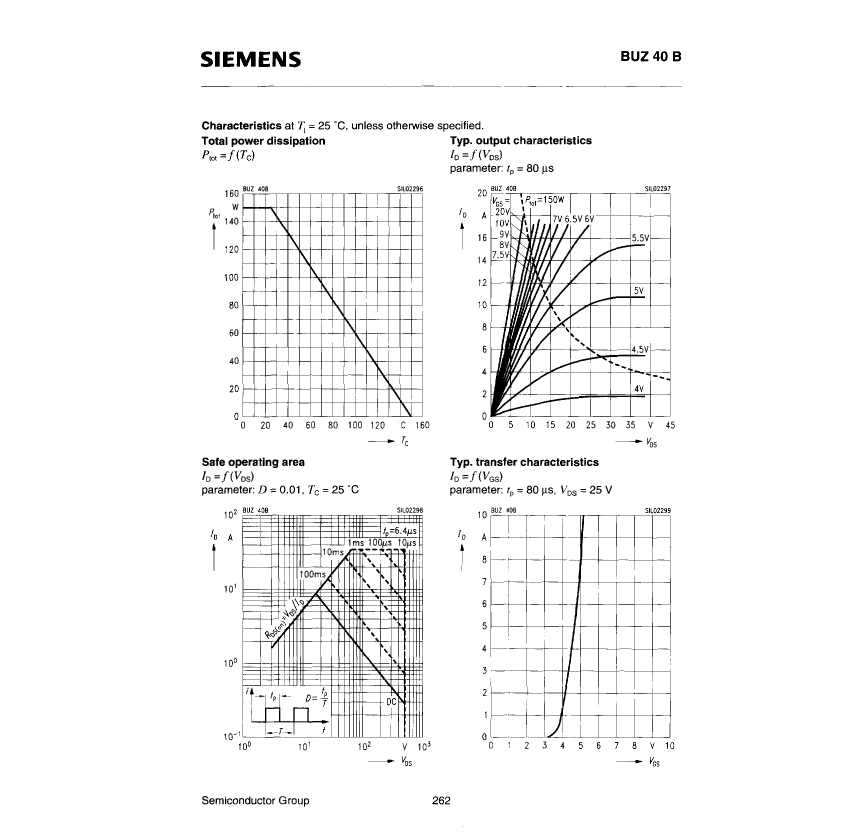

BUZ40B-E3044: DescriptionPower Field-Effect Transistor, 8.5A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size156KB，7 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BUZ40B-E3044 Overview

Power Field-Effect Transistor, 8.5A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN

BUZ40B-E3044 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	TO-220AB
package instruction	SMALL OUTLINE, R-PSSO-G3
Contacts	3
Reach Compliance Code	unknown
Avalanche Energy Efficiency Rating (Eas)	570 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	8.5 A
Maximum drain-source on-resistance	0.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	100 pF
JESD-30 code	R-PSSO-G3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	75 W
Maximum pulsed drain current (IDM)	34 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	440 ns
Maximum opening time (tons)	140 ns
Base Number Matches	1

Preview

Download Datasheet

View All

BUZ40B-E3044 Related Products

	BUZ40B-E3044	BUZ40B-E3046	BUZ40B-E3045
Description	Power Field-Effect Transistor, 8.5A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN	Power Field-Effect Transistor, 8.5A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN	Power Field-Effect Transistor, 8.5A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN
Parts packaging code	TO-220AB	TO-220AB	TO-220AB
package instruction	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknown
Avalanche Energy Efficiency Rating (Eas)	570 mJ	570 mJ	570 mJ
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V	500 V	500 V
Maximum drain current (ID)	8.5 A	8.5 A	8.5 A
Maximum drain-source on-resistance	0.8 Ω	0.8 Ω	0.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	100 pF	100 pF	100 pF
JESD-30 code	R-PSSO-G3	R-PSIP-T3	R-PSSO-G2
Number of components	1	1	1
Number of terminals	3	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	75 W	75 W	75 W
Maximum pulsed drain current (IDM)	34 A	34 A	34 A
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Maximum off time (toff)	440 ns	440 ns	440 ns
Maximum opening time (tons)	140 ns	140 ns	140 ns
Base Number Matches	1	1	1
