4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
LOC
DIST
1
C
COPYRIGHT
20
AF
50
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
A2
REVISED PER ECR-15-006219
30APR2015
NK
JR
D
D
1
MATES WITH CORRESPONDING PLUG HOUSING
PART NUMBER X-1969540-X.
DIM "N"
3.30
[ .130 ]
C
C
11.35
[ .447 ]
8.00
[ .315 ]
53.28 [2.098]
50.78 [1.999]
48.28 [1.901]
45.78 [1.802]
43.28 [1.704]
40.78 [1.605]
4-1969541-0
3-1969541-8
3-1969541-6
3-1969541-4
3-1969541-2
3-1969541-0
2-1969541-8
2-1969541-6
2-1969541-4
2-1969541-2
2-1969541-0
1-1969541-8
1-1969541-6
1-1969541-4
1-1969541-2
1-1969541-0
1969541-8
PART NO.
TE Connectivity
B
38.28 [1.507]
35.78 [1.409]
33.28 [1.310]
30.78 [1.212]
28.28 [1.113]
25.78 [1.015]
23.28 [.916]
20.78 [.818]
18.28 [.720]
15.78 .621]
13.28 [.523]
DIM "N"
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
B
A
mm[INCHES]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.13 [.005]
-
-
1
21AUG2012
KURT RANDOLPH
APVD
21AUG2012
SAM MACE
PRODUCT SPEC
APPLICATION SPEC
JR RUTH
21AUG2012
NAME
A
108-2418
114-13315
SIZE
WEIGHT
-
1471-9 (3/11)
COLOR-BLACK
-
Customer Drawing
A2
00779
CAGE CODE

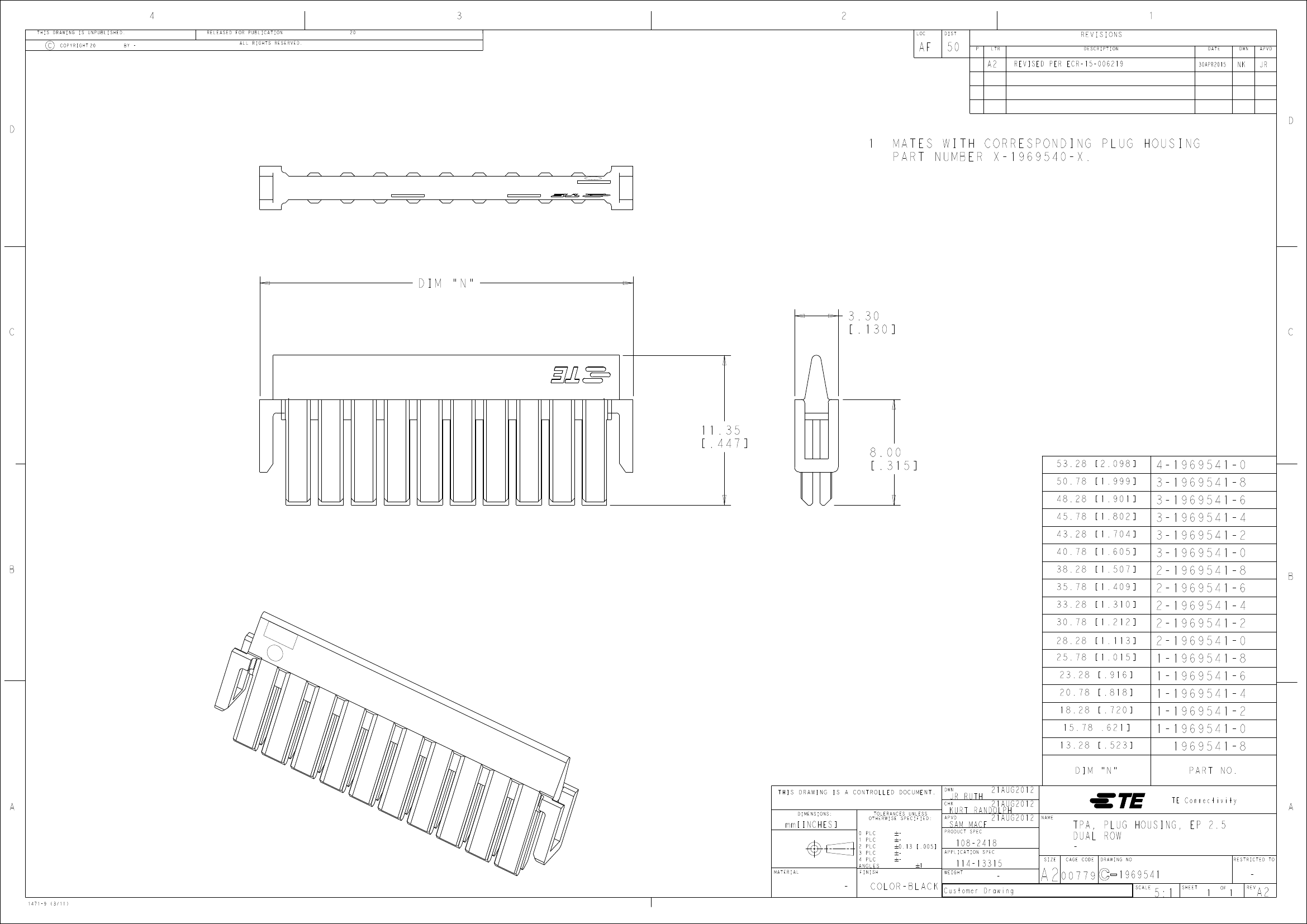

TPA, PLUG HOUSING, EP 2.5
DUAL ROW
-
DRAWING NO
RESTRICTED TO
1969541
SCALE
5:1
SHEET
1
OF
1
REV
-
A2
