HA-5135

January 2004

FN2907.5

2.5MHz, Precision Operational Amplifier

The Intersil HA-5135 is a precision operational amplifier

manufactured using a combination of key technological

advancements to provide outstanding input characteristics.

A Super Beta input stage is combined with laser trimming,

dielectric isolation and matching techniques to produce

75µV (Maximum) input offset voltage and 0.4µV/

o

C input

offset voltage average drift. Other features enhanced by this

process include 9nV/√Hz (Typ) Input Noise Voltage, 1nA

Input Bias Current and 140dB Open Loop Gain.

These features coupled with 120dB CMRR and PSRR make

the HA-5135 an ideal device for precision DC instrumentation

amplifiers. Excellent input characteristics in conjunction with

2.5MHz bandwidth and 0.8V/µs slew rate, make this

amplifier extremely useful for precision integrator and

biomedical amplifier designs. This amplifier is also well

suited for precision data acquisition and for accurate

threshold detector applications.

HA-5135 offers added features over the industry standard

OP-07 in regards to bandwidth and slew rate specifications.

For the military grade product, refer to the HA-5135/883 data

sheet.

Features

• Low Offset Voltage. . . . . . . . . . . . . . . . . . . . . 75µV (Max)

• Low Offset Voltage Drift . . . . . . . . . . . . . . . . . . . 0.4µV/

o

C

• Low Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9nV/√Hz

• Open Loop Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . 140dB

• Unity Gain Bandwidth. . . . . . . . . . . . . . . . . . . . . . 2.5MHz

• All Bipolar Construction

Applications

• High Gain Instrumentation

• Precision Data Acquisition

• Precision Integrators

• Biomedical Amplifiers

• Precision Threshold Detectors

Part Number Information

PART NUMBER

HA7-5135-5

TEMP.

RANGE (

o

C)

0 to 75

PACKAGE

8 Ld CERDIP

PKG.

NO.

F8.3A

Pinout

HA-5135 (CERDIP)

TOP VIEW

BAL

-IN

+IN

V-

1

2

3

4

8 BAL 1

-

+

7 V+

6 OUT

5 BAL 1

NOTE: Both BAL 1 pins are connected together internally.

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

|

Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

HA-5135

Absolute Maximum Ratings

Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . . 40V

Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V

Output Short Circuit Duration. . . . . . . . . . . . . . . . . . . . . . . Indefinite

Thermal Information

Thermal Resistance (Typical, Note 2)

θ

JA

(

o

C/W)

θ

JC

(

o

C/W)

CERDIP Package. . . . . . . . . . . . . . . . .

115

28

Maximum Junction Temperature (Note 1) . . . . . . . . . . . . . . . . 175

o

C

Maximum Storage Temperature Range . . . . . . . . . -65

o

C to 150

o

C

Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . 300

o

C

Operating Conditions

Temperature Ranges

HA-5135-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0

o

C to 75

o

C

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the

device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

NOTES:

1. Maximum power dissipation, including output load, must be designed to maintain the maximum junction temperature below 175

o

C.

2.

θ

JA

is measured with the component mounted on an evaluation PC board in free air.

Electrical Specifications

PARAMETER

INPUT CHARACTERISTICS

Offset Voltage

V

SUPPLY

=

±15V

TEMP.

(

o

C)

HA-5135-5

MIN

TYP

MAX

UNITS

TEST CONDITIONS

25

Full

-

±12

20

-

10

50

0.4

±1

-

0.02

-

0.02

-

30

-

13.0

10.0

9.0

15

0.4

0.17

0.14

75

130

1.3

±4

±6

0.04

4

5.5

0.04

-

0.6

18.0

13.0

11.0

30

0.8

0.23

0.17

µV

µV/

o

C

nA

nA/

o

C

nA

nA/

o

C

V

MΩ

µV

P-P

nV/√Hz

pA

P-P

pA/√Hz

Average Offset Voltage Drift

Bias Current

Full

25

Full

Bias Current Average Drift

Offset Current

Full

25

Full

Offset Current Average Drift

Common Mode Range

Differential Input Resistance

Input Noise Voltage (Note 3)

Input Noise Voltage Density

(Note 3)

0.1Hz to 10Hz

f = 10Hz

f = 100Hz

f = 1000Hz

Input Noise Current (Note 3)

Input Noise Current Density

(Note 3)

0.1Hz to 10Hz

f = 10Hz

f = 100Hz

f = 1000Hz

TRANSFER CHARACTERISTICS

Large Signal Voltage Gain

V

OUT

=

±10V,

R

L

= 2kΩ

Full

25

-

25

Full

120

106

0.6

140

-

120

2.5

-

dB

MHz

Common Mode Rejection Ratio

Closed Loop Bandwidth

OUTPUT CHARACTERISTICS

Output Voltage Swing

V

CM

=

±10V

A

VCL

= +1

Full

25

R

L

= 600Ω

25

Full

±10

±12

-

V

2

HA-5135

Electrical Specifications

PARAMETER

Full Power Bandwidth (Note 4)

Output Current

Output Resistance

TRANSIENT RESPONSE

(Note 6)

Rise Time

Slew Rate

Settling Time (Note 7)

POWER SUPPLY CHARACTERISTICS

Supply Current

Power Supply Rejection Ratio

NOTES:

3. Not tested. 90% of units meet or exceed these specifications.

Slew Rate

-

4. Full power bandwidth guaranteed based on slew rate measurement using: FPBW

= ------------------------------

.

2π V PEAK

5. Output resistance measured under open loop conditions (f = 100Hz).

6. Refer to test circuits section of the data sheet.

7. Settling time is measured to 0.1% of final value for a 10V output step and A

V

= -1.

V

S

=

±5V

to

±20V

Full

-

94

1.0

130

1.7

-

mA

dB

25

-

0.5

-

340

0.8

11

-

ns

V/µs

µs

V

SUPPLY

=

±15V

(Continued)

TEMP.

(

o

C)

25

HA-5135-5

MIN

8

±15

-

TYP

10

±20

45

MAX

-

UNITS

kHz

mA

Ω

TEST CONDITIONS

R

L

= 2kΩ

V

OUT

= 10V

Note 5

Test Circuits and Waveforms

IN

+

-

2kΩ

OUT

100pF

FIGURE 1. SLEW RATE AND TRANSIENT RESPONSE TEST CIRCUIT

INPUT

0V

INPUT

0V

OUTPUT

0V

OUTPUT

0V

Vertical Scale: Input = 50mV/Div. Output = 100mV/Div.

Horizontal Scale: 1µs/Div.

SMALL SIGNAL RESPONSE

Vertical Scale: 5V/Div.

Horizontal Scale: 5µs/Div.

LARGE SIGNAL RESPONSE

3

HA-5135

Test Circuits and Waveforms

(Continued)

+15V

2N4416

5kΩ

2kΩ

+15V

+

A.U.T.

V

IN

2kΩ

V

OUT

100pF

-15V

2kΩ

TO

OSCILLOSCOPE

NOTES:

8. A

V

= -1.

9. Feedback and summing resistors

should be 0.1% matched.

10. Clipping diodes are optional.

HP5082-2810 recommended.

-

FIGURE 2. SETTLING TIME CIRCUIT

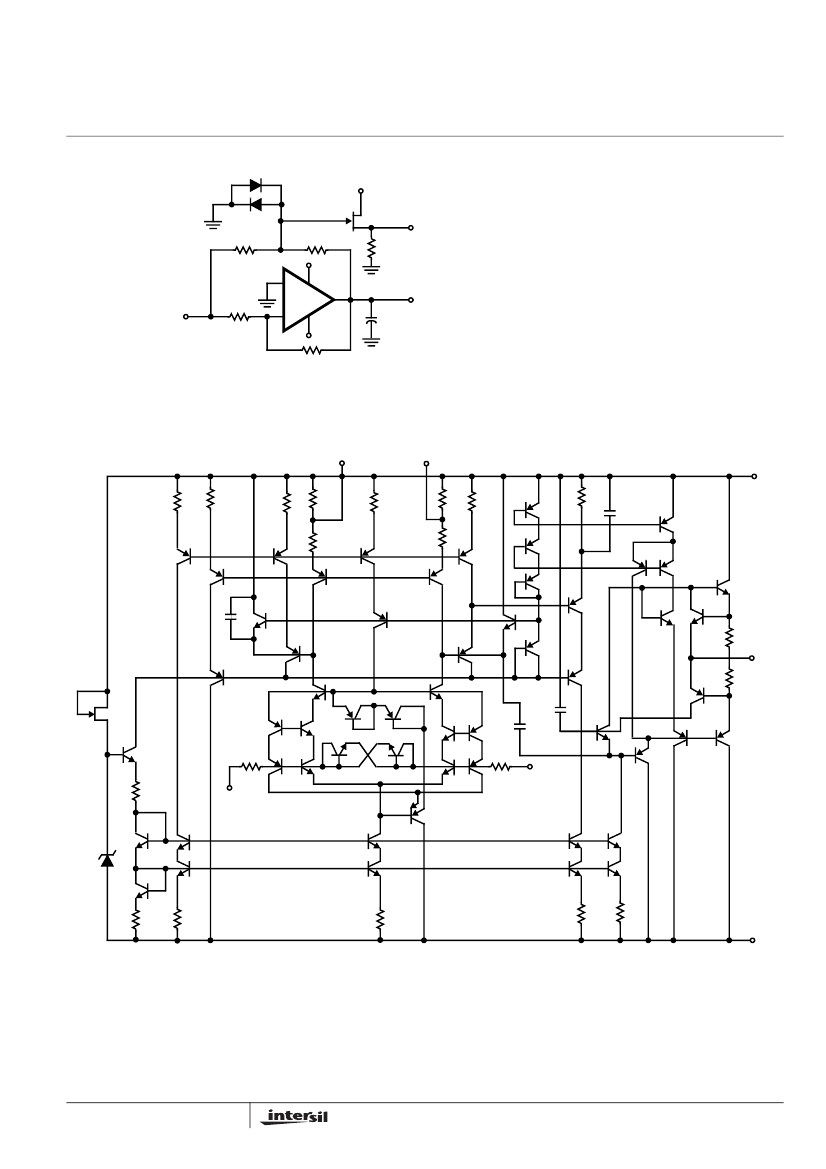

Schematic Diagram

BALANCE

V+

R

9

R

5

R

10

R

11

R

12

R

8

Q

36

C

2

Q

44

Q

55

Q

35

Q

21

Q

19

C

3

Q

8

Q

17

Q

22

R

P18

Q

15

Q

13

Q

46

R

19

R

3

Q

3

(-) INVERTING

INPUT

Q

1

Q

11

Q

9

Q

10

Q

16

Q

12

Q

6

Q

5

Q

2

Q

4

Q

14

R

4

(+) NON-

INVERTING

INPUT

Q

52

Q

7

Q

26

Q

42

Q

51

Q

49

R

20

Q

41

R

13

Q

53

R

14

Q

25

R

2

R

17

V-

C

1

Q

31

Q

45

C

4

Q

24

Q

30

Q

34

Q

18

Q

54

Q

40

Q

39

Q

27

R

15

R

7

Q

56

R

6

Q

57

Q

20

Q

37

Q

58

Q

43

Q

38

Q

28

Q

32

Q

47

Q

33

R

16

OUT

Q

50

Q

48

Z

1

4

HA-5135

Application Information

Power Supply Decoupling

Although not absolutely necessary, it is recommended that

all power supply lines be decoupled with 0.01µF ceramic

capacitors to ground. Decoupling capacitors should be

located as near to the amplifier terminals as possible.

Saturation Recovery

Input and output saturation recovery time is negligible in

most applications. However, care should be exercised to

avoid exceeding the absolute maximum ratings of the

device.

Considerations For Prototyping:

The following list of recommendations are suggested for

prototyping.

1. Resolving low level signals requires minimizing leakage

currents caused by external circuitry. Use of quality

insulating materials, thorough cleaning of insulating

surfaces and implementation of moisture barriers when

required is suggested.

2. Error voltages generated by thermocouples formed

between dissimilar metals in the presence of temperature

gradients should be minimized. Isolation of low level

circuity from heat generating components is

recommended.

3. Shielded cable input leads, guard rings and shield drivers

are recommended for the most critical applications.

Differential Input Voltages

Inputs are shunted with back-to-back diodes for overvoltage

protection. In applications where differential input voltages in

excess of 1V are applied between the inputs, the use of

limiting resistors at the inputs is recommended.

Typical Applications

The excellent input and gain characteristics of HA-5135 are

well suited for precision integrator applications. Accurate

integration over seven decades of frequency using HA-5135,

virtually nullifies the need for more expensive chopper-type

amplifiers.

C

Large Capacitive Loads

When driving large capacitive loads (>500pF), a small value

resistor (≈50Ω) should be connected in series with the output

and inside the feedback loop.

8

1

R

2

7

Offset Voltage Adjustment (See Figure 3)

A 20kΩ balance potentiometer is recommended if offset

nulling is required. However, other potentiometer values

such as 10kΩ, 50kΩ and 100kΩ may be used. The

minimum adjustment range for given values is

±2mV.

V

OS

TC of the amplifier is optimized at minimal V

OS

. Tested

Offset Adjustment is |V

OS

+ 1mV| minimum referred

to output.

V+

R

P

(NOTE)

20kΩ

8

1

7

OPTIONAL

CONNECTION

6

-

+

6

OUT

3

4

R

B

5

FIGURE 4. PRECISION INTEGRATOR

Low V

OS

coupled with high open loop Gain, high CMRR

and high PSRR make HA-5135 ideally suited for precision

detector applications, such as the zero crossing detector

shown in Figure 5.

2

-

+

3

4

5

FIGURE 3. OFFSET NULLING CONNECTIONS

5

HA-5135

HA-5135 Overview

Preview

HA-5135 Related Products

Recommended Resources
