2-5146893-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-5146893-1

2-5146893-1: Description1FHR,64,30A/S,R,C,S08,09,10; CategoryThe connector; File Size195KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-5146893-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-5146893-1	-	-	View	Buy Now

2-5146893-1 Overview

1FHR,64,30A/S,R,C,S08,09,10

2-5146893-1 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting female terminal
Connector System	Board to Board
Line spacing (mm)	1
Connectors and terminals terminate to	A printed circuit board
series	1 mm FH
lugs	yes
Stackable	yes
Number of columns	32
PCB mounting direction	vertical
Number of Positions	64
Board-to-board configuration	mezzanine
Rows	2
Voltage (VAC)	250
Insulation resistance (MΩ)	2
Terminal base material	Phosphor bronze
PCB terminal termination area plating materials	tin
Solder tail terminal plating material surface coating	matte
Terminal contact plating material	gold
Terminal contact plating thickness	.76 µm [ 29.92 µin ]
Terminal type	socket
Contact Current Rating (Max) (A)	1
PCB terminal termination area plating thickness	3.81 µm [ 150 µin ]
Base plate material thickness	1.27 µm [ 50 µin ]
Terminal plating thickness	1.27 – 2.54, 3.81 – 6.35
Terminal layout	Direct plug-in
PCB Termination Methods	surface mount
PCB mounting fixation type	none
joint alignment	Without
Joint alignment type	none
PCB installation and fixation	Without
PCB mounting alignment	with
PCB Mount Alignment Type	Positioning post
Centerline (Pitch)	1 mm [ .039 in ]
Shell material	thermoplastic
Shell entry method	top
Stacking height (mm)	8, 9, 10
stack height (in)	.394
PCB thickness (recommended) (in)	.76
width	3.81 mm [ 150 in ]
high	5.37 mm [ .211 in ]
Tail length (in)	.081
Working group temperature range	-55 – 110 °C [ -67 – 230 °F ]
Assembly process characteristics	pick and place cover
pick and place cover	with
Circuit Application	Signal
Applicable to	Plug assembly
UL flammability rating	UL 94V-0
Encapsulation method	tape carrier
Package quantity	650

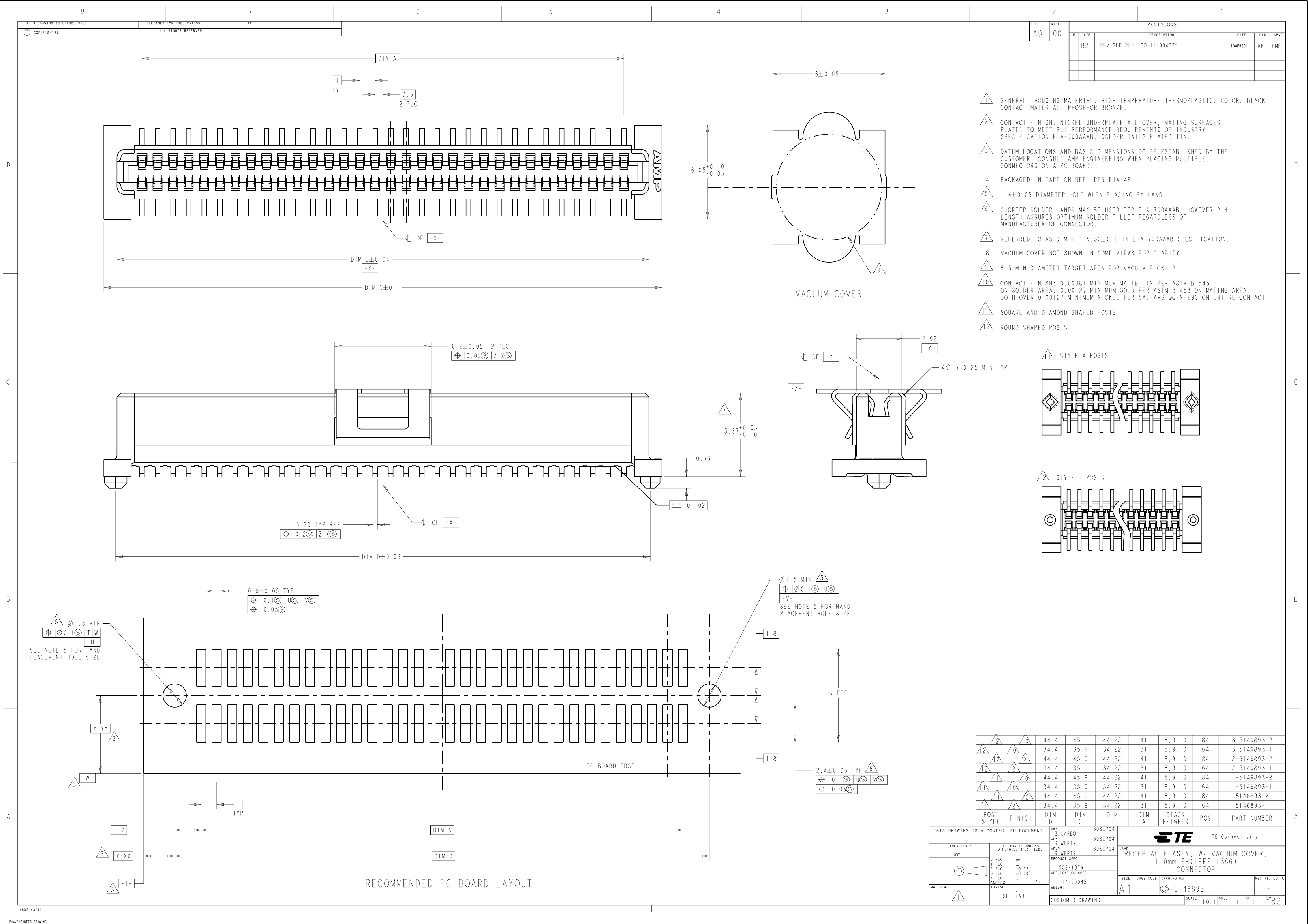

Preview

Download Datasheet
