A638AN-0158Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> A638AN-0158Z

Preview

A638AN-0158Z: DescriptionVariable Inductor, 0.33uH Min, Amorphous Magnetic-Core, Unshielded, SMD, 2324; CategoryPassive components inductor; File Size169KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

A638AN-0158Z Overview

Variable Inductor, 0.33uH Min, Amorphous Magnetic-Core, Unshielded, SMD, 2324

A638AN-0158Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	TOKO, INC.
package instruction	2324
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2324
structure	Bobbin
core material	AMORPHOUS MAGNETIC
DC Resistance	0.55 Ω
Minimum inductance(L)	0.33 µH
Nominal inductance(L)	0.33 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	5CCE
Number of functions	1
Number of terminals	6
Package height	6 mm
Package length	5.9 mm
Package form	SMT
Package width	6.2 mm
Minimum quality factor (at nominal inductance)	75
series	5CCE
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	NO
special characteristics	INDUCTANCE IS ADJUSTABLE OVER 5% FROM NOMINAL; Q MEASURED AT 80 MHZ
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	100 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

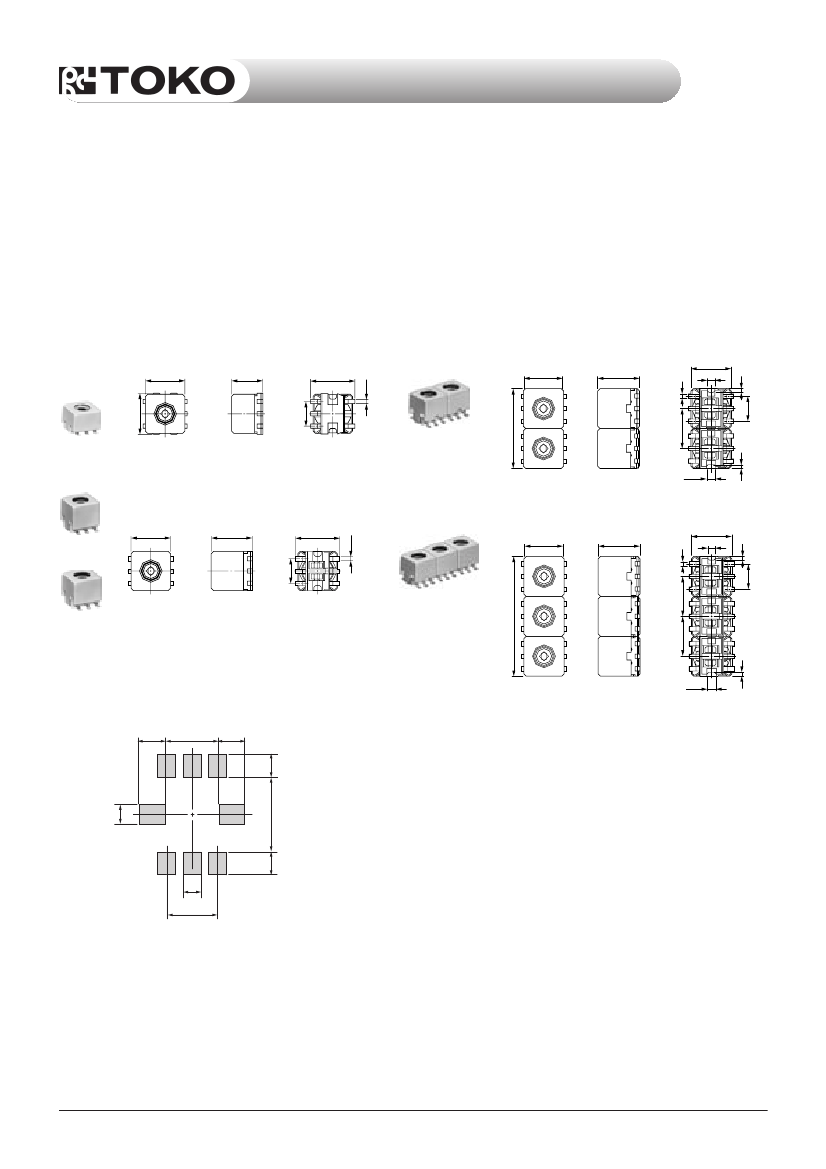

Valiable Coils for Surface Mounting

面

実装

用可変コイル

づ

け

TYPE

TYPE 5CCB, 5CCE, 5CCF, 5CCEW, 5CCET

For Reflow Soldering

5CCB

5CCE

5CCF

5CCEW

5CCET

Frequency Range:

Inductance Range:

Q Approx.:

5CCB

10~150MHz

0.03~10µH

50 (at 100MHz)

5CCE

10~150MHz

0.05~2.7µH

70 (at 100MHz)

5CCF

10~150MHz

0.03~30µH

50 (at 100MHz)

5CCEW/5CCET

Frequency Range:

10~200MHz

Q Approx.:

60 (at 100MHz)

Input/Output Impedance:

50Ω (Standard)

0.6

6.1Max.

0.6

3.6

5CCB

(Unit: mm)

5CCEW

(Unit: mm)

□

5.9Max.

11.3

5.65

0.6

6Max.

6.2

3.6

0.6

5CCE

(Unit: mm)

Recommended Patterns for

SMT 5CCB, 5CCE, 5CCF, Coils.

5CCB, 5CCE, 5CCF Coils 面

実装

用推奨パターン

づ

け

5.65

5CCF

16.9

5CCET

5.65

1.2

(Unit: mm)

1.9

3.3

1.9

1.3

1.4

1.1

3.6

(Unit: mm)

Features

•

Can take up to two built-in capacitors (3~510 pF).

•

Three units may be mounted in series allowing use in VHF

range bandpass or lowpass filter design.

•

Ideal for high-density mounting in a wide range of compact

equipment.

•

RoHS compliant.

1.3

4.7

特長

•

コンデンサが２個まで内蔵可½（3∼510pF)

•

３個まで連結できますので、VHF領域におけるバンドパス、

ローパスなどのフィルタとして設計可½

•

各種小型機器の高密度実装化に最適

•

RoHS指令対応

continued on next page

次頁へ続く

1

3.6

1

5.6

6Max.

6.2

0.9

1

1.2

3.6

1

□

5.9Max.

4.5Max.

6.2

5.6

6Max.

6.2

0.9
