2SB1300-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB1300-U

2SB1300-U: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 16V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43B, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size135KB，2 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

2SB1300-U Overview

Small Signal Bipolar Transistor, 3A I(C), 16V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43B, 3 PIN

2SB1300-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	16 V
Configuration	SINGLE
Minimum DC current gain (hFE)	300
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	140 MHz
Base Number Matches	1

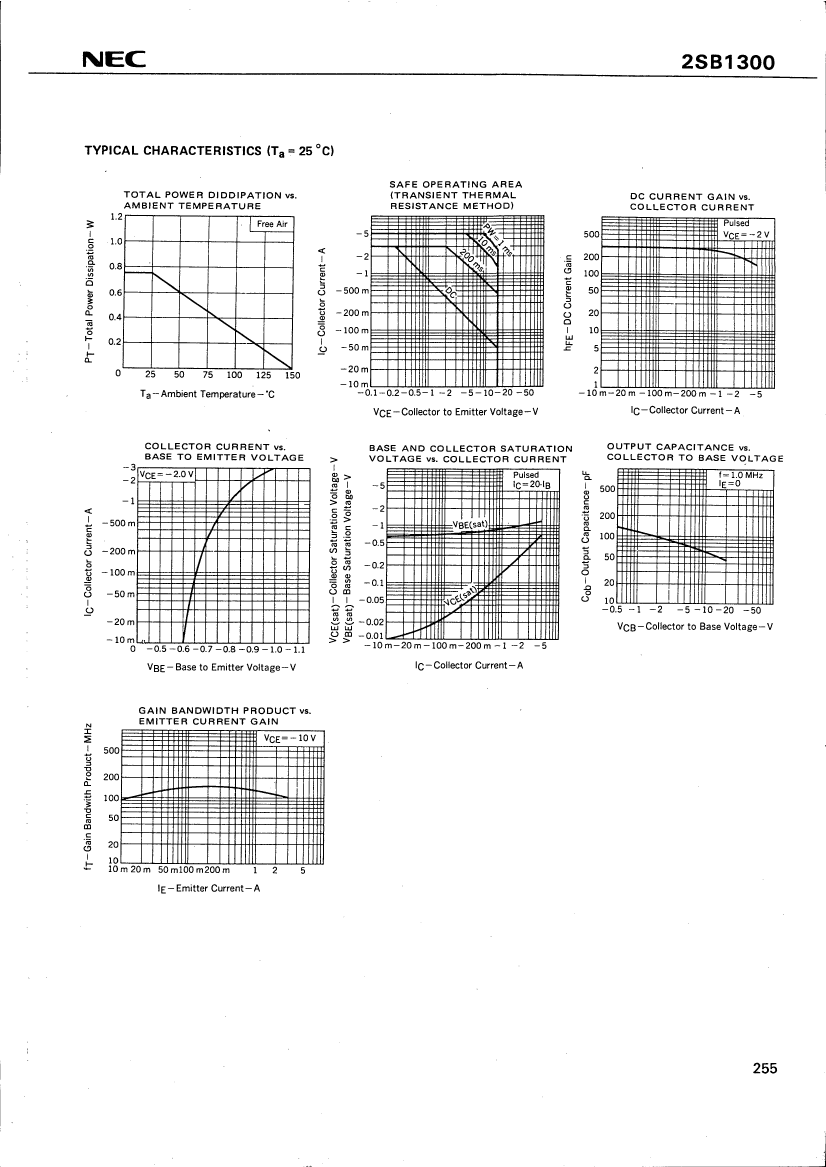

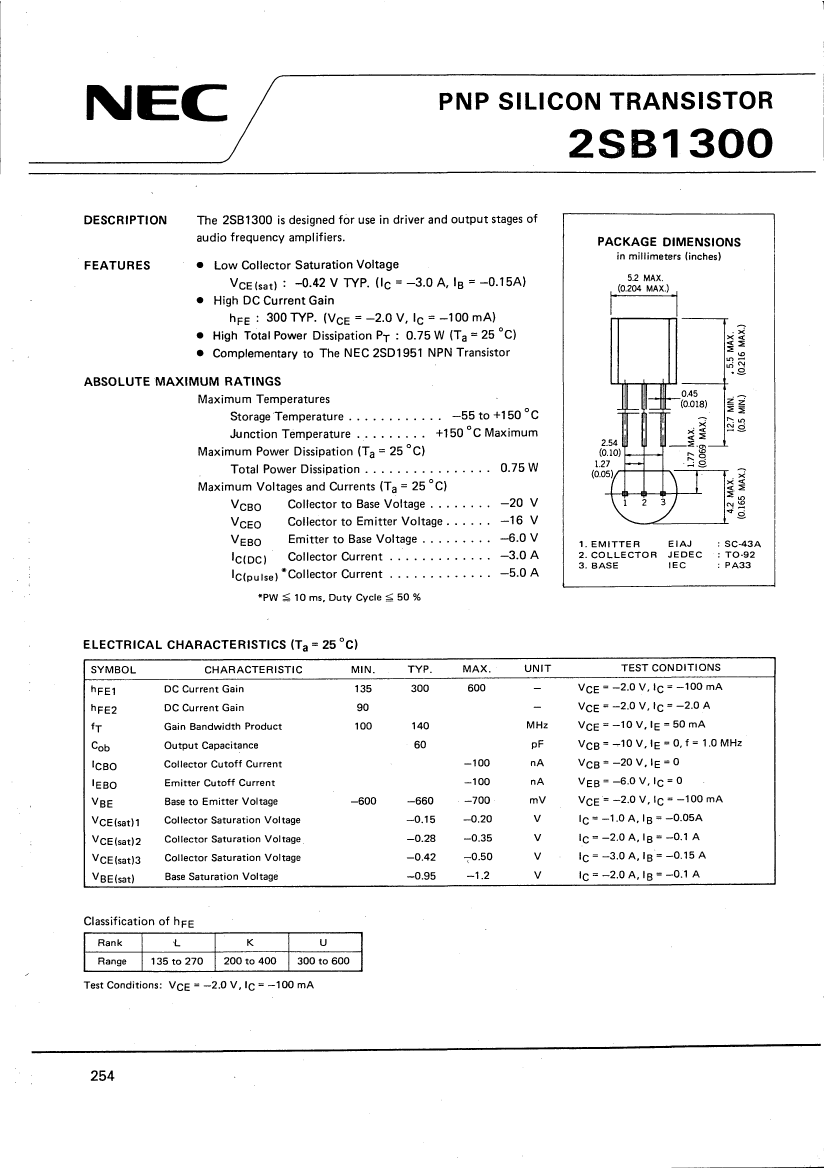

Preview

Download Datasheet

View All

2SB1300-U Related Products

	2SB1300-U	2SB1300-AZ	2SB1300-K	2SB1300-L
Description	Small Signal Bipolar Transistor, 3A I(C), 16V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43B, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 16V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43B, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 16V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43B, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 16V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, SC-43B, 3 PIN
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
Parts packaging code	TO-92	TO-92	TO-92	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Contacts	3	3	3	3
Reach Compliance Code	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	16 V	16 V	16 V	16 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	300	90	200	135
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	140 MHz	140 MHz	140 MHz	140 MHz
Base Number Matches	1	1	1	1
Is it Rohs certified?	incompatible	-	incompatible	incompatible
JESD-609 code	e0	-	e0	e0
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD
