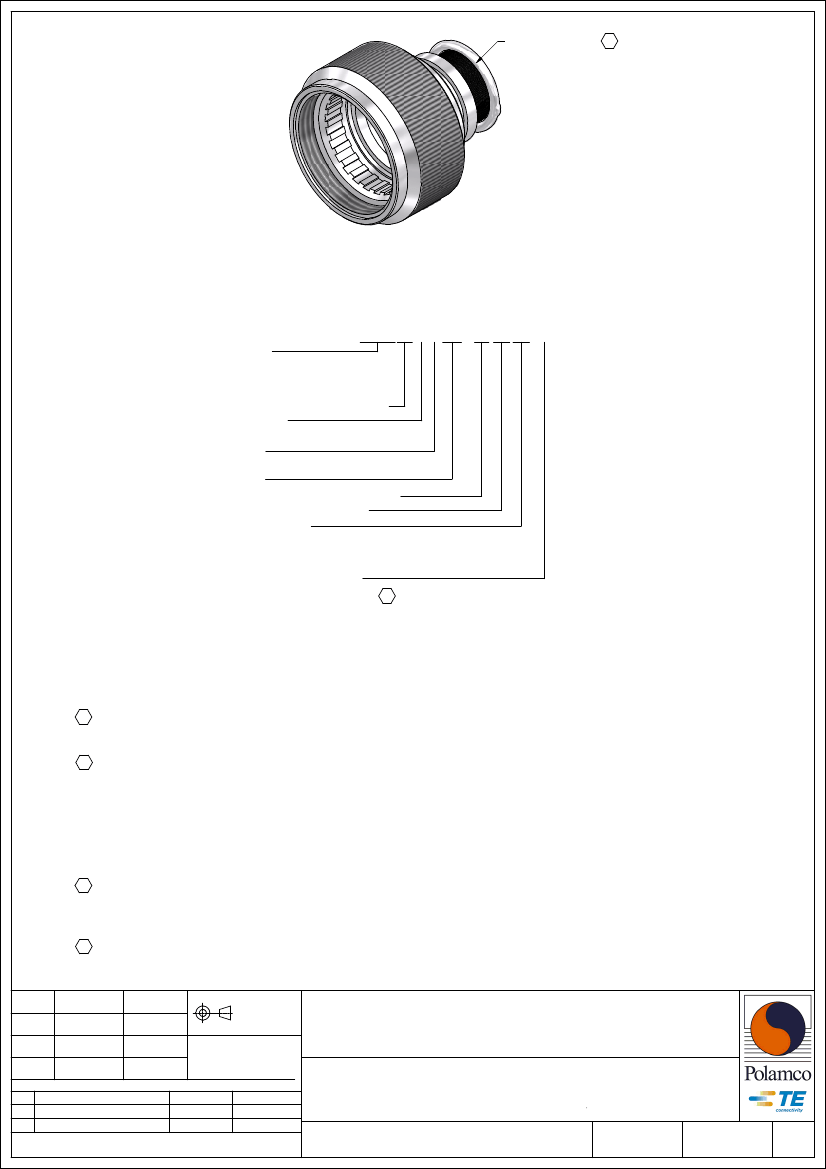

TINEL LOCK RING 3
CODE 30 - TINEL-LOCK BACKSHELL
TXR30AB00-1608AI-S
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
ORDER NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
REFER TO CH00-0250-008 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR30AB00-1206).
RING SHALL BEAR NO MARKING.
5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-C-28840, M28840/10, /11, /14 & /16
7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
15/12/2014
15/12/2014
16/12/2014
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
F
REVISED PER ECO-15-002400
G
REVISED PER ECO-15-013980
DA TE
18/02/2015
01/10/2015
APPROVED
H . S MI T H
H.SMITH
MIL-DTL-28840
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
TXR30
G
1
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
24,50
`
0,50
30,00
SILICONE
O-RING
26,50
A THREAD
A THREAD
XXXX
ØK
ØS
XXXX
ØY
ØZ
ØB
PART MARK
HERE
ØB
5
PART MARK
HERE

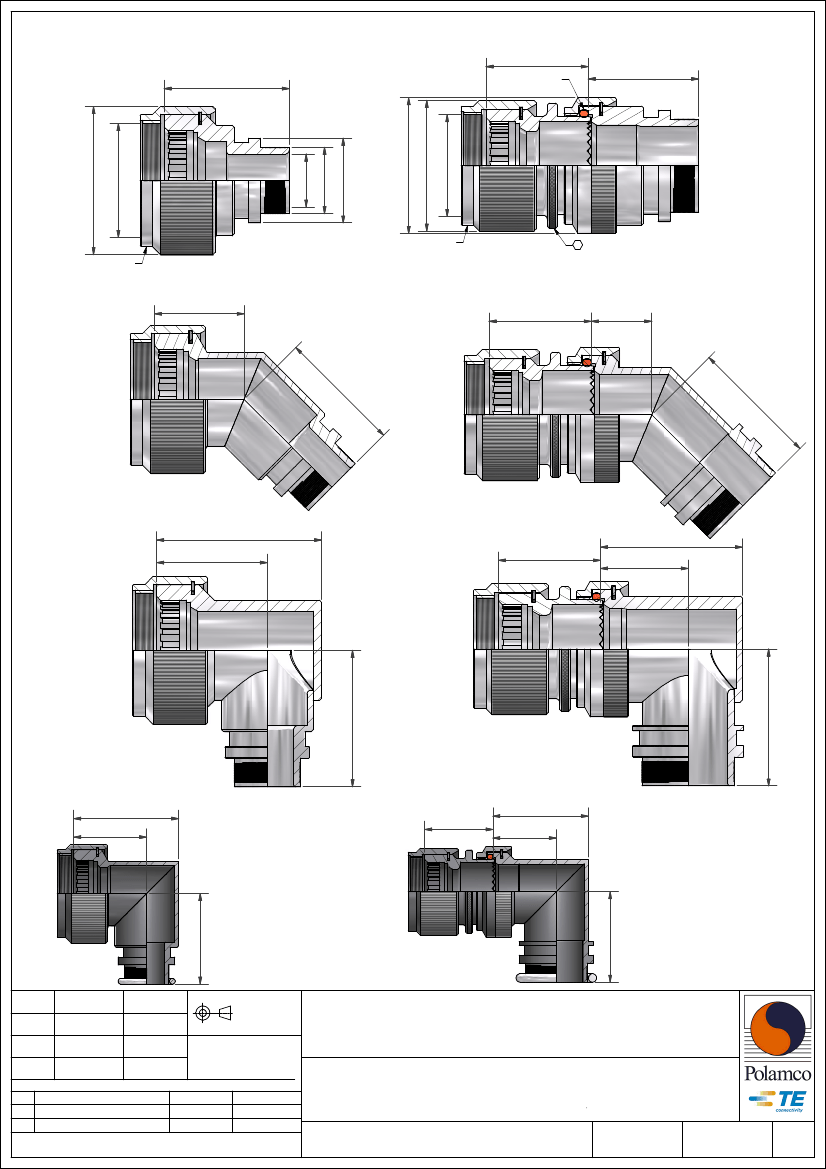

STRAIGHT BACKSHELL - TYPE 1
C
STRAIGHT BACKSHELL - TYPE 2
24,50
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
W
T
45° BACKSHELL - TYPE 2
24,50
`
0,50
H
M
E
90° BACKSHELL - TYPE 1
W
T
24,50
`
0,50
M
90° BACKSHELL - TYPE 2
H
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
3RD ANGLE
PROJECTION
NOT TO
SCALE
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
15/12/2014
15/12/2014
16/12/2014
01/10/2015
TITLE:
H.SMITH
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TINEL LOCK BACKSHELL
ASSY USED ON:
REVISIONS
LTR
DESCRIPTION
F
REVISED PER ECO-15-002400
G
REVISED PER ECO-15-013980
DA TE
18/02/2015
01/10/2015
APPROVED
H . S MI T H
H.SMITH
MIL-DTL-28840
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
J
SHT
TXR30
G
2
MODIFICATION S
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
24,50
`
0,50
SELF-LOCKING
MECHANISM
A THREAD
BACKSHELL - TYPE 1
A THREAD
ØB 7
ØK 7
ØB 7
BACKSHELL - TYPE 2

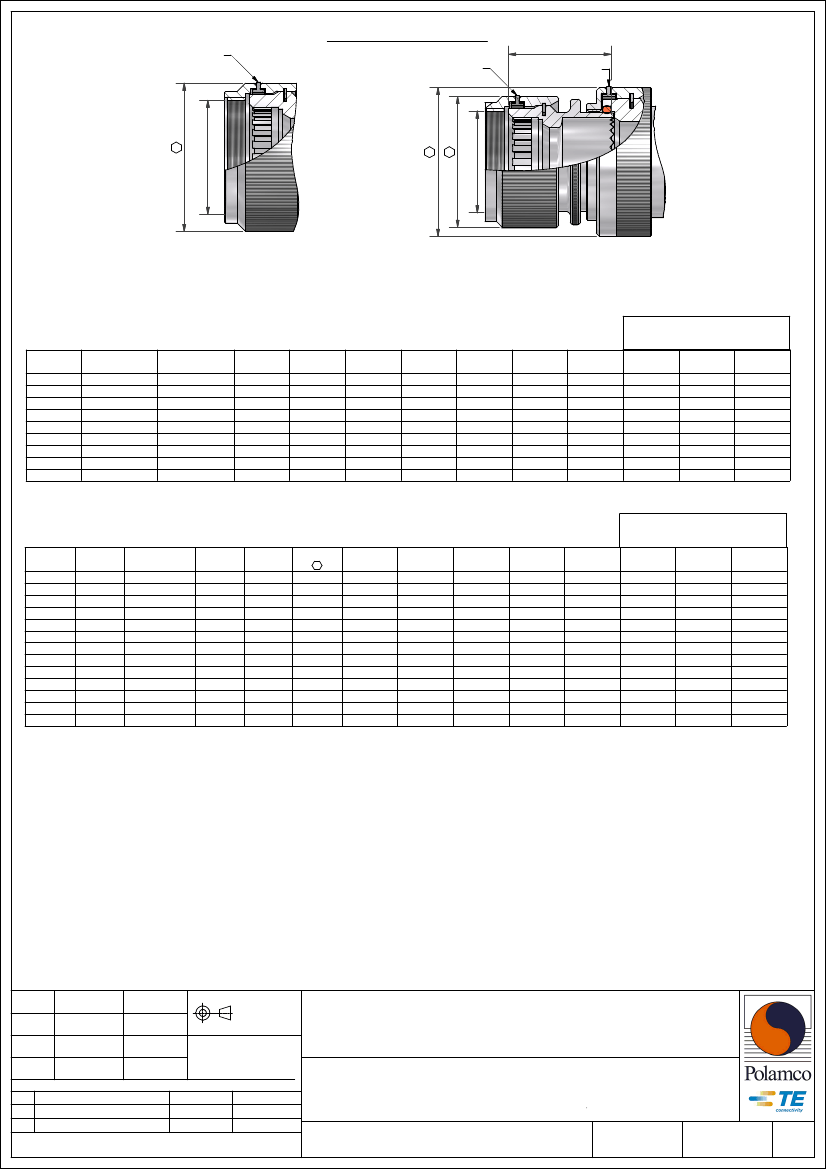

TABLE 1
ORDER
NUMBER
10
12
14
16
18
22
24
28
32
SHELL SIZE 6
A THREAD
COM'L / MIL
11 / A
3/4 - 20UNEF
13 / B
7/8 - 20UNEF
15 / C
1 - 20UNEF
17 / D
1 1/8 - 18 UNEF
19 / E
1 1/4 - 18UNEF
23 / F
1 7/16 -18UNEF
1 9/16 -18UNEF
25 / G
29 / H
1 7/8 - 16UN
33 / J
2 1/16 -16UN
ØB
MAX
26,5
29,7
31,3
35,5
38,7
43,6
47,2
55,2
60,5
MAX
ENTRY
05
08
10
12
14
16
18
22
24
C
±0,5
19,7
20,8
21,5
21,5
22,0
22,6
23,6
25,7
26,7
D
±0,5
27,5
28,0
29,0
29,7
30,5
31,1
32,1
35,3
38,1
W
±0,5
31,2
34,3
36,7
39,5
42,8
48,2
51,0
60,3
63,4
T
±0,5
22,4
23,3
24,2
26,2
25,3
28,2
31,5
37,0
38,5
E
±0,5
27,95
29,45
31,00
32,70
34,25
37,40
38,90
45,30
47,80
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
W
T
E
±0,5
±0,5
±0,5
29,6
22,4
28,2
32,3
23,3
29,7
34,4
24,2
31,2
37,7
26,2
32,9
38,6
25,3
34,5
44,4
28,2
37,6
48,9
31,5
39,1
57,0
37,0
45,3
60,5
38,5
47,8
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
± 0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
NA
21,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
ØK MAX
7
NA
NA
24,6
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
50,0
56,0
F
±0,5
NA
NA
12,5
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
NA
27,5
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
NA
24,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
NA
15,5
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
NA
27,95
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
H
M
J
±0,5
±0,5
±0,5
NA
NA
NA
NA
NA
NA
24,3
17,2
28,2
24,3
17,2
28,2
28,3
19,4
29,7
31,1
21,0
31,2
34,2
22,8
32,9
38,5
25,3
34,5
40,7
26,1
36,1
43,7
27,6
37,6
46,4
29,1
39,1
50,0
31,0
42,0
53,5
33,0
46,0
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
15/12/2014
15/12/2014
16/12/2014
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
F
REVISED PER ECO-15-002400
G
REVISED PER ECO-15-013980
DA TE
18/02/2015
01/10/2015
APPROVED
H . S MI T H
H.SMITH
MIL-DTL-28840
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
TXR30
G
3
