TXR58AB00-2008AI datasheet, PDF

Datasheet> All Categories > The connector> TXR58AB00-2008AI

TXR58AB00-2008AI: DescriptionTXR58AB00-2008AI; CategoryThe connector; File Size115KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

TXR58AB00-2008AI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TXR58AB00-2008AI	-	-	View	Buy Now

TXR58AB00-2008AI Overview

TXR58AB00-2008AI

TXR58AB00-2008AI Parametric

Parameter Name	Attribute value
Pluggable I/O Accessory Types	Tinel-Lock adapter
Adapter angle	00
type	Tinel-Lock adapter
Termination device type	Tinel-Lock ring, side insert Tinel-Lock ring
Connector housing size	20
Includes termination device	TR08AI
color	Grass green
Material	aluminum
Adapter plating material	Cadmium (AMS-QQ-P-416, Type II, Class 3), Cadmium (AMS-QQ-P-416, Type II, Class 3)
TE adapter code	58
Adapter inlet size	8
Braid Termination	Tinel-Lock Ring
Cable diameter range	6.4 – 10.2 mm [ .25 – .4 in ]
Cable entry diameter	.2 – 12.7 mm [ .01 – .5 in ]
Working group temperature range	-65 – 175 °C [ -85 – 347 °F ]
Salt spray resistance (Hr)	500
Connector detailed specification number	AS31001, AS31011, AS31061, AS31071
Connector general specification number	AS50151 Class A, E, F, R, Less ENDBELL, Terminal (ITT CANNON), CA3106 (ITT CANNON), VG 95234

Preview

Download Datasheet

View All

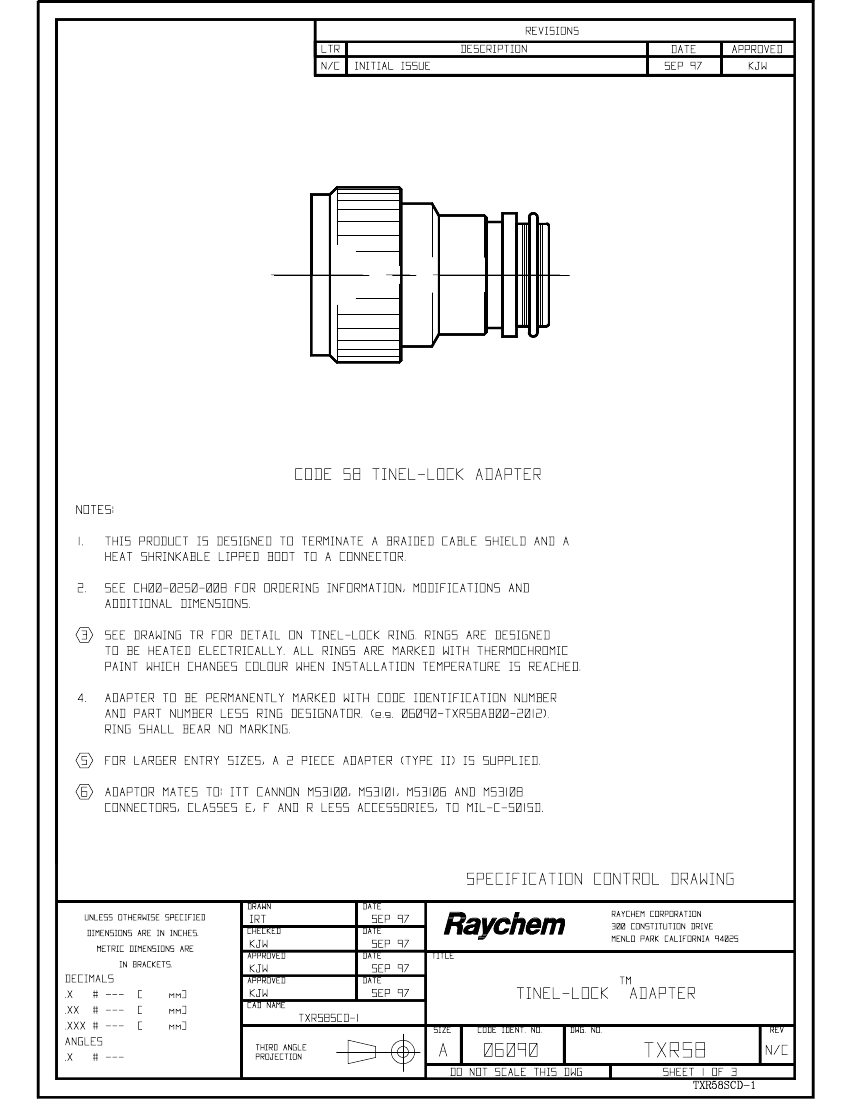

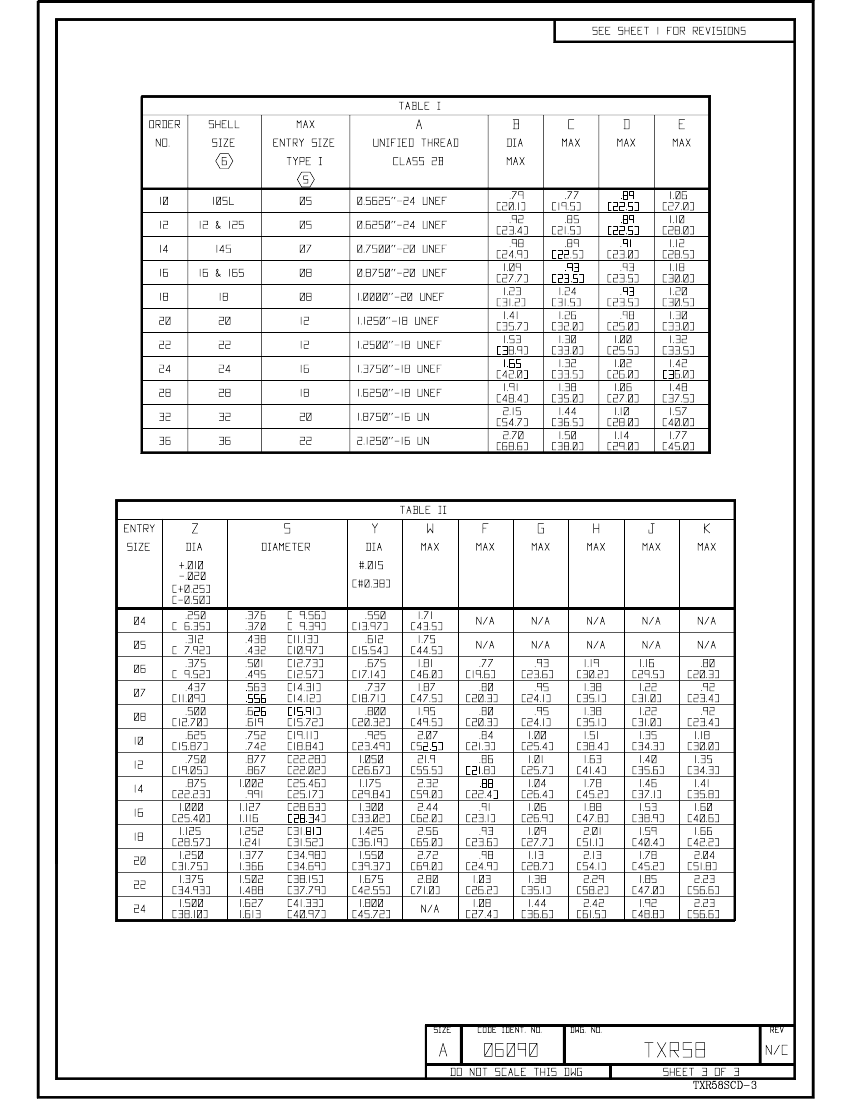

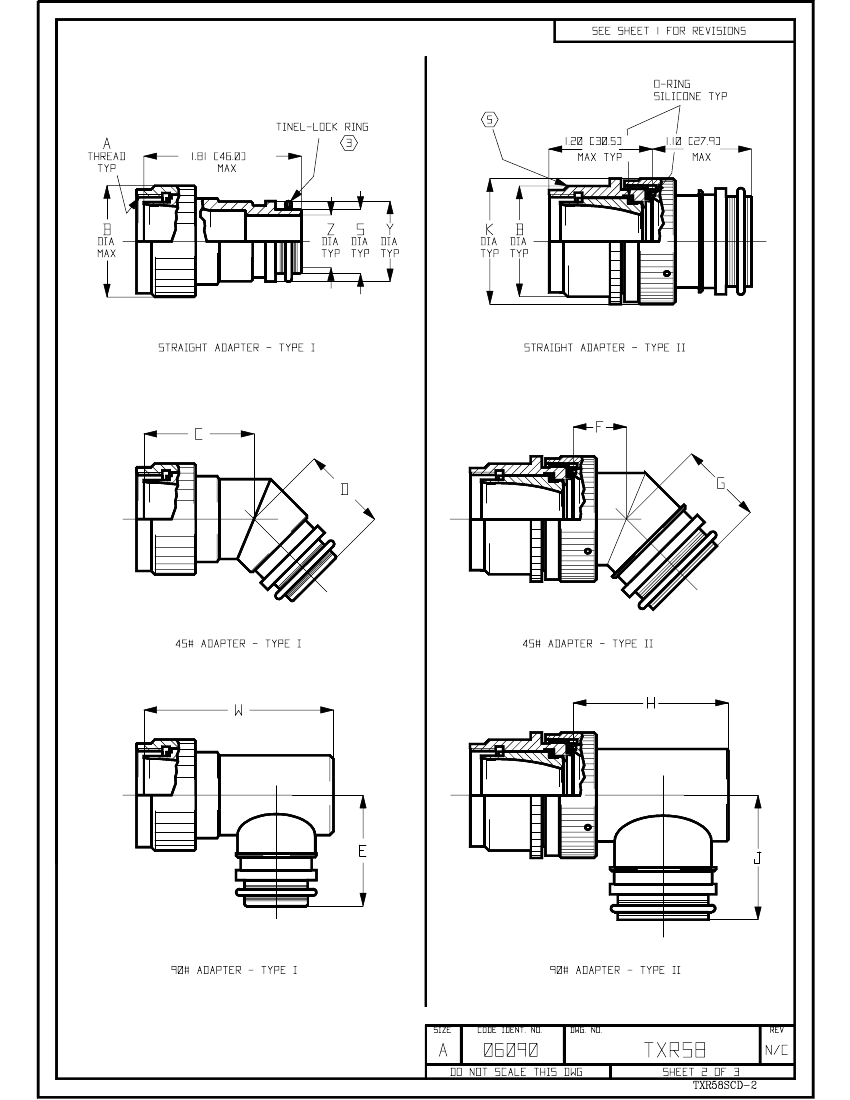

Sep 01, 2000TXR58-1.DWG

If this document is printed it becomes uncontrolled.

Check with document control for latest revision.

TXR58AB00-2008AI Related Products

	TXR58AB00-2008AI	TXR58SJ00-2410AI	TXR58AB00-2416AI	TXR58AB90-1004AI	TXR58AB00-2012AI
Description	TXR58AB00-2008AI	TXR58SJ00-2410AI	TXR58AB00-2416AI	TXR58AB90-1004AI	TXR58AB00-2012AI
Pluggable I/O Accessory Types	Tinel-Lock adapter	Tinel-Lock adapter	Tinel-Lock adapter	Tinel-Lock adapter	Tinel-Lock adapter
Adapter angle	00	00	00	90	00
type	Tinel-Lock adapter	Tinel-Lock adapter	Tinel-Lock adapter	Tinel-Lock adapter	Tinel-Lock adapter
Termination device type	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring
Connector housing size	20	24	24	10SL	20
Includes termination device	TR08AI	TR10AI	TR16AI	TR04AI	TR12AI
Material	aluminum	stainless steel, stainless steel	aluminum	aluminum	aluminum
Adapter plating material	Cadmium (AMS-QQ-P-416, Type II, Class 3), Cadmium (AMS-QQ-P-416, Type II, Class 3)	Passivation complies with SAE AMS-QQ-P-35 or MIL-S-5002	Cadmium (AMS-QQ-P-416, Type II, Class 3), Cadmium (AMS-QQ-P-416, Type II, Class 3)	Cadmium (AMS-QQ-P-416, Type II, Class 3), Cadmium (AMS-QQ-P-416, Type II, Class 3)	Cadmium (AMS-QQ-P-416, Type II, Class 3), Cadmium (AMS-QQ-P-416, Type II, Class 3)
TE adapter code	58	58	58	58	58
Adapter inlet size	8	10	16	4	12
Braid Termination	Tinel-Lock Ring	Tinel-Lock Ring	Tinel-Lock Ring	Tinel-Lock Ring	Tinel-Lock Ring
Cable diameter range	6.4 – 10.2 mm [ .25 – .4 in ]	7.9 – 12.7 mm [ .313 – .5 in ]	12.7 – 20.3 mm [ .5 – .8 in ]	3.2 – 5.1 mm [ .125 – .2 in ]	9.5 – 15.2 mm [ .375 – .6 in ]
Cable entry diameter	.2 – 12.7 mm [ .01 – .5 in ]	.2 – 15.9 mm [ .01 – .63 in ]	.2 – 25.4 mm [ .01 – 1 in ]	.2 – 6.4 mm [ .01 – .25 in ]	.2 – 19.1 mm [ .01 – .75 in ]
Working group temperature range	-65 – 175 °C [ -85 – 347 °F ]	-65 – 260 °C [ -85 – 500 °F ]	-65 – 175 °C [ -85 – 347 °F ]	-65 – 175 °C [ -85 – 347 °F ]	-65 – 175 °C [ -85 – 347 °F ]
Salt spray resistance (Hr)	500	1000	500	500	500
Connector detailed specification number	AS31001, AS31011, AS31061, AS31071	AS31001, AS31011, AS31061, AS31071	AS31001, AS31011, AS31061, AS31071	AS31001, AS31011, AS31061, AS31071	AS31001, AS31011, AS31061, AS31071
Connector general specification number	AS50151 Class A, E, F, R, Less ENDBELL, Terminal (ITT CANNON), CA3106 (ITT CANNON), VG 95234	AS50151 Class A, E, F, R, Less ENDBELL, Terminal (ITT CANNON), CA3106 (ITT CANNON), VG 95234	AS50151 Class A, E, F, R, Less ENDBELL, Terminal (ITT CANNON), CA3106 (ITT CANNON), VG 95234	AS50151 Class A, E, F, R, Less ENDBELL, Terminal (ITT CANNON), CA3106 (ITT CANNON), VG 95234	AS50151 Class A, E, F, R, Less ENDBELL, Terminal (ITT CANNON), CA3106 (ITT CANNON), VG 95234
color	Grass green	-	Grass green	Grass green	Grass green
