1438465-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1438465-1

Preview

1438465-1: Description4 POS PLUG HOUSING, RIGHT KEYED, .040 ML; CategoryThe connector; File Size136KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1438465-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1438465-1	-	-	View	Buy Now

1438465-1 Overview

4 POS PLUG HOUSING, RIGHT KEYED, .040 ML

1438465-1 Parametric

Parameter Name	Attribute value
Connector System	line to line
Sealable	no
Hybrid connector	no
strain relief	no
Number of Positions	4
Rows	1
color	nature
Main material	PBT
Width of docking male end	1 mm [ .039 in ]
Installation features	Without
Terminal position guarantee	no
polarization	yes
Centerline (Pitch)	2.5 mm [ .098 in ]
width	13.3 mm [ .524 in ]
high	18.7 mm [ 0.736 in ]
length	13.3 mm [ .52 in ]
Working group temperature range	-30 – 105 °C [ -22 – 221 °F ]
Circuit Application	Signal
Encapsulation method	Package
Package quantity	6000
Able to ensure connector position	no

Preview

Download Datasheet

View All

4

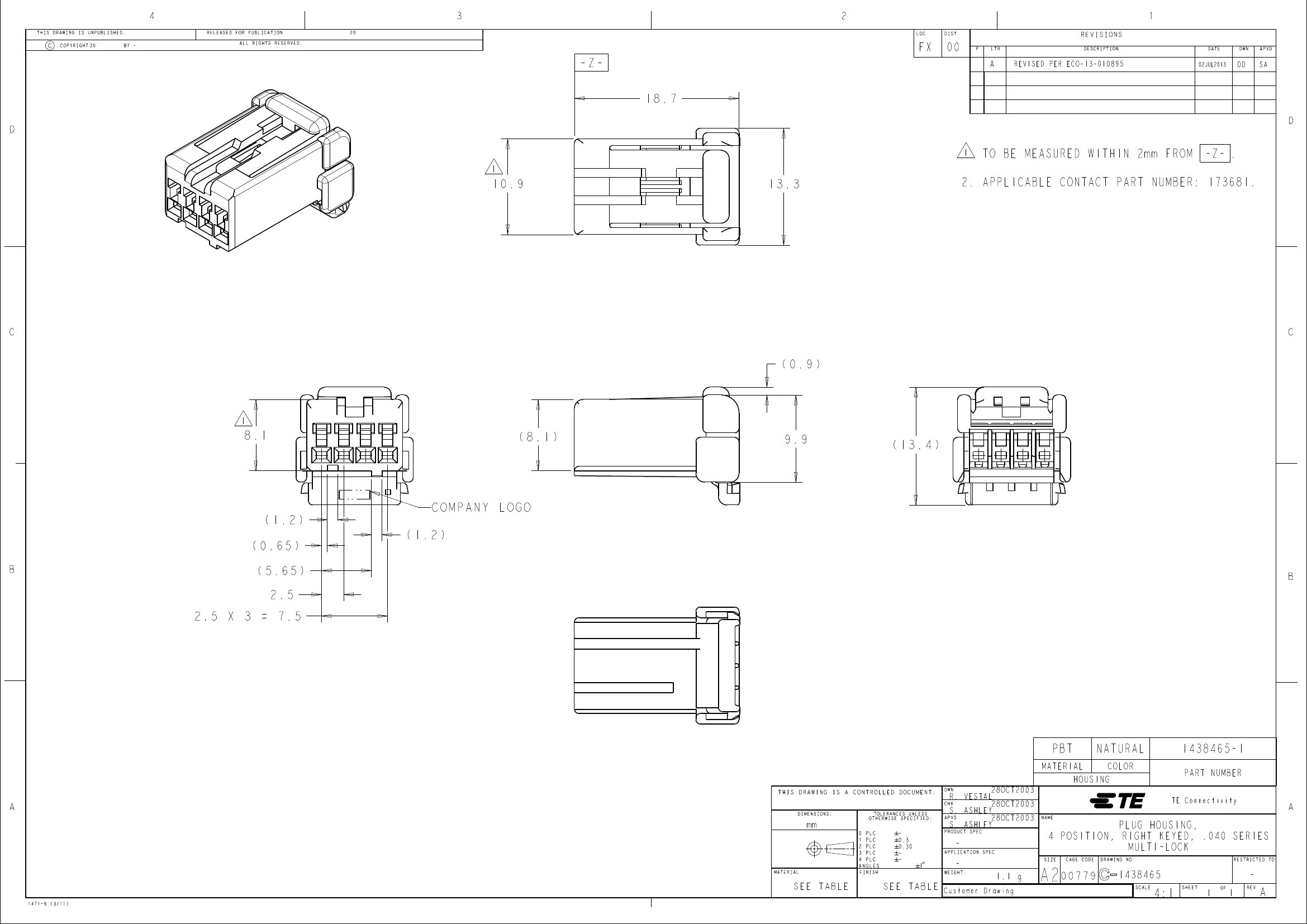

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

-Z-

18.7

D

FX

00

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A

REVISED PER ECO-13-010895

02JUL2013

DD

SA

D

1

TO BE MEASURED WITHIN 2mm FROM

-Z- .

10.9

13.3

2. APPLICABLE CONTACT PART NUMBER: 173681.

C

( 0.9 )

1

8.1

( 8.1 )

9.9

( 13.4 )

( 1.2 )

( 0.65 )

B

COMPANY LOGO

( 1.2 )

B

( 5.65 )

2.5

2.5 X 3 =

7.5

MATERIAL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

PBT

NATURAL

COLOR

1438465-1

PART NUMBER

TE Connectivity

A

R. VESTAL

S. ASHLEY

28OCT2003

NAME

HOUSING

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.3

0.30

-

PRODUCT SPEC

S. ASHLEY

APPLICATION SPEC

-

1 $

WEIGHT

-

SEE TABLE

1471-9 (3/11)

SEE TABLE

1.1 g

Customer Drawing

A2

00779

SIZE

PLUG HOUSING,

4 POSITION, RIGHT KEYED, .040 SERIES

MULTI-LOCK

CAGE CODE

DRAWING NO

RESTRICTED TO

1438465

SCALE

4:1

SHEET

1

OF

1

REV

-

A
