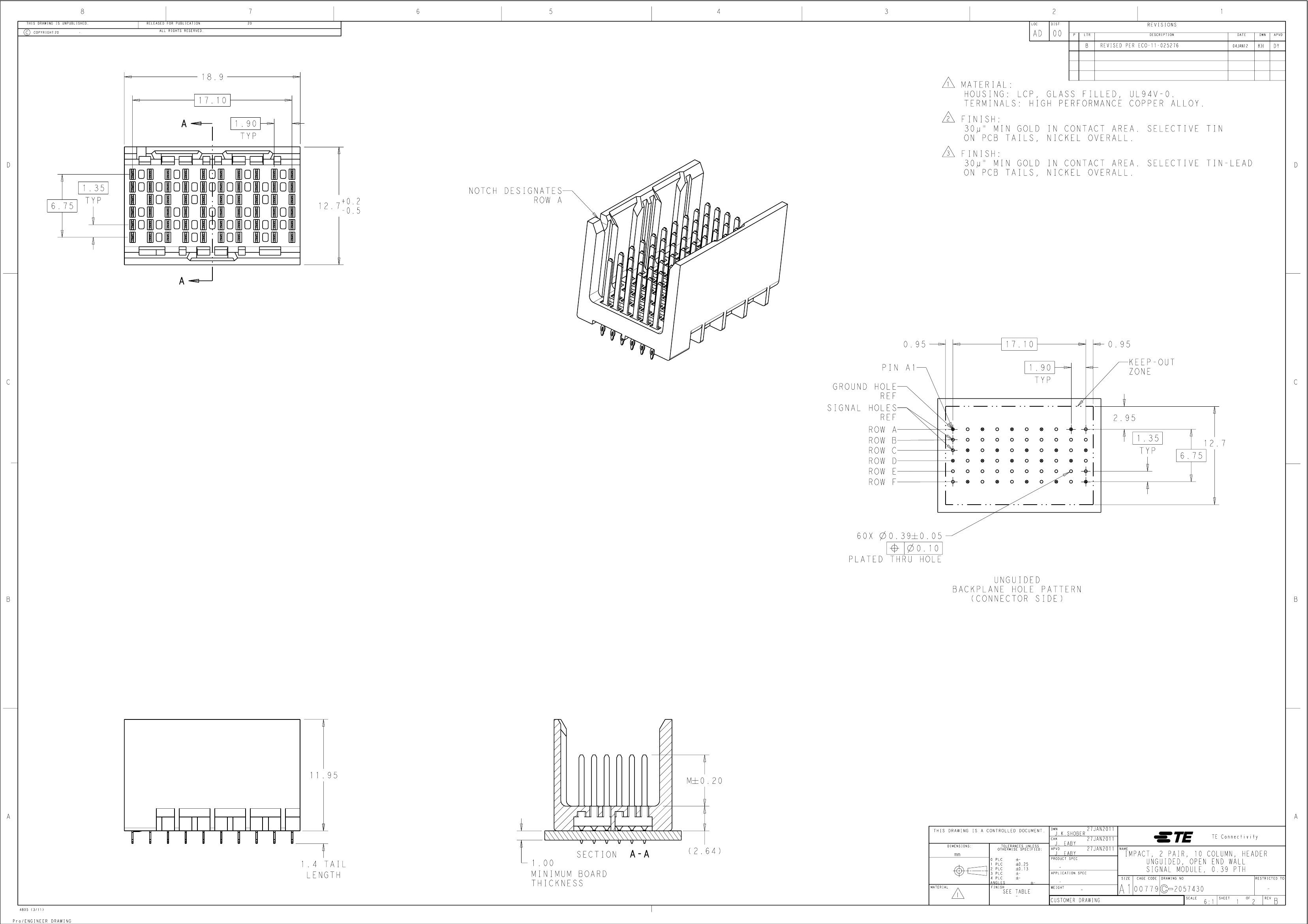

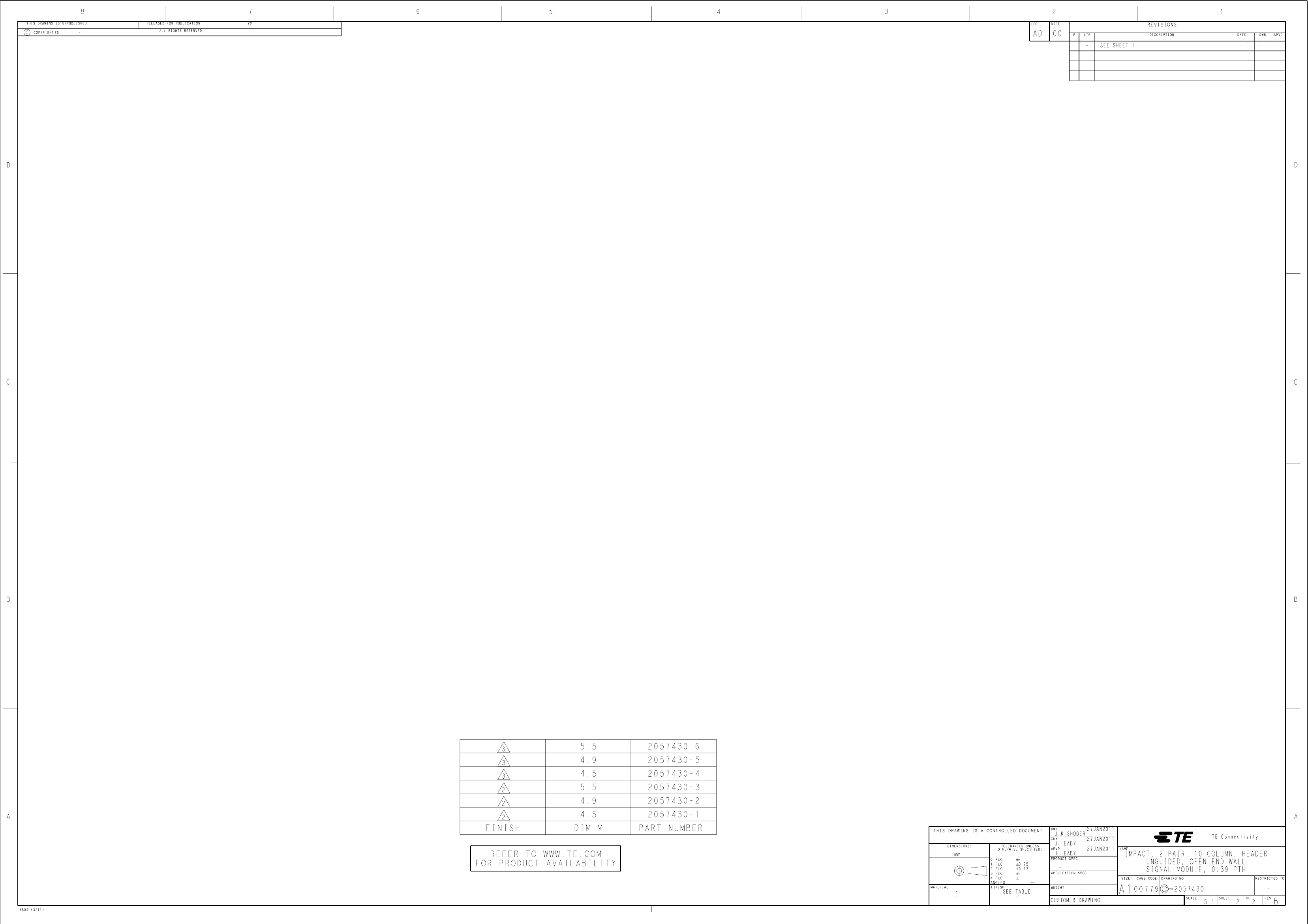

IMP100S,H,V2P10C,UG,OEW39,4.5
| Parameter Name | Attribute value |
| Connector System | Board to Board |
| Line spacing | 1.35 mm [ 0.053 in ] |
| Connector type | plug |
| with hood | Partially hooded |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | head |
| Signal arrangement | difference |
| Make first/break last | no |
| Number of signal positions | 40 |
| Stackable | no |
| Number of pairs | 20 |
| Number of Positions | 60 |
| Rows | 6 |
| Number of columns | 10 |
| Board-to-board configuration | vertical, right angle |
| PCB mounting direction | vertical |
| boot position | No boot |
| Number of grounding locations | 20 |
| Impedance (Ω) | 100 |
| Operating voltage (VDC) | 30 |
| Operating voltage (VAC) | 30 |
| Data rate (Gb/s) | 20 – 25 |
| Number of differential pairs per column | 2 |
| Terminal base material | copper alloy |
| Terminal base material | nickel |
| Terminal length | 4.5 mm [ .177 in ] |
| Contact Current Rating (Max) (A) | .75 |
| PCB terminal termination area plating material surface coating | matte |
| Terminal contact plating thickness | .76 µm [ 29.92 µin ] |
| Terminal termination area plating material | tin |
| Terminal design | double beam |
| Terminal contact plating material | gold |
| Terminal layout | Direct plug-in |
| Terminal type | Press fit |
| PCB terminal termination area plating thickness | .76 – 1.52 µm [ 30 – 60 µin ] |
| Terminal conduction (typ.) | signal (data) |
| Base plate material thickness | 1.27 µm [ 50 µin ] |
| Terminal type | Pin |
| PCB Termination Methods | Through hole - solderless connection |
| PCB mounting fixation type | Function/Standard-compliant tail |
| PCB installation and fixation | with |
| rail hardware | Without |
| joint alignment | with |
| Joint alignment type | polarization |
| Connector mounting type | board mounting |
| joint fixation | Without |
| Centerline (Pitch) | 1.9 mm [ .075 in ] |
| End wall position | Open type |
| Shell color | black |
| Shell material | LCP - GF (Liquid Crystal Polymer) |
| PCB Hole Diameter | .39 mm [ .015 in ] |
| length | 18.9 mm [ .744 in ] |
| tail length | 1.4 mm [ .055 in ] |
| width | 12.7 mm [ .5 in ] |
| PCB thickness (recommended) (mm) | 1 |
| high | 11.95 mm [ .47 in ] |
| Working group temperature range | -55 – 85 °C [ -67 – 185 °F ] |
| Circuit Application | Signal |
| Applicable to | Female components |
| Obtain CSA certification | yes |
| UL rating | Recognized |
| UL file number | E28476 |
| UL flammability rating | UL 94V-0 |
| Encapsulation method | Packaging, boxes and tubes |
