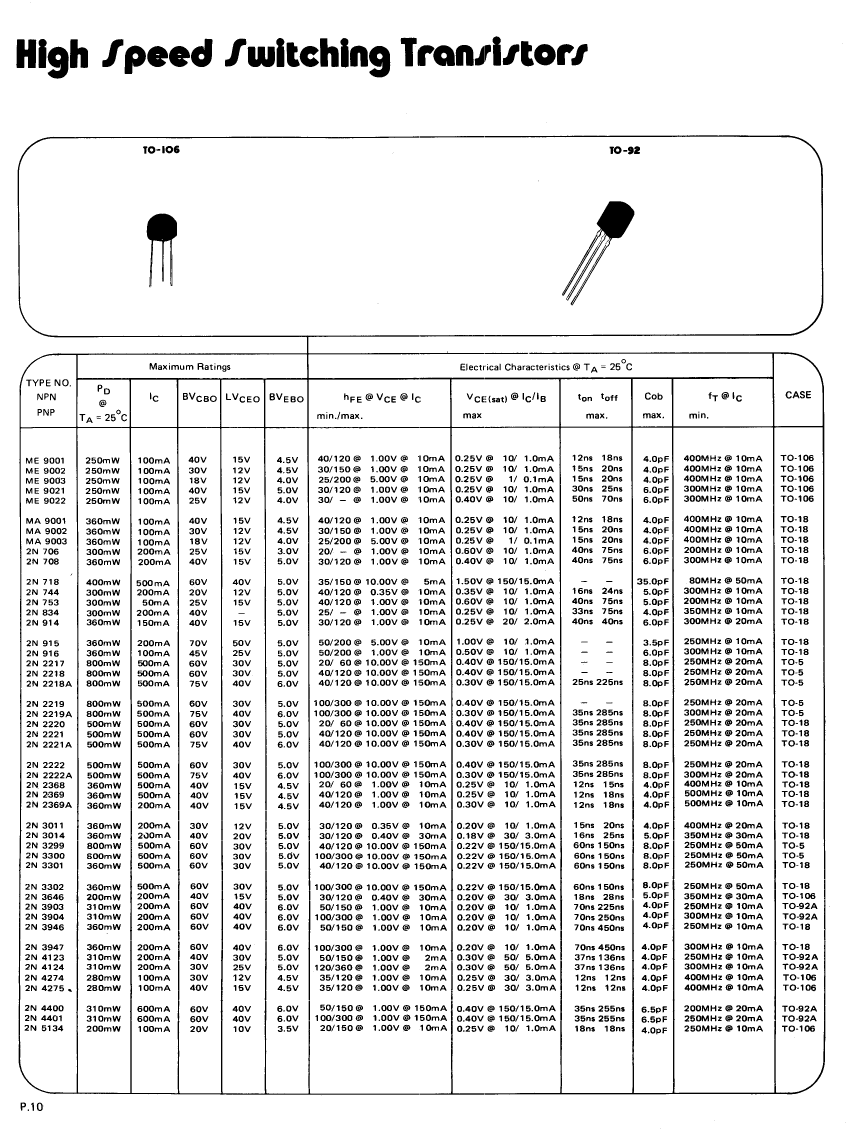

Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-18, TO-18, 3 PIN
| Parameter Name | Attribute value |
| Maker | Micro Electronics |
| Parts packaging code | BCY |
| package instruction | CYLINDRICAL, O-MBCY-W3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.5 A |
| Collector-emitter maximum voltage | 30 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 100 |
| JEDEC-95 code | TO-18 |
| JESD-30 code | O-MBCY-W3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 175 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 1.8 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 250 MHz |
| Base Number Matches | 1 |
| 2N3302 | 2N3300 | 2N2368 | 2N916 | 2N3646 | |
|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-18, TO-18, 3 PIN | Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN | Small Signal Bipolar Transistor, 0.5A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-18, TO-18, 3 PIN | Small Signal Bipolar Transistor, 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-18 | Small Signal Bipolar Transistor, 0.2A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-106, TO-106, 4 PIN |
| package instruction | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W4 |
| Reach Compliance Code | unknown | unknow | unknow | unknow | unknow |
| Collector-emitter maximum voltage | 30 V | 30 V | 15 V | 25 V | 15 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 100 | 100 | 20 | 50 | 30 |
| JEDEC-95 code | TO-18 | TO-39 | TO-18 | TO-18 | TO-106 |
| JESD-30 code | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W4 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 4 |
| Maximum operating temperature | 175 °C | 175 °C | 200 °C | 200 °C | 125 °C |
| Package body material | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Maximum power dissipation(Abs) | 1.8 W | 3 W | 0.36 W | 1.2 W | 0.2 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 250 MHz | 250 MHz | 400 MHz | 300 MHz | 350 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Parts packaging code | BCY | TO-39 | BCY | - | BCY |
| Contacts | 3 | 3 | 3 | - | 3 |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Maximum collector current (IC) | 0.5 A | 0.5 A | 0.5 A | - | 0.2 A |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | - | SWITCHING |
