Part Number

Search

30070-0815

Description

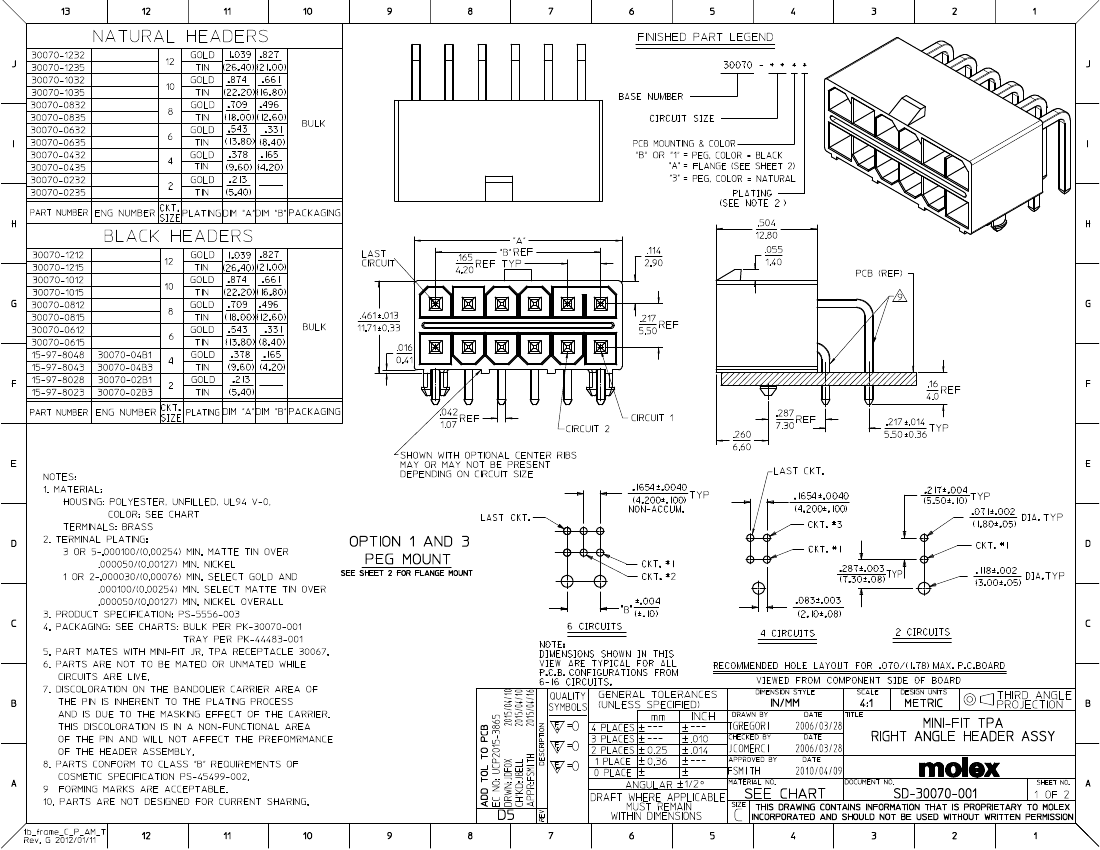

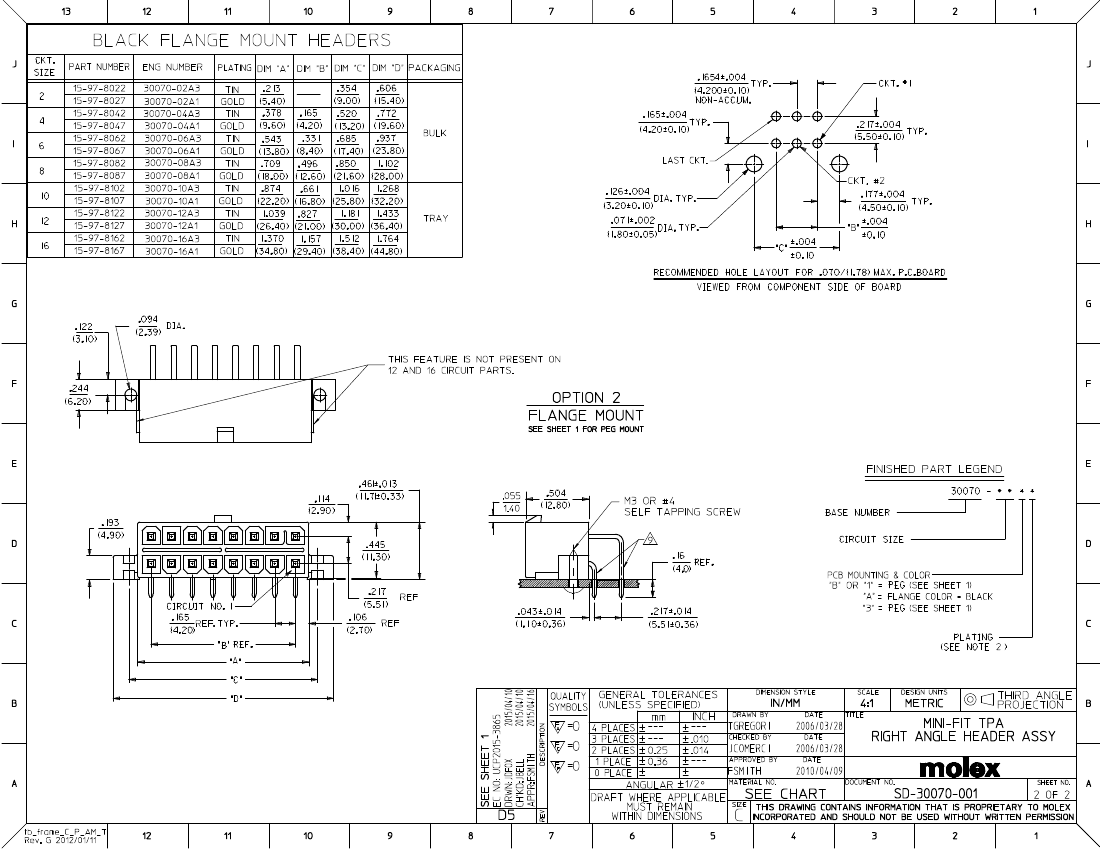

Board Connector, 8 Contact(s), Right Angle, Solder Terminal, Locking,
CategoryThe connector    The connector
File Size264KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

30070-0815 Overview

Board Connector, 8 Contact(s), Right Angle, Solder Terminal, Locking,

30070-0815 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codecompliant
body width0.461 inch
subject depth0.764 inch
Connector typeBOARD CONNECTOR
Contact arrangementS0P8
Contact completed and terminatedTIN OVER NICKEL
Contact materialBRASS
Contact styleSQ PIN-SKT
insulator materialPOLYESTER
Manufacturer's serial number30070
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.16 inch
Termination typeSOLDER
Total number of contacts8
Base Number Matches1

30070-0815 Related Products

30070-0815 30070-0432 30070-1015
Description Board Connector, 8 Contact(s), Right Angle, Solder Terminal, Locking, Board Connector, 4 Contact(s), Right Angle, Solder Terminal, Locking Board Connector, 10 Contact(s), Right Angle, Solder Terminal, Locking,
Maker Molex Molex Molex
Reach Compliance Code compliant unknown compliant
body width 0.461 inch 0.461 inch 0.461 inch
subject depth 0.764 inch 0.764 inch 0.764 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S0P8 S0P4 S0P10
Contact completed and terminated TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL
Contact material BRASS BRASS BRASS
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
insulator material POLYESTER POLYESTER POLYESTER
Manufacturer's serial number 30070 30070 30070
Mixed contacts YES YES YES
Installation option 1 LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.16 inch 0.16 inch 0.16 inch
Termination type SOLDER SOLDER SOLDER
Total number of contacts 8 4 10
