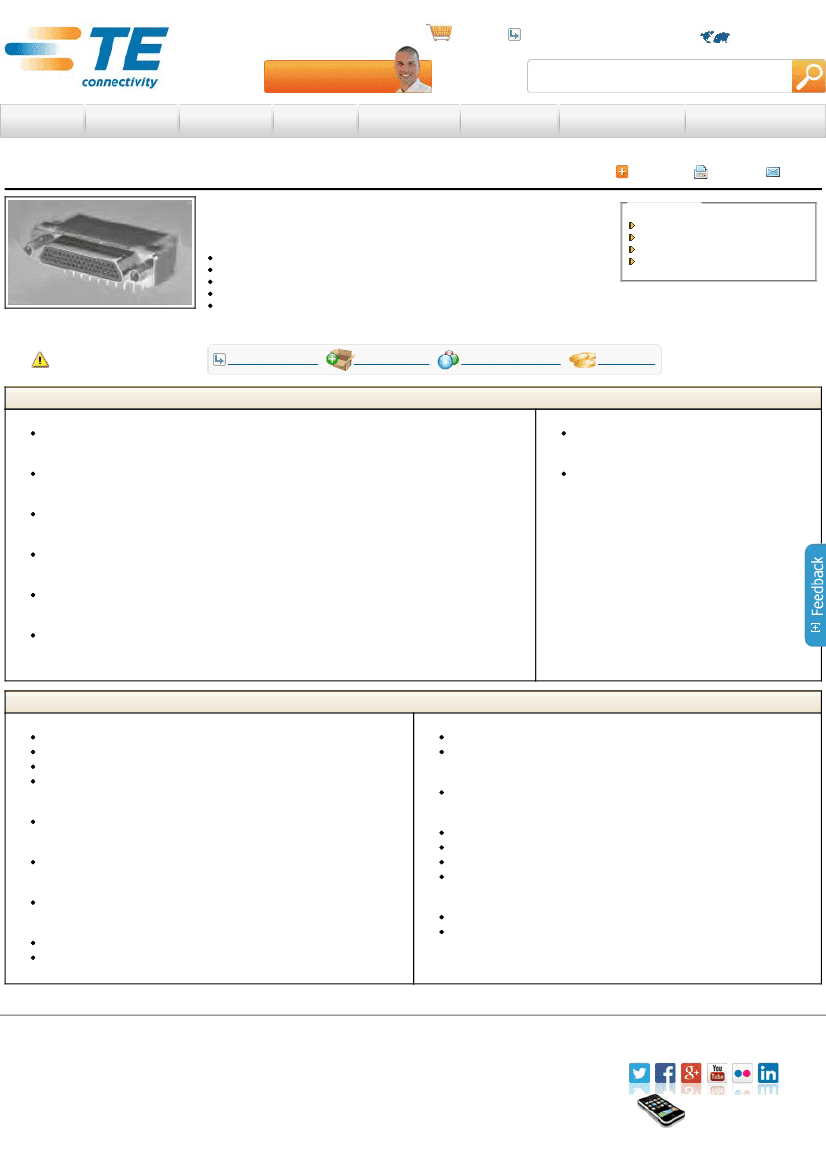

M83513/15H01CP Product Details
Microminiature D Connectors
Not EU RoHS or ELV Compliant
Share
Print
Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
Connector
Connector Design = PCB Connector
Connector Style = Receptacle
Contact Type = Socket
Product Series = MCK (Full Metal)
M83513/15H01CP
(315321268)
TE Internal Number: 315321268
View all Features
Pending Obsolescence
Contact Product Information Center
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
MCKC2P100SRT1 (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Design = PCB Connector
Product Series = MCK (Full Metal)
PCB Mounting Orientation = Right Angle
Mechanical Attachment:
Mounting Hardware = Jackpost Assembly
Termination Features:
Termination Post Length (mm [in]) = 2.77 [0.109]
Body Features:
Shell Plating = Cadmium, Yellow Chromate
Contact Features:
Contact Type = Socket
Contact Style = Printed Circuit Board
Housing Features:
Connector Style = Receptacle
Housing Material = Polyphenylene Sulfide (PPS)
Configuration Features:
Number of Positions = 100
Industry Standards:
Government/Industry Qualification = Yes
Government/Industry Part Number = M83513/15H01CP
RoHS/ELV Compliance = Not ELV/RoHS compliant
Lead Free Solder Processes = Not suitable for lead free processing
Other:
Brand = Microdot
Comment = Also available in commercial grade.
