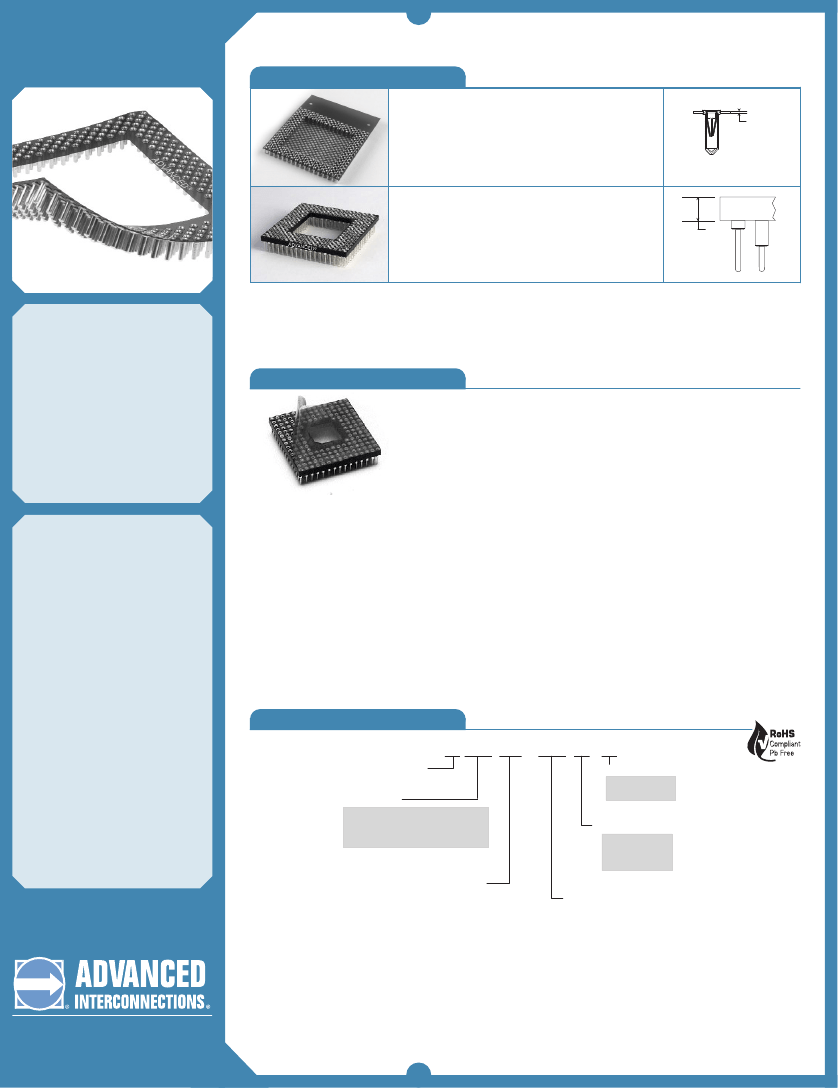

PGA Sockets
Table of Models

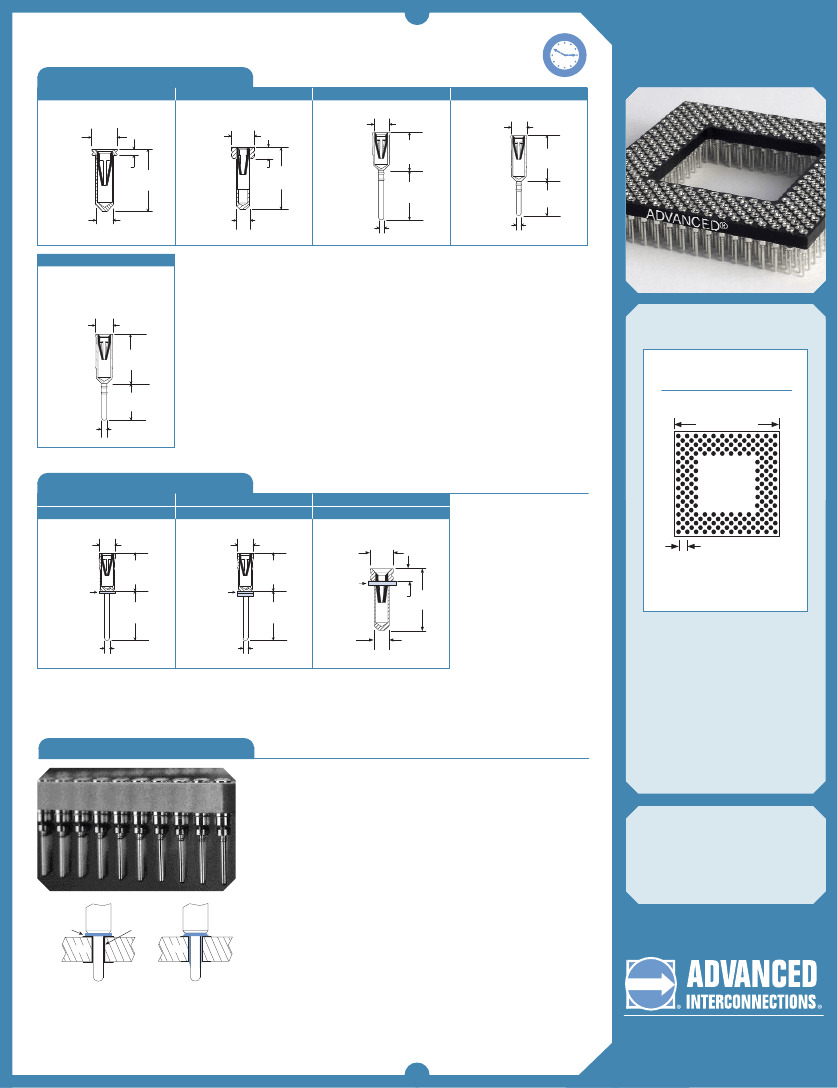

Interstitial PGA Sockets
Low Insertion Force .100/(2.54mm) Staggered Grid
Description:
Peel-A-Way
®
(KSX)
Material: Polyimide Film
Index: -269°C to 400°C (-452°F to 752°F)
.005 Typ.
(.13)
Type -210
Shown
Description:
Molded (RSX)
Mat’l: High Temp. Liquid Crystal Polymer (LCP)
Index: -40°C to 260°C (-40°F to 500°F)
Molded
Body
.100
(2.54)
Type -235
Shown
RSX replaces CSX.
Features:
• Low insertion force (1 oz. average
per pin).
• Screw-machined terminals with
multi-finger contacts for reliability.
• Closed bottom terminal for 100%
anti-wicking of solder.
• Tapered entry for ease of
insertion.
• Custom designs available.
Options
Tape Seal - add 3M to end of part number
• Removable tape seal protects plated contact in harsh environments
• Sealed socket will not allow dirt and other contaminants to enter
socket chamber and become entrapped behind contact fingers
• Spray flux without contaminating contact area
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Contacts:
Beryllium Copper
(C17200) ASTM-B-194
Solder Preform:
Standard: 63Sn/37Pb
Lead-free: 95.5Sn/4.0Ag/0.5Cu
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Gold per ASTM-B-488
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
Material
Silicone Backed Polyimide Film, -74°C to 260°C (-100°F to 500°F)
Intermittent to 371°C (700°F)
How To Order
1 RSX 503 - 234
Footprint Dash #
If Applicable
*
Body Type
RoHS Compliant Insulators:
®
KSX - Peel-A-Way
M
G
Contact Plating
RoHS Compliant:
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
RSX - Hi-Temp Molded LCP
Number of Pins
004 to 2209
*Footprints available online
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options on next page
Note: Terminals plated with Matte Tin are available only with Gold plated contacts.
Quick-Turn delivery is not available on products with Matte Tin plating.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16
rev. Sept. 07
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Interstitial PGA Sockets
Low Insertion Force .100/(2.54mm) Staggered Grid
Standard Quick-Turn Terminals
Type -210
Peel-A-Way
®
only
.058 Dia.
(1.47)
QU
5D
K-TU
IC
Additional standard and custom terminals available.
See Terminals section or consult factory.
Type -234
Molded only
.059 Dia.
(1.50)
.165
(4.19)
AY
D
E
LI
V
Type -176
Peel-A-Way
®
only
.058 Dia.
(1.47)
Type -82
Molded only
.059 Dia.
(1.50)
.015
(.38)
.155
(3.94)
.031
(.79)
.165
(4.19)
.155
(3.95)
.180
(4.57)
.125
(3.18)
.018 Dia.
(.46)
.034 Dia.
(.86)
.034 Dia.
(.86)
.018 Dia.
(.46)
Type -235
Molded only
4 standoffs per socket
Type -234 used in
remaining positions
.059 Dia.
(1.50)
ER
Y
5
PGA Sockets
RN
Footprints:
.209
(5.31)
180 Pins
Footprint Number 180
1.200 Sq.
(30.48)
.136
(3.45)
.018 Dia.
(.46)
Solder Preform Terminals
Tin/Lead: Type -311
Lead-free: Type -813
Molded only
.059 Dia.
(1.50)
.165
(4.19)
Tin/Lead: Type -313
Lead-free: Type -814
Molded only
.056 Dia.
(1.42)
.165
(4.19)
Tin/Lead: Type -432
Lead-free: Type -815
Peel-A-Way
®
only
.058 Dia.
(1.47)
Solder
Preform
.031
(.79)
.155
(3.94)
.100/(2.54) Typ.
Solder
Preform
.180
(4.57)
2 Solder
Preforms
.250
(6.35)
23 x 23 rows
.018 Dia.
(.46)
.018 Dia.
(.46)
.038 Dia.
(.96)
• Full grid insulators loaded to your
specific footprint.
• Open centers available upon
request (consult factory).
• Hundreds of footprints available
online.
Intrusive Reflow Application
Solder Preform Terminals
• Combines the labor of socket loading and solder
application into one operation.
• Eliminates the use of solder paste and screening
operation.
• Eliminates solder bridges and/or solder shorts
due to excess solder.
SOLDER
PREFORM
PLATED THRU
HOLE (PTH)
• Use our online Build-A-Part
feature or download a Footprints
Booklet in PDF format.
Available Online:
• Extraction Tools
• RoHS Qualification Test Report
• CAD Drawings
• Ensures a reliable solder joint with controlled
solder volume.
PCB
PCB
• Ideal for surface mount and mixed technology
applications.
• For custom solder preform terminal applications
consult factory.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16
rev. Sept. 07
BEFORE REFLOW
AFTER REFLOW
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
