5300-319-272-71 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5300-319-272-71

Preview

5300-319-272-71: DescriptionUSB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerTekcon Electronics Corp; Environmental Compliance

Download Datasheet Parametric View All

5300-319-272-71 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

5300-319-272-71 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknown
Board mount options	LOCATING POSTS
body width	0.24 inch
subject depth	0.335 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	COPPER ALLOY
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

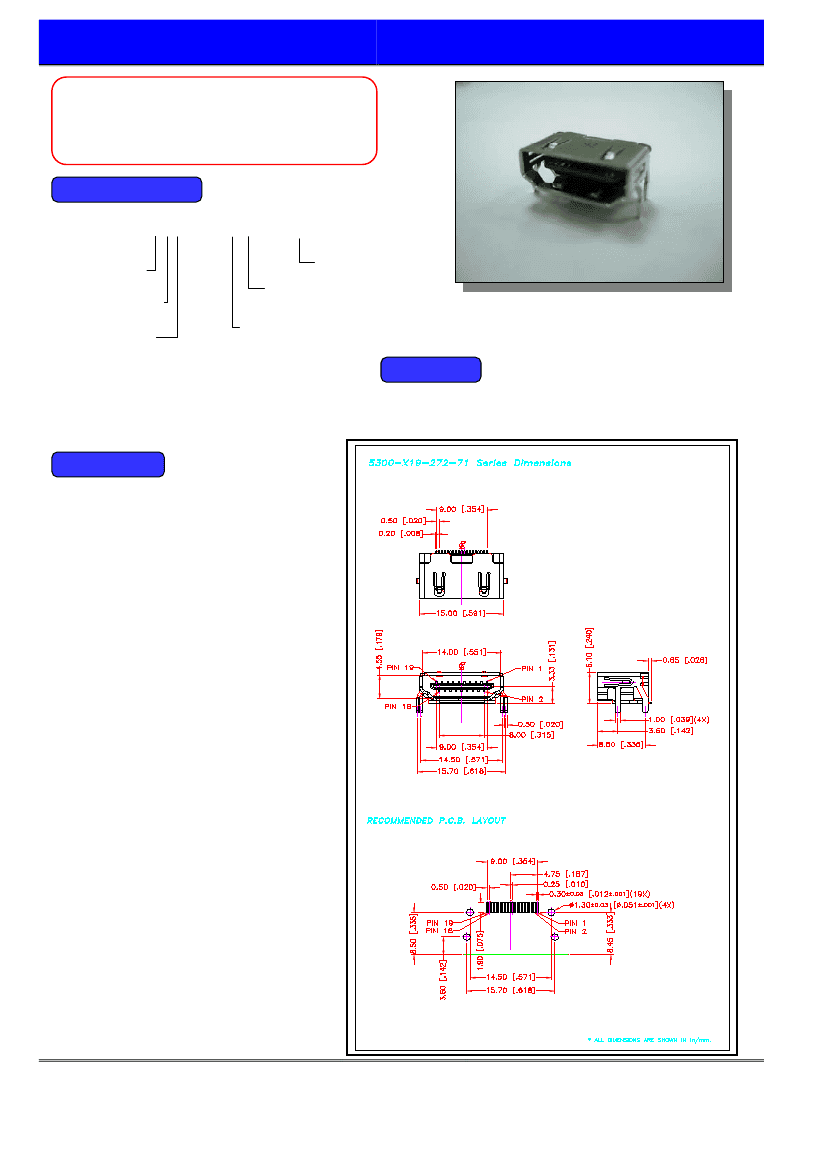

TEKCON

®

5300 Series

HDMI RECEPTACLE R/A SHORT BODY

SMT TYPE 19PIN WITHOUT FLANGE

Ordering Information

http://www.tekcon.com.tw

5300 - X19 - 272 – 71

Contact Area Plating:

0:Gold/Flash/Tin

5:15u”Gold/Tin

3:30u”Gold/Tin

Shell Plating;

50u’’ Ni Underplating ,

100u” Tin Plating at solder Ar

ea

71：ROHS

Packing Type:2- Tape Reel

No of Contact：

19PIN

27:Tail :R/A SMT Type

Shell:DIP Type without Flange

Housing:Without post

Dimensions

Specification

Material:

♦

Insulator:

Thermoplastic UL 94V-0

Color：Black

♦

Contact:

Copper Alloy

♦

Shell：Copper

Alloy

Electrical:

♦

Contact Current Rating: 0.5

A.

♦

Rated voltage:40V AC.

♦

Dielectric Withstanding Voltage:

500V AC

♦

Contact Resistance:

Contact (30 Milliohms Max.)

Shell (50 Milliohms Max.)

♦

Insulation Resistance:

100 Megaohms Min.(Unmated)

10 Megaohms Min.(Mated)

Mechanical:

♦

Insertion Force:4.5Kg

f

(MAX)

♦

Withdrawal Fore: 0.5 Kg

f

~ 4.0 Kg

f

♦

Durability：10,000 Cycles.

Enviromental:

♦

Temperature range:

-20℃ to + 85℃

All Dimensions are shown in in/mm.

The above ordering data is for our standard products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.
