FT100-03-105140 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FT100-03-105140

FT100-03-105140: Description3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size56KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric View All

FT100-03-105140 Overview

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

FT100-03-105140 Parametric

Parameter Name	Attribute value
Maker	Grayhill
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	F
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

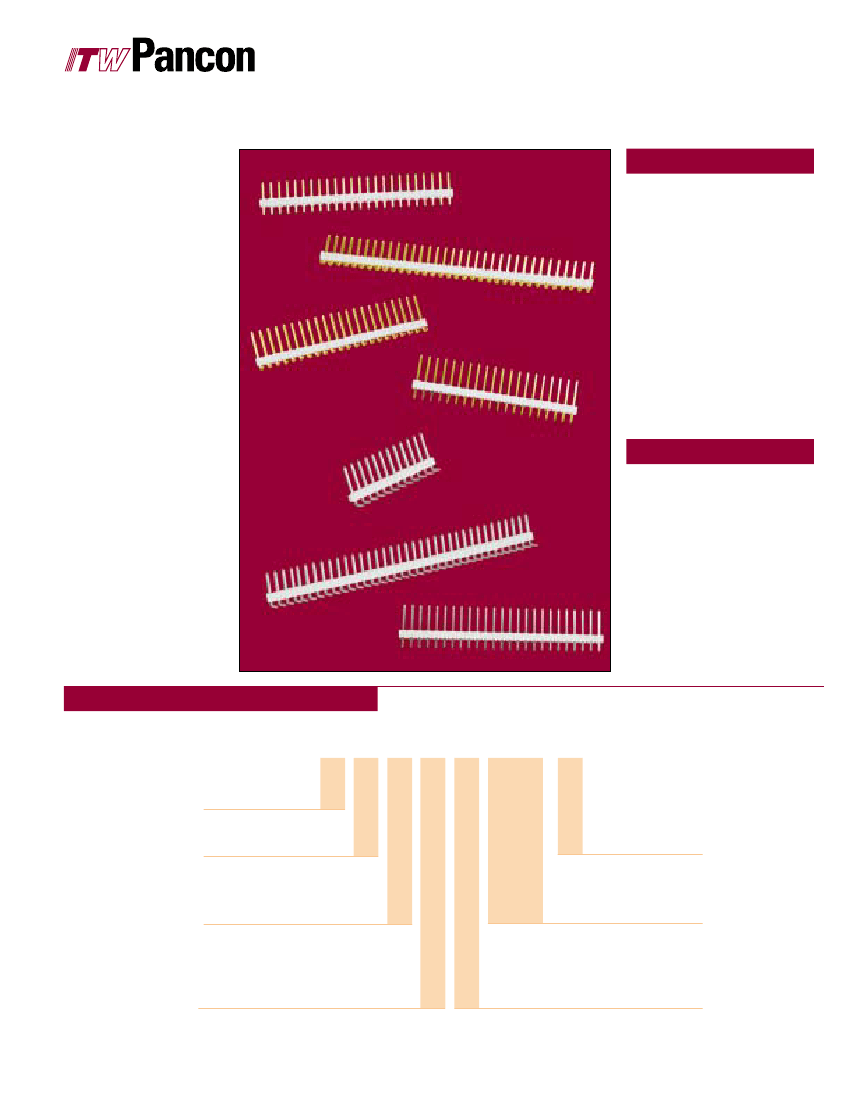

MAS-CON

Flat Headers

With Custom Length Pins

ITW Pancon is

pleased to introduce

Mas-Con Flat

Headers with Custom

length pins. These

headers have .100”

spacing between

circuits and mate

with Mas-Con IDC

connectors as well as

similar industry

standard connectors.

APPLICATIONS

These Flat Headers with custom

length pins can be mated with

our standard Mas-Con IDC

sockets or with a variety of other

.100” pitch connectors. The

custom lengths allow for a

variety of uses in many industry

standard applications. The break-

to-length feature makes these

headers extremely adaptable to

many applications

FEATURES

Custom length pins allow for a

variety of mating applications.

The header wafer is breakable,

allowing for greater flexibility and

less inventory.

High quality copper alloy pins

can be plated in tin or gold

Available in straight or right angle

styles.

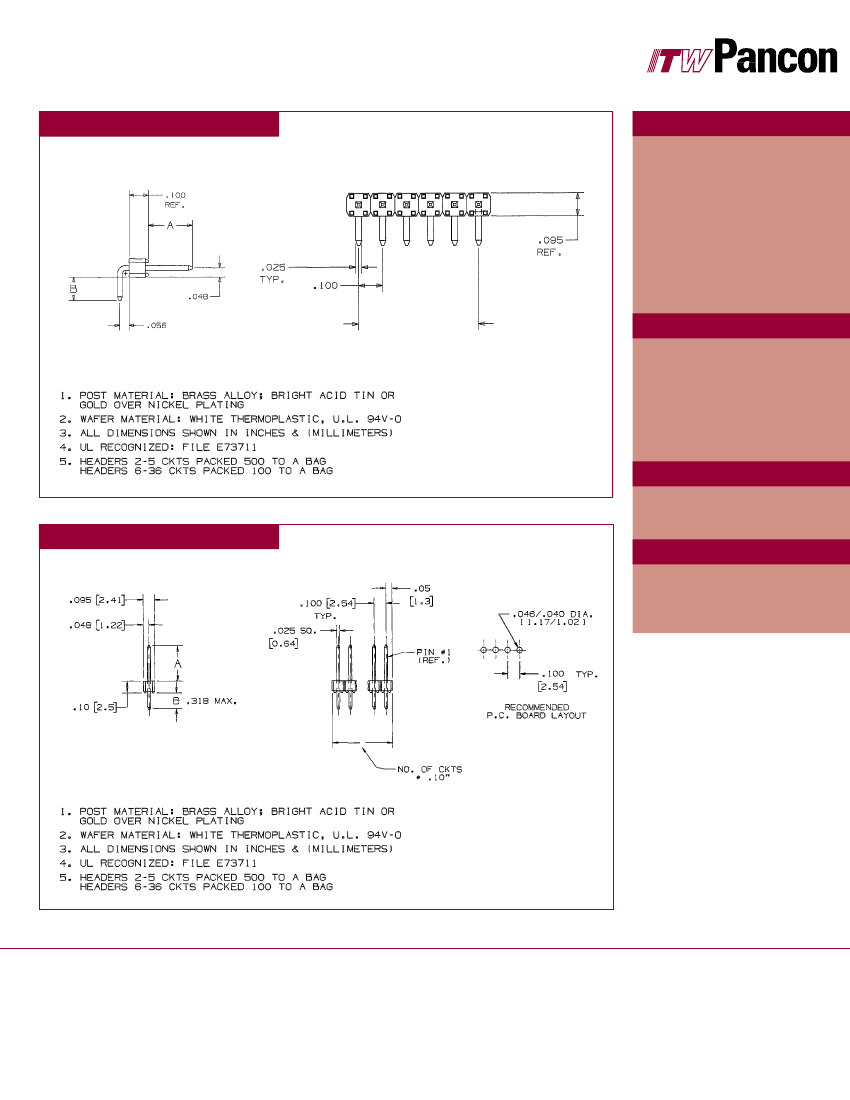

PART NUMBER SYSTEM

FLAT HEADER

T 100

36 - 240

120

T=Tin

PLATING

B=Gold

TAIL LENGTH =

.120” - .140”

MATING LENGTH

STRAIGHT = .105” - .685”

ANGLED = .105” - .318”

SPACING .100”

STYLE

(-) STRAIGHT PINS

(A) ANGLED PINS

NO. OF CIRCUITS (2-36)

Contact factory for part availability
