55PC1126-24-9/96-9 datasheet, PDF

55PC1126-24-9/96-9: Description55PC1126-24-9/96-9; CategoryWire/cable; File Size56KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

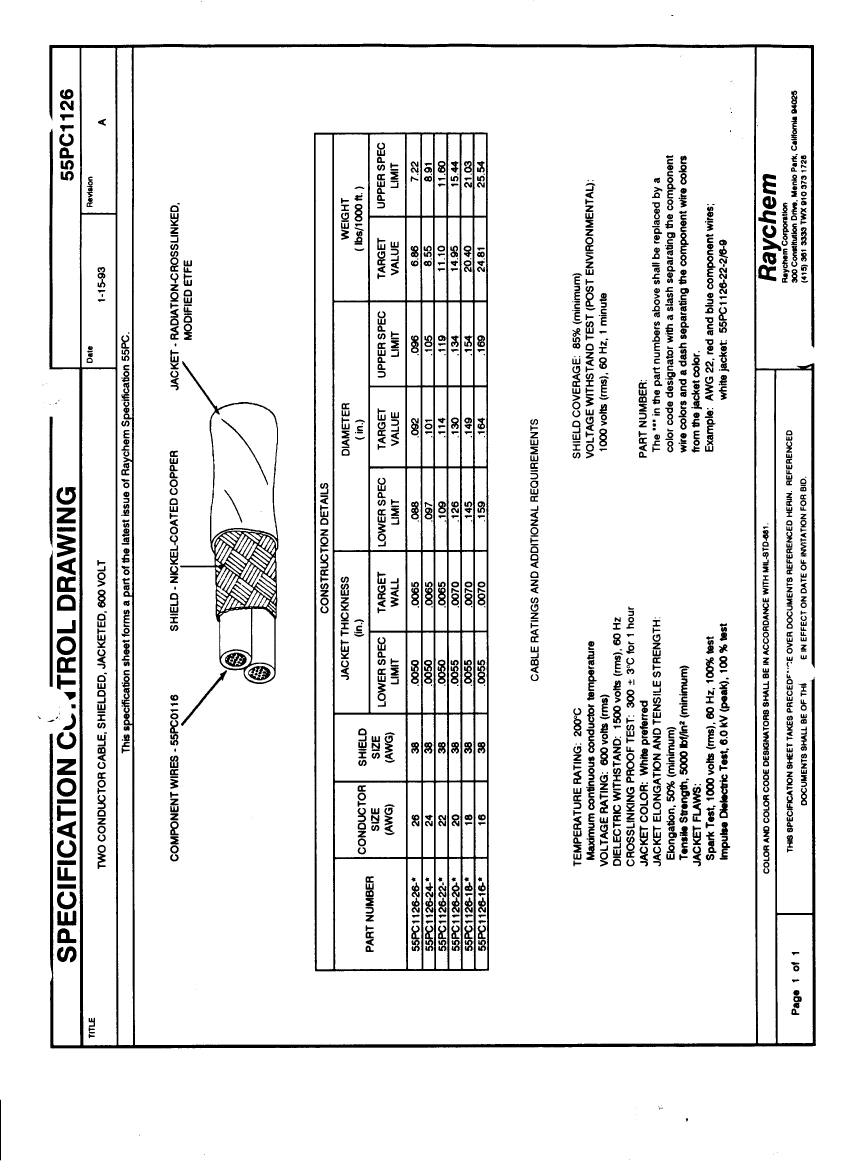

55PC1126-24-9/96-9 Overview

55PC1126-24-9/96-9

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of conductors	2
Rated voltage (V)	600
shielding material	nickel plated copper, nickel plated copper
Insulating sleeve color	White
Wire color	White, white with blue stripes
conductor material	Nickel-plated high-strength copper alloy, Nickel-plated high-strength copper alloy
Shield size (AWG)	38
Overall outer diameter	2.57 mm [ .101 in ]
Wire size (AWG)	24
Wire diameter	.9 mm [ .0355 in ]
Operating temperature range (°C)	-65 – 200
Wire source	USA

	55PC1126-24-9/96-9	55PC1126-22-9/96-9	55PC1126-20-9/96-9
Description	55PC1126-24-9/96-9	55PC1126-22-9/96-9	55PC1126-20-9/96-9
Rated voltage (V)	600	600	600
shielding material	nickel plated copper, nickel plated copper	nickel plated copper, nickel plated copper	nickel plated copper, nickel plated copper
Insulating sleeve color	White	White	White
conductor material	Nickel-plated high-strength copper alloy, Nickel-plated high-strength copper alloy	Nickel-plated high-strength copper alloy, Nickel-plated high-strength copper alloy	Nickel-plated high-strength copper alloy, Nickel-plated high-strength copper alloy
Wire size (AWG)	24	22	20
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200
Cable type	Sheathed shield winding braid	Sheathed shield winding braid	Surround braided shield and jacket
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	-
Number of conductors	2	2	-
Wire color	White, white with blue stripes	White, white with blue stripes	-
Shield size (AWG)	38	38	-
Overall outer diameter	2.57 mm [ .101 in ]	2.9 mm [ .114 in ]	-
Wire diameter	.9 mm [ .0355 in ]	1.05 mm [ .041 in ]	-
Wire source	USA	USA	-
