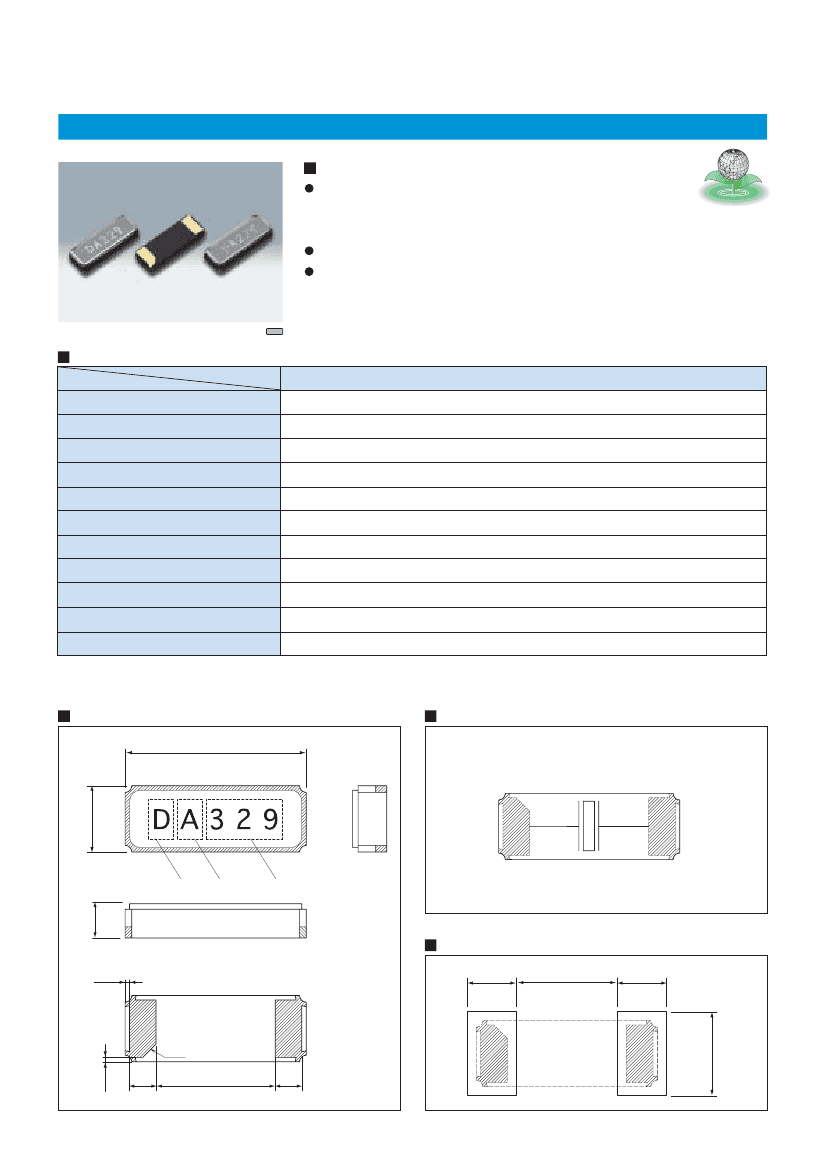

SMD Type Tuning Fork Crystal Resonators
DST410S
Features
SMD tuning fork crystal resonator with size 4115
and thickness 0.75mm. Miniature, thin,
and lightweight.
High precision and reliability with ceramic package.
Suitable for various applications, particularly mobile
telecommunications equipment.
Actual size
Completely Lead-Free
Generic Specification
Item
Frequency Range
Vibration Mode
Load Capacitance
Drive Level
Frequency Tolerance
Series Resistance
Parabolic Temperature
Two Dimensional Temperature Constant
Operating Temperature Range
Storage Temperature Range
Shunt Capacitance
Packing Unit : 3000pcs./reel（φ180）
Type
DST410S
32.768kHz
Fundamental
Series ,9pF, 12pF
0.2μW(1.0μW max.)
±20×10
-6
, ±30×10
-6
(at 25℃)
80kΩmax.
＋25℃±5℃
−0.04×10
-6
/℃
2
max.
−40℃∼＋85℃
−40℃∼＋85℃
1.5pF Typ.
Consult our sales representative for other specifications.
Dimensions[mm]
4.1±0.1
Internal Connections
〈Top View〉
1.5 ± 0.1
Logo
0.75 ± 0.1
Frequency
Lot No.
Recommended Land Pattern
2-0.1
1.1
2.3
1.1
[mm]
C0.3
2-0.1
0.6
(2.7)
0.6
1.9
