2829040-4

Description
QSFP IB EDR, 30AWG, 1.0M
CategoryWire/cable
File Size265KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

2829040-4 Online Shopping

Suppliers Part Number Price MOQ In stock
2829040-4 - - View Buy Now

2829040-4 Overview

QSFP IB EDR, 30AWG, 1.0M

2829040-4 Parametric

Parameter NameAttribute value
Harness categoryhigh speed
Cable assembly typepluggable/direct connect
shieldyes
Connector type (A-side)QSFP
Connector type (B side)QSFP
Cable typeMadison TurboTwin - Ring Jacket
key positionno
Contacts8 wire pairs, 8 wire pairs
Number of signal positions16
keyingno
ConfigurationDouble ended
Impedance (Ω)100
Data rate (Gb/s)25
balancedno
colorblack
Wire size (AWG)30
Wire size (mm²).051
Overall cable outer diameter9.53 mm
Halogen-freeyes
Flammability levelCL2
Cable assembly length1 m [ 3.281 ft ]
CLOUDSPLITTERno
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
7
-
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
copyright_date -
BY
C1
D
REDRAWN INTO CREO
REV PER ECO-17-011219
27JUL2017
02AUG2017
TS
TS
EC
EC
38
1
1
LABEL
1
LABEL
38
1
D
20
19
115 12
2 PLC
20
PULL TAB
19
D
P1
CABLE, 100 OHM
BLACK
P2
DIRECT ATTACH QSFP
C
C
"L"
1
LABEL INFORMATION: -1 SHOWN.
TE LOGO
B
TE PART NUMBER
LENGTH - CABLE GAGE
DATE CODE - SERIAL NUMBER
BAR CODE
COUNTRY OF ORIGIN
B

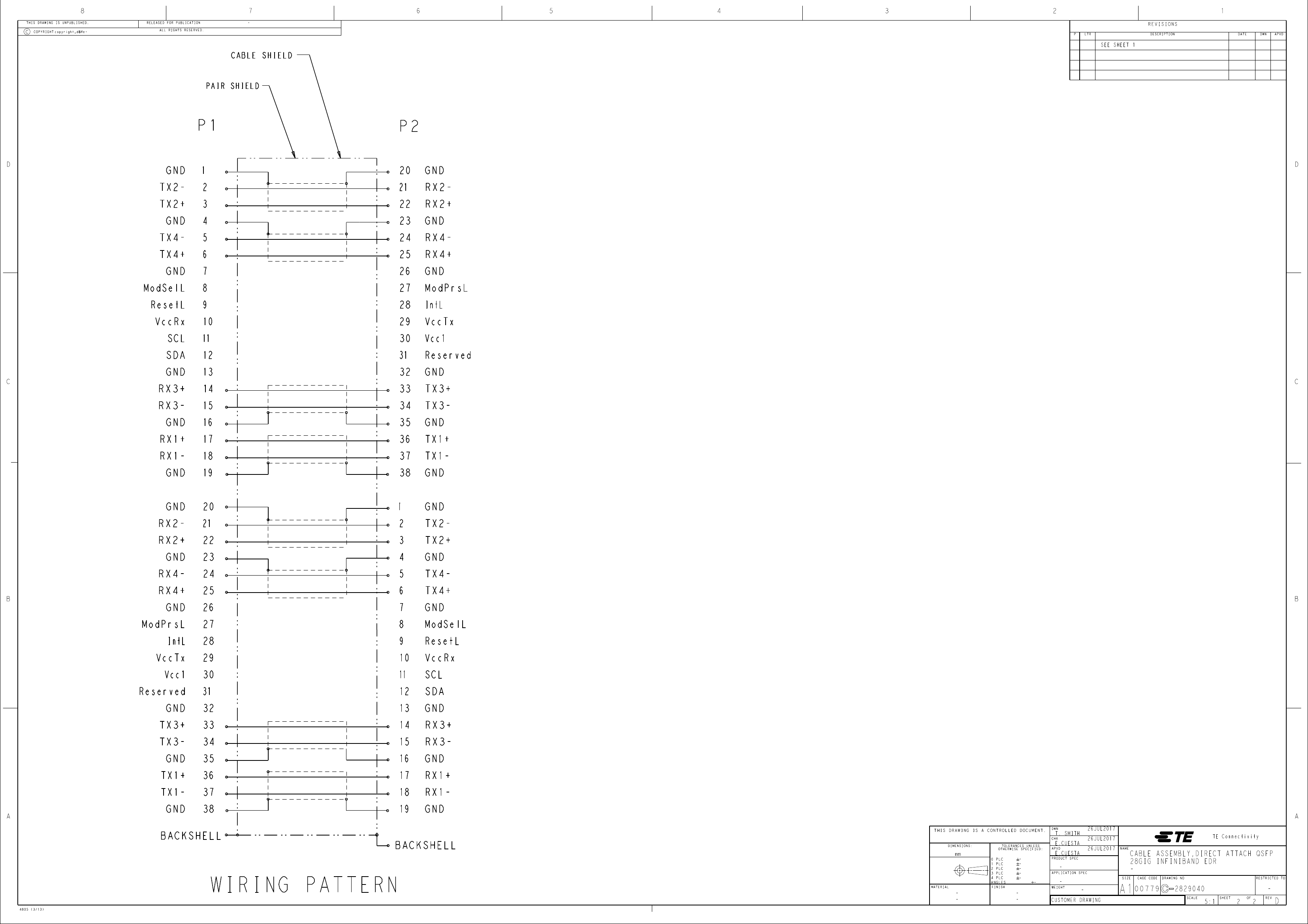

2. SEE SHEET 2 FOR WIRING SCHEMATIC.
3. PRODUCT AND PROCESSING MEETS THE REQUIREMENTS OF
TE SPECIFICATION TEC-138-702.
4. EEPROM DOES NOT INCLUDE PAGE SWAPPING.
5. TEST IN ACCORDANCE WITH INFINIBAND EDR.
OBSOLETE
OBSOLETE
2821912-4
2821912-4
2821912-2
2821912-2
2821912-2
2821912-2
2821912-1
A
HOT MELT
CONFIGURATION
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
24
24
26
26
30
30
30
30
33
33
GAGE
T. SMITH
E.CUESTA
E.CUESTA
-
-
26JUL2017
26JUL2017
26JUL2017
NAME
4000 +80/-0
3000 +80/-0
3000 +80/-0
2000 +80/-0
2000 +80/-0
1500 +50/-0
1000 +50/-0
500 +50/-0
1000 +50/-0
500 +50/-0
1-2829040-0
2829040-9
2829040-8
2829040-7
2829040-6
2829040-5
2829040-4
2829040-3
2829040-2
2829040-1
2821912-1
"L" mm
PART NO
TE Connectivity
A
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
PRODUCT SPEC
APPLICATION SPEC
-
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE

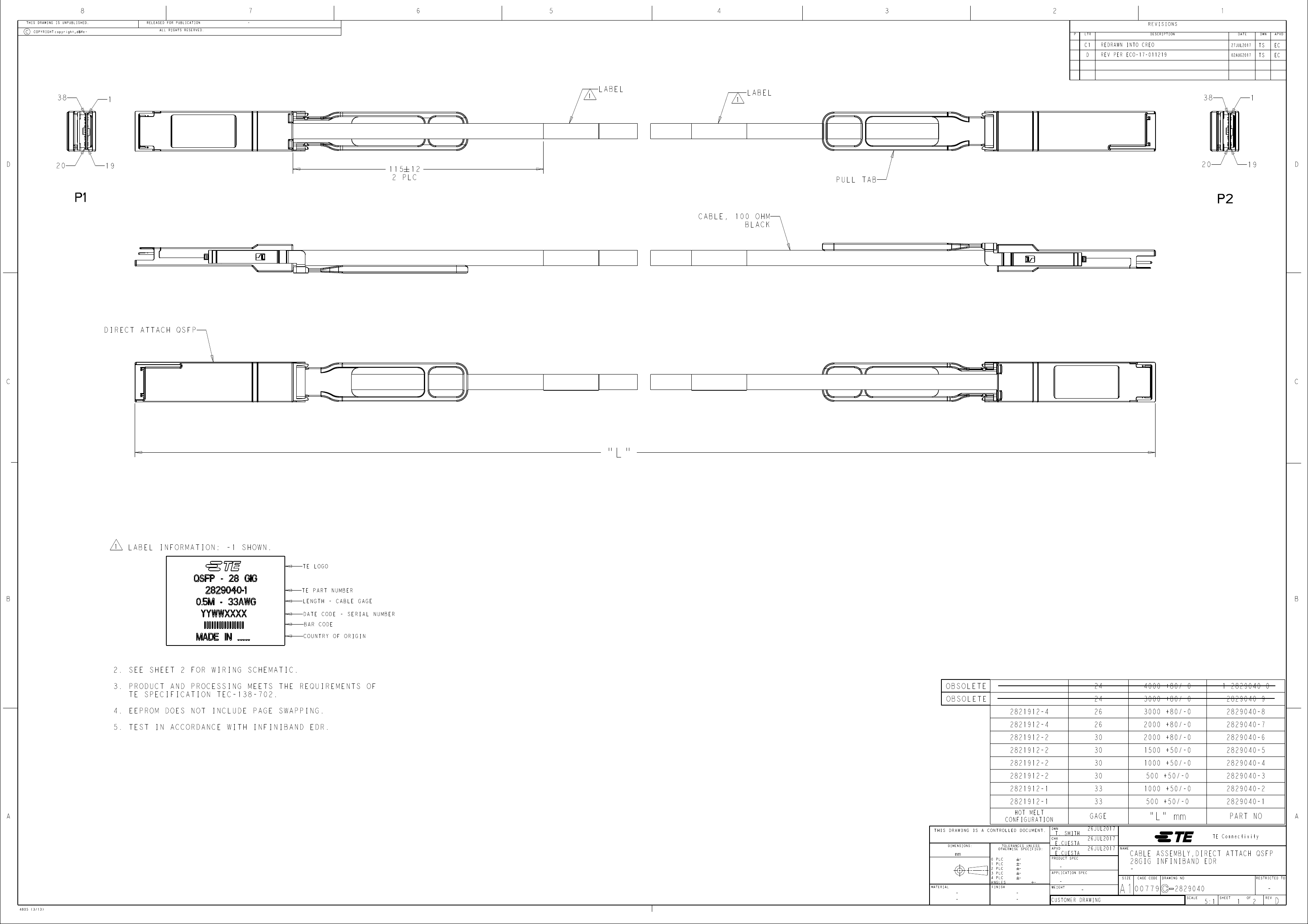

CABLE ASSEMBLY,DIRECT ATTACH QSFP
28GIG INFINIBAND EDR
-
CAGE CODE
DRAWING NO
RESTRICTED TO
2829040
SCALE
4805 (3/13)
5:1
SHEET
1
OF
2
REV
-
D
