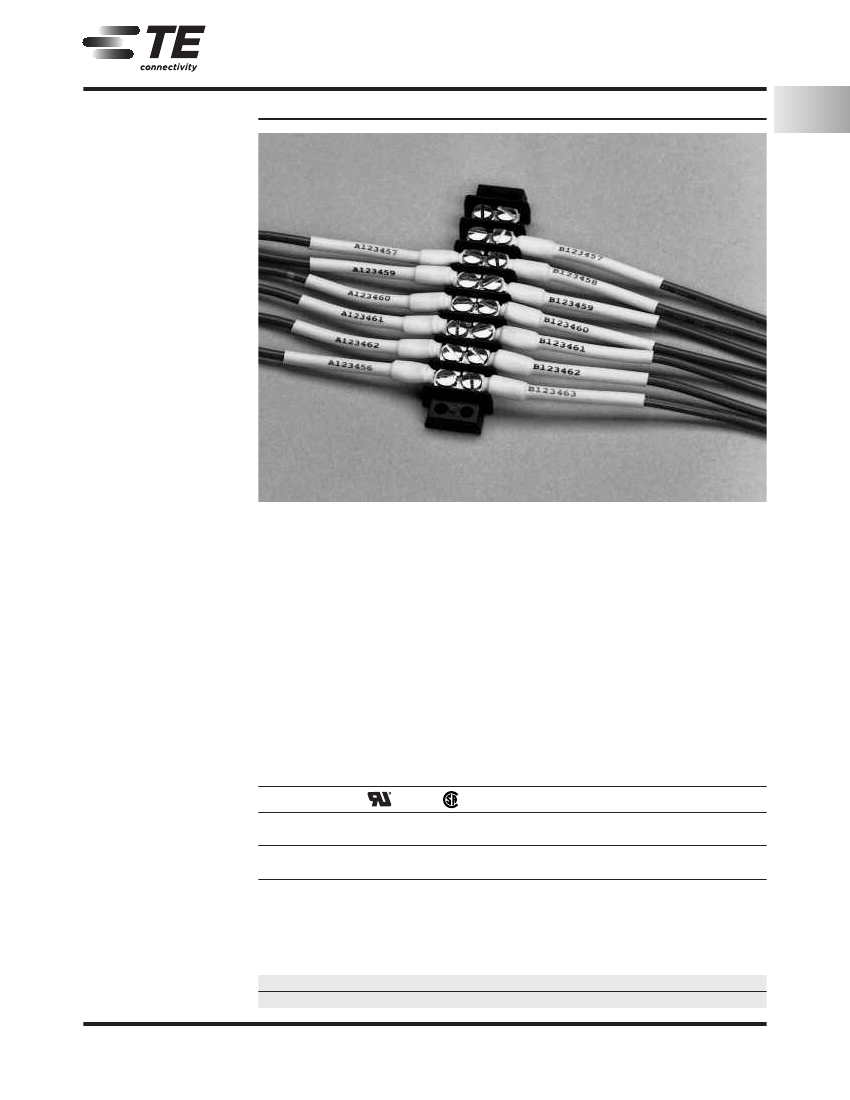

RAYCHEM Tubing Products
RNF-100
Flexible, Flame-Retardant,
General Purpose,
Polyolefin Tubing
Product Facts
2:1 shrink ratio
I
Superior abrasion and
solvent resistance when
compared with that of many
flexible, general purpose
polyolefin tubings
I
Excellent physical,
chemical, and electrical
properties that meet or
exceed industrial and
military standards for highly
reliable, general purpose
tubing
I
Flexible; conforms to
irregular shapes
I
Flame-retardant (colors
only)
I
Wide range of sizes and
colors
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Designed to provide superior
mechanical (abrasion, cut-
through, and strain relief),
thermal, and fluid-resistance
performance in demanding
environments. Widely used
to provide insulation and
strain relief of wire termina-
tions and connections. Used
for jacketing wire bundles
and light-duty harnesses
where superior abrasion
resistance is a plus. Also
used to identify and color-
code electrical connections
and wire bundles.
Installation
Minimum shrink
temperature: 95°C [203°F]
Minimum full recovery
temperature: 121°C [250°F]
Operating Temperature Range
-55°C to 135°C
[-67°F to 275°F]
Specifications/Approvals
Series
RNF-100 Type 1
(colors)
RNF-100 Type 2
(clear)
UL
E35586
600 V, 125°C
CSA
®
Military
AMS-DTL-23053/5*,
Class 1
Def. Stan. 59-97 Type 2B
AMS-DTL-23053/5*,
Class 2
VG 95343 Pt 5 Type B
Industry
VDE 0341 Pt 9005
Type A and B
Raychem
RT-350, Type 1
RK-6001
RT-350, Type 2
RK-6001
LR31929
600 V, 125°C
—
—
—
*Formerly MIL-I-23053/5 and MIL-DTL-23053/5.
Available in:
Americas
I
Europe
I
Asia Pacific
I
1-89
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
RNF-100
(Continued)
Product Dimensions
Size
3/64
1/16
3/32
1/8
3/16
1/4
3/8
1/2
3/4
1
1 1/4
1 1/2
2
3
4
5
Inside Diameter
Minimum Expanded
Maximum Recovered
as Supplied
After Heating
1.2 [0.046]
0.6 [0.023]
1.6 [0.063]
0.8 [0.031]
2.4 [0.093]
1.2 [0.046]
3.2 [0.125]
1.6 [0.062]
4.8 [0.187]
2.4 [0.093]
6.4 [0.250]
3.2 [0.125]
9.5 [0.375]
4.8 [0.187]
12.7 [0.500]
6.4 [0.250]
19.1 [0.750]
9.5 [0.375]
25.4 [1.000]
12.7 [0.500]
31.8 [1.250]
15.9 [0.625]
38.1 [1.500]
19.1 [0.750]
50.8 [2.000]
25.4 [1.000]
76.2 [3.000]
38.1 [1.500]
101.6 [4.000]
50.8 [2.000]
127.0 [5.000]
63.5 [2.500]
Recovered Wall Thickness**
After Heating
0.40 ± 0.08 [0.016 ± 0.003]
0.43 ± 0.08 [0.017 ± 0.003]
0.51 ± 0.08 [0.020 ± 0.003]
0.51 ± 0.08 [0.020 ± 0.003]
0.51 ± 0.08 [0.020 ± 0.003]
0.64 ± 0.08 [0.025 ± 0.003]
0.64 ± 0.08 [0.025 ± 0.003]
0.64 ± 0.08 [0.025 ± 0.003]
0.76 ± 0.08 [0.030 ± 0.003]
0.89 ± 0.12 [0.035 ± 0.005]
1.02 ± 0.15 [0.040 ± 0.006]
1.02 ± 0.15 [0.040 ± 0.006]
1.14 ± 0.16 [0.045 ± 0.007]
1.27 ± 0.20 [0.050 ± 0.008]
1.40 ± 0.23 [0.055 ± 0.009]
1.52 ± 0.23 [0.060 ± 0.009]
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Color
Black (-0, BK), white (-9, WH), red (-2, RD), blue (-6, BU),
yellow (-4, YO), clear (-X, CL)
Nonstandard
Brown (-1, BN), orange (-3, OR), green (-5, GN),
violet (-7, VT), gray (-8, GY)
Size selection
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
Standard packaging*** On spools or in 1.2-meter [4-foot] lengths.
Ordering description**** Specify product name, size and color (for example, RNF-100 1/4-0 [Europe]
or RNF-100 1/4-BK [Americas].
***Available in the convenient Mini-Spool packaging/dispensing system, for sizes 3/64” up to 1”.
****Europe only. For supply to MIL, Def Stan and BS add -MS, -DS or -BS to ordering description.
Standard
1-90
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
