1. RECEPTACLE IS INTERMATEABLE TO ARINC 600 STYLE SIZE 3 PLUG ASSEMBLY
2
-
SEE SHEET 1
-
-
-
ASSEMBLED CONNECTOR FEATURES COMPLY WITH ARINC 600 SPECIFICATION EXCEPT AS
NOTED.
PROVIDED:
3. THE FOLLOWING FILLER PLUGS FOR THE 13C2 INSERT ARE AVAILABLE, BUT NOT
SIZE 12 FILLER PLUG, TE PART NO. 1663767-4
SIZE 16 FILLER PLUG, TE PART NO. 1663767-3
SIZE 20 FILLER PLUG, TE PART NO. 1663767-2
4. ASSEMBLED CONNECTOR IS IN AGREEMENT, AS NOTED, WITH THALES TECHNICAL
PROCUREMENT SPECIFICATION J54625AA-REV-02 AND CUSTOMER PURCHASING
REQUIREMENTS SPECIFICATION 128-1089.
5
PCB STANDOFF (REF)
6 PLC
NOMINAL HOLE DIAMETER
0.90 mm PER IEC 60352-5
FOR 150 POSN. INSERT
600 HOLES
X Y
.730
[18.54]
.730
[18.54]
D
THE FOLLOWING POSTED PIN CONTACTS FOR THE 13C2 INSERT
ARE AVAILABLE BUT NOT INCLUDED.
(5A) THE MINIMUM POST EXTENSION BEYOND STANDOFF IS: .160 [4.06].
(5B) MAXIMUM POST EXTENSION FROM FRONT FACE IS 1.579 [40.11]
THE CONTACTS ARE RoHS COMPLIANT; SN-DIPPED.
SIZE 12 POSTED PIN CONTACT, TE PART NO. 2-448140-3
SIZE 16 POSTED PIN CONTACT, TE PART NO. 3-448139-4
SIZE 20 POSTED PIN CONTACT, TE PART NO. 3-448138-2
MANUFACTURERS PART NO. AND DATE CODE (YY-WW) MARKED IN AREA SHOWN.
-Y-
.100 TYP
[2.54]
(4 PLC)
.050
[1.27]
A1
.100 TYP
[2.54]
(4 PLC)
D
6
7. ESTIMATED WEIGHT OF CONNECTOR ASSEMBLY AS SHOWN: 485 GRAMS.
8. MAX LOCKING TORQUE FOR M3 CLINCH NUTS: 0.34 N-m (3.0 in-lbf)
MAX LOCKING TORQUE FOR M3 THREADED INSERTS: 0.45 N-m (4.0 in-lbf)
MAX LOCKING TORQUE IS VALID FOR FIRST CYCLE ONLY. MAX LOCKING
TORQUE REFERS TO THE TORQUE REQUIRED TO OVERCOME THE LOCKING
FEATURE OF THE CLINCH NUT OR THREADED INSERT. TORQUE VALUES
ARE FOR REFERENCE ONLY.
9. CONDUCTIVE DUST COVER INSTALLED FOR SHIPPING. (NOT SHOWN)
10. EYE OF THE NEEDLE CONTACT DESIGN CONSIDERATIONS:
(A) PCB HOLE DIAMETER: 0.90mm PER IEC 60352-5
(B) MININUM PCB THICKNESS: .063 [1.6]
(C) PCB PLATING: Sn PLATE RECOMMENDED
(D) NORMAL INSERTION FORCE: 8 lb MAX PER CONTACT;
900 lb AVERAGE PER 150 POSITION INSERT ASSEMBLY
C
11
2.090
[53.09]
(D)
(A)
A1
-X-
.825
[20.96]
KEYING SHOWN IN POSITION "01" FOR REFERENCE ONLY. KEYING
HARDWARE IS INCLUDED BUT SHIPPED UNASSEMBLED.
C
12. CONNECTOR PACKAGING SHALL HAVE A LABEL WHICH WILL INCLUDE,
AT A MINIMUM, THE THALES PART NUMBER, THE TE CONNECTIVITY
PART NUMBER AND THE MANUFACTURING DATE CODE.
13. RoHS CODE IS "L" AS DEFINED IN TEC-238-2 DUE TO HEXAVALENT
CHROMATE CONVERSION FINISH ON SHELL AND RETAINER PLATES.
14
2.130
[54.10]
(E)
(B)
3.225
[81.92]
.825
[20.96]
MIN HOLE DIAMETER
SZ 12 (POS 2,3,7
& 8) = .098 [2.49]
SZ 16 (POS 11) = .065 [1.65]
SZ 20 (POS 4
& 6) = .045 [1.14]
TE LOGO APPEARS IN THIS APPROXIMATE LOCATION
ON SHELLS MACHINED FROM BILLET.
15. ASSEMBLY SHOWN WITH DIE-CAST SHELL. ASSEMBLIES WITH
MACHINED SHELLS MAY VARY SLIGHTLY IN APPERANCE.
.090
REF
[ 2.29 ]
PRE-INSERTION
LENGTH
.120
REF
[ 3.04 ]
TO CENTER
OF EYE
4.260
[108.20]
2
7
11
3
8
4
6
2
7
11
3
8
4
6
(F)
SCALE
B
(C)
25:1
.370
[9.40]
2
3
8
11
SIZE 22 SOCKET CONTACTS
QTY = 600
BODY: COPPER ALLOY
HOOD: STAINLESS STEEL
BODY: .000050 [1.27um] MIN
GOLD ON MATING TINES,
Sn ON EON TAIL, BOTH
OVER NICKEL PLATE
HOOD: PASSIVATED
2
4
6
.420
[10.67]
B
NON REMOVEABLE
2 PLC
150 POSITION INSERT
4 PLC
M3 THREADED INSERT
6 PLC
M3 CLINCH NUT
10 PLC
13C2 INSERT ASSY
FRONT RELEASE/REMOVE
A
THERMOPLASTIC
STAINLESS STEEL
STEEL
NONE
ONE PIECE DESIGN
WITH NON-REMOVABLE
CONTACTS
.975
[24.77]
3 PLC
.975
[24.77]
3 PLC
.090
[2.29]
7
.230
[5.84]
.000
[0]
DRY FILM LUBRICANT
ZINC PLATED WITH SUPP
YELLOW TRIVALENT CHROMATE
NONE
FOR -1
CHROMATE CONVERSION PER
MIL-C-5541 TYPE I CLASS 1A
FOR -4
CHROMATE CONVERSION PER
MIL-C-5541 TYPE II, CLASS 3
FINISH
.150
[3.81]
.150
[3.81]
THERMOSET
MODIFIED TO
PERMANENTLY CLOSE
CAVITIES 1, 5, 9, 10,
12 & 13
.380
[9.65]

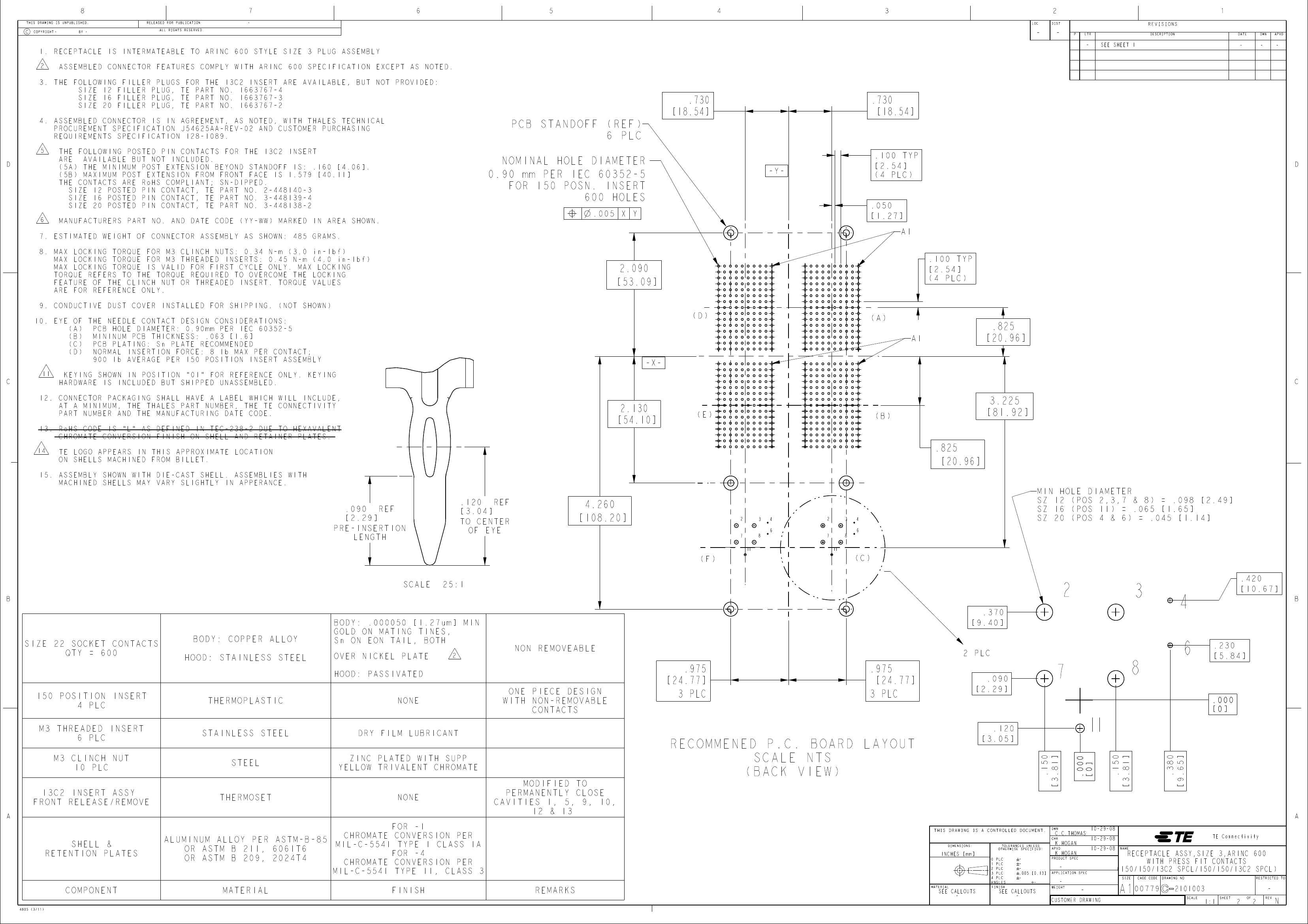

RECOMMENED P.C. BOARD LAYOUT
SCALE NTS
(BACK VIEW)
.120
[3.05]
.000
[0]
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
SHELL &
RETENTION PLATES
ALUMINUM ALLOY PER ASTM-B-85
OR ASTM B 211, 6061T6
OR ASTM B 209, 2024T4
MATERIAL
C.C.THOMAS
K.HOGAN
K.HOGAN
-
-
10-29-08
10-29-08
10-29-08
NAME
TE Connectivity
INCHES [mm]
APVD
COMPONENT
4805 (3/11)
REMARKS
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
.005 [0.13]
-
-
PRODUCT SPEC
APPLICATION SPEC
RECEPTACLE ASSY,SIZE 3,ARINC 600
WITH PRESS FIT CONTACTS
(150/150/13C2 SPCL/150/150/13C2 SPCL)
SEE CALLOUTS
-
SEE CALLOUTS
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
2101003
SCALE
1:1
SHEET
2
OF
2
REV
-
N
