2287598-2

Description
ARISO RXM030S012PNP2A, 12W, 4PINS
CategoryThe connector
File Size1MB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

2287598-2 Online Shopping

Suppliers Part Number Price MOQ In stock
2287598-2 - - View Buy Now

2287598-2 Overview

ARISO RXM030S012PNP2A, 12W, 4PINS

2287598-2 Parametric

Parameter NameAttribute value
Number of Positions4
Number of signal positions2
Input/output configuration2/PNP signal, 1/+24VDC, 1/GND
Number of power pins1
Number of grounding locations1
Output current (max) (mA)500
Rated power (W)12
Operating voltage (VDC)24
type of dataPNP Unidirectional
body length80 mm [ 3.15 in ]
Cable assembly length300 mm [ 11.8 in ]
Body diameter30 mm [ 1.18 in ]
Working group temperature range-20 – 55 °C [ -4 – 131 °F ]
operatePower Receiver/Data Transmitter
IP ratingIP67
keyingA

Preview

Download Datasheet
8
C

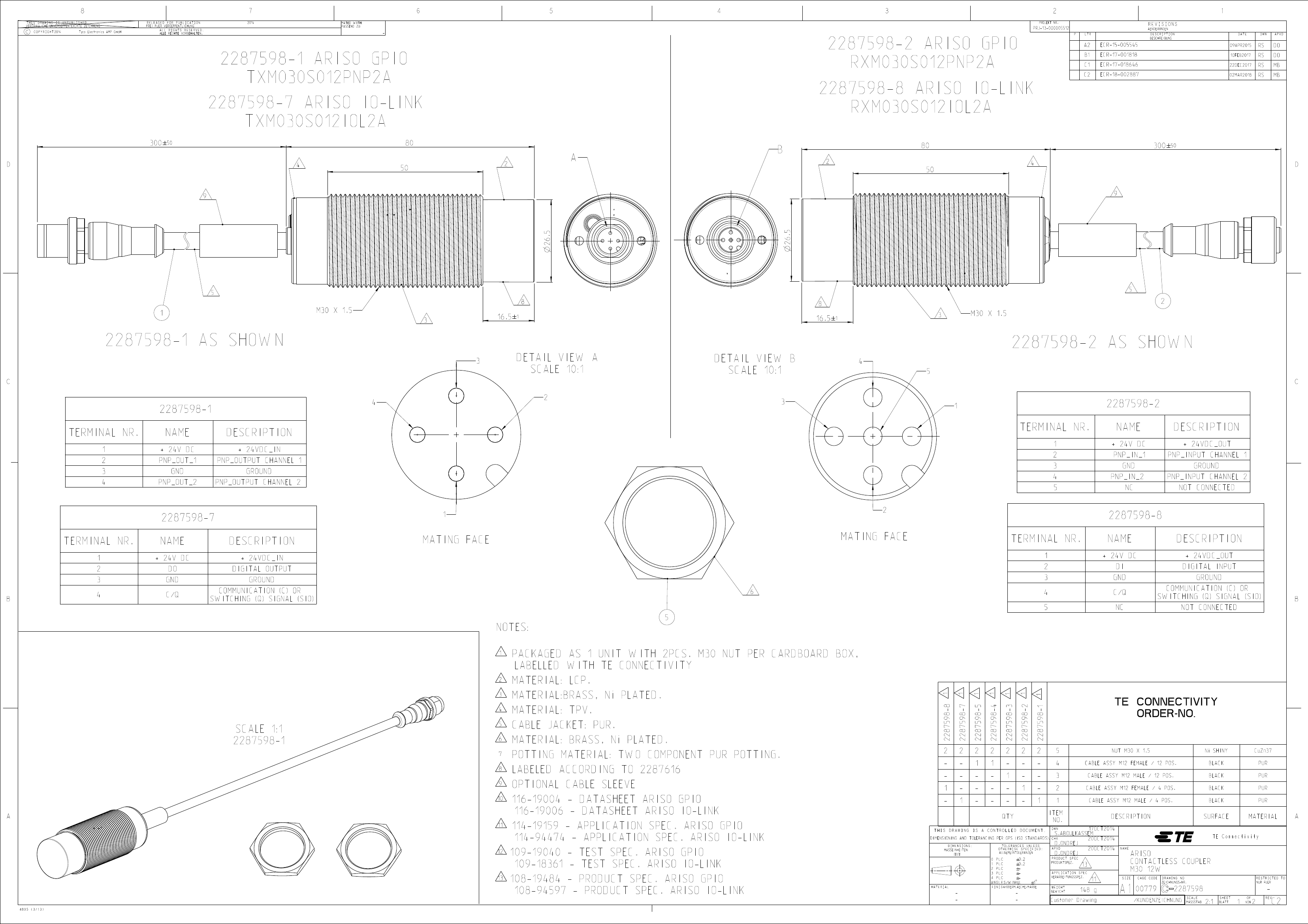

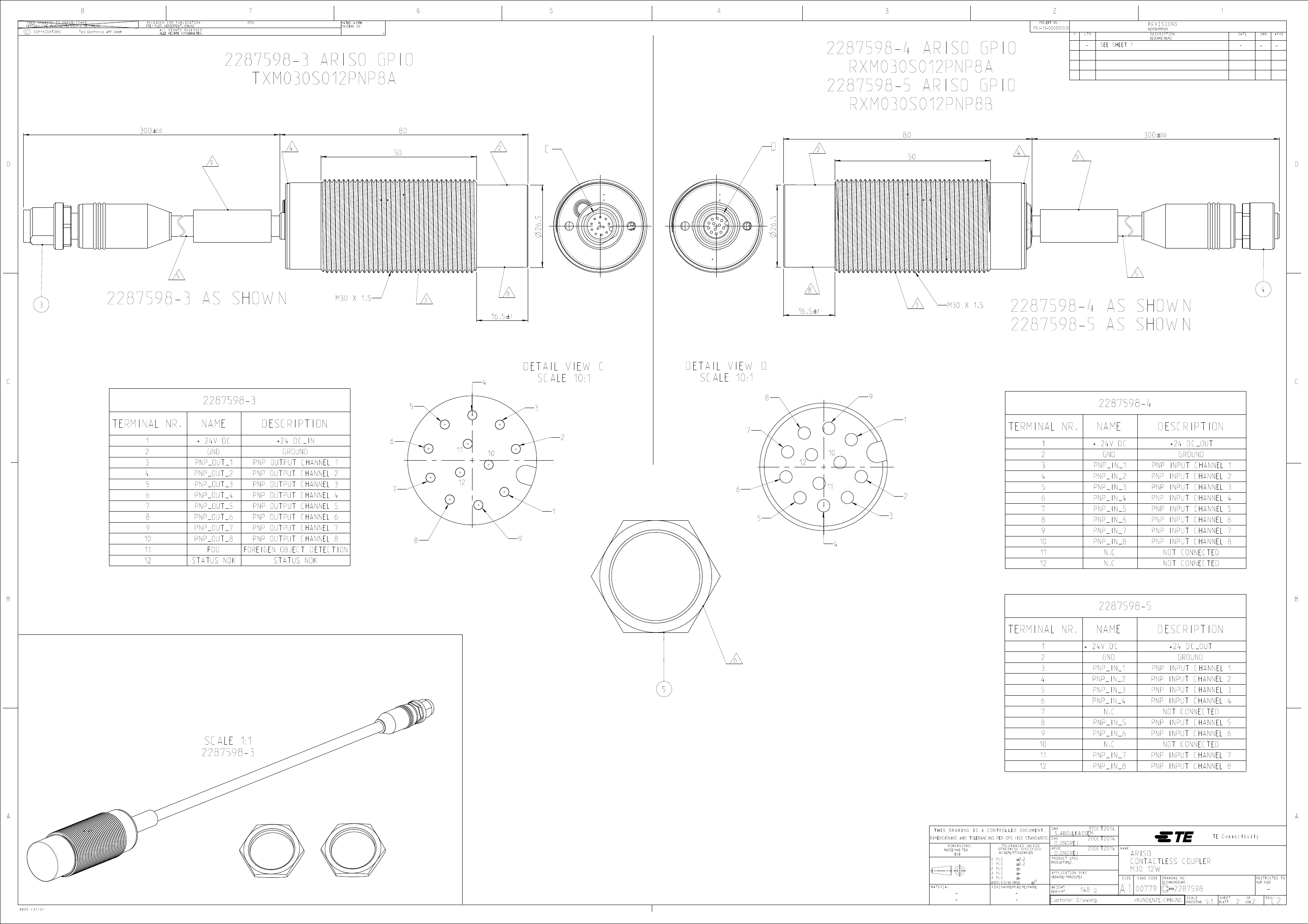

THIS DRAWING IS UNPUBLISHED.
VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG
COPYRIGHT
2014
Tyco Electronics AMP GmbH
RELEASED FOR PUBLICATION
FREI FUER VEROEFFENTLICHUNG
ALL RIGHTS RESERVED.
ALLE RECHTE VORBEHALTEN.
7
2014
MATED WITH:
PASSEND ZU:
6
-
5
4
3
2
PRJ-13-000005512
PROJEKT NR.:
1
REVISIONS
P
LTR
AENDERUNGEN
DESCRIPTION
BESCHREIBUNG
DATE
DWN
APVD
2287598-7 ARISO IO-LINK
TXM030S012IOL2A
300
D
50
2287598-1 ARISO GPIO
TXM030S012PNP2A
2287598-8 ARISO IO-LINK
RXM030S012IOL2A
2
2287598-2 ARISO GPIO
RXM030S012PNP2A
A2
B1
C1
C2
ECR-15-005545
ECR-17-001818
ECR-17-018646
ECR-18-002887
09APR2015
10FEB2017
22DEC2017
02MAR2018
RS
RS
RS
RS
DO
DO
MB
MB
80
4
50
A
B
80
2
300
4
50
50
D
9
9
26.5
26.5
5
5
1
M30 X 1.5
8
3
8
2
1
16.5
1
16.5
3
M30 X 1.5
2287598-1 AS SHOWN
C
3
DETAIL VIEW A
SCALE 10:1
2
DETAIL VIEW B
SCALE 10:1
3
4
2287598-2 AS SHOWN
5
C
2287598-1
TERMINAL NR.
1
2
3
4
4
1
2287598-2
TERMINAL NR.
1
2
3
4
5
NAME
PNP_OUT_1
PNP_OUT_2
GND
+ 24V DC
DESCRIPTION
PNP_OUTPUT CHANNEL 1
PNP_OUTPUT CHANNEL 2
2
GROUND
+ 24VDC_IN
NAME
+ 24V DC
PNP_IN_1
GND
NC
DESCRIPTION
PNP_INPUT CHANNEL 1
PNP_INPUT CHANNEL 2
NOT CONNECTED
GROUND
+ 24VDC_OUT
PNP_IN_2
2287598-7
TERMINAL NR.
2
1
3
1
2287598-8
TERMINAL NR.
1
2
3
NAME
+ 24V DC
GND
C/Q
DO
DESCRIPTION
DIGITAL OUTPUT
COMMUNICATION (C) OR
SWITCHING (Q) SIGNAL (SIO)
GROUND
+ 24VDC_IN
MATING FACE
MATING FACE
NAME
+ 24V DC
GND
C/Q
NC
DI
DESCRIPTION
DIGITAL INPUT
COMMUNICATION (C) OR
SWITCHING (Q) SIGNAL (SIO)
NOT CONNECTED
GROUND
+ 24VDC_OUT
B
4
6
4
5
B
NOTES:
1
5
2
3
4
SCALE 1:1
2287598-1
5
6
7
8
9
10
A
11
12
13
PACKAGED AS 1 UNIT WITH 2PCS. M30 NUT PER CARDBOARD BOX,
LABELLED WITH TE CONNECTIVITY
MATERIAL: LCP.
MATERIAL:BRASS, Ni PLATED.
MATERIAL: TPV.
CABLE JACKET: PUR.
MATERIAL: BRASS, Ni PLATED.
POTTING MATERIAL: TWO COMPONENT PUR POTTING.
LABELED ACCORDING TO 2287616
OPTIONAL CABLE SLEEVE
116-19004 - DATASHEET ARISO GPIO
116-19006 - DATASHEET ARISO IO-LINK
114-19159 - APPLICATION SPEC. ARISO GPIO
114-94474 - APPLICATION SPEC. ARISO IO-LINK
109-19040 - TEST SPEC. ARISO GPIO
109-18361 - TEST SPEC. ARISO IO-LINK
108-19484 - PRODUCT SPEC. ARISO GPIO
108-94597 - PRODUCT SPEC. ARISO IO-LINK
1
1
1
1
1
1
1
2287598-8
2287598-7
2287598-4
2287598-5
2287598-3
2287598-2
2
-
-
1
-
2
-
-
-
1
2
1
-
-
-
2
1
-
-
-
2
-
1
-
-
QTY
2
-
-
1
-
2287598-1
TE CONNECTIVITY
ORDER-NO.
5
4
3
2
1
ITEM
NO.
DWN
2
-
-
-
1
NUT M30 X 1.5
CABLE ASSY M12 FEMALE / 12 POS.
CABLE ASSY M12 MALE / 12 POS.
CABLE ASSY M12 FEMALE / 4 POS.
CABLE ASSY M12 MALE / 4 POS.
Ni SHINY
BLACK
BLACK
BLACK
BLACK
CuZn37
PUR
PUR
PUR
PUR
DESCRIPTION
SURFACE
MATERIAL
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONING AND TOLERANCING
DIMENSIONS:
MASSEINHEITEN:
mm
MATERIAL
0 PLC
0.2
1 PLC
0.2
2 PLC
-
3 PLC
-
4 PLC
-
ANGLES
/WINKEL
17OCT2014
S.ABOULKASSEM
PER GPS (ISO STANDARDS).
CHK
20OCT2014
D.ONDREJ
TOLERANCES UNLESS
OTHERWISE SPECIFIED: APVD
20OCT2014
ALLGEMEINTOLERANZEN
D.ONDREJ
PRODUCT SPEC
PRODUKTSPEZ.
TE Connectivity
NAME
13
11
-
-
FINISH
/OBERFLAECHE/FARBE
1 $
APPLICATION SPEC
VERARBEITUNGSSPEZ.
WEIGHT
GEWICHT
-
-
148 g
Customer Drawing
A1
00779
SIZE
ARISO
CONTACTLESS COUPLER
M30 12W
CAGE CODE DRAWING NO
ZEICHNUNGS-NR.
2287598
SCALE
MASSSTAB
RESTRICTED TO
NUR FUER
/KUNDENZEICHNUNG
4805 (3/13)
2:1
SHEET
BLATT
1
OF
VON
2
REV
-
C2
