2203518-2: Description.64MM,32P UNSEALED PLUG ASSY,B; CategoryThe connector; File Size257KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2203518-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2203518-2	-	-	View	Buy Now

2203518-2 Overview

.64MM,32P UNSEALED PLUG ASSY,B

2203518-2 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	line to line
Sealable	no
Hybrid connector	no
Main locking features	Housing integration
strain relief	no
Line spacing	5.9 mm [ .232 in ]
Number of Positions	32
Rows	4
color	blue
Cable exit angle	180°
Main material	PA GF
Width of docking male end	.64 mm [ .025 in ]
Installation features	Without
Terminal position guarantee	yes
polarization	yes
Centerline (Pitch)	2.54 mm [ .1 in ]
width	34 mm [ 1.339 in ]
high	42 mm [ 1.654 in ]
length	35 mm [ 1.378 in ]
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]
Circuit Application	Signal
UL flammability rating	UL 94-HB
Able to ensure connector position	yes
Repairable	no

Preview

Download Datasheet

View All

4

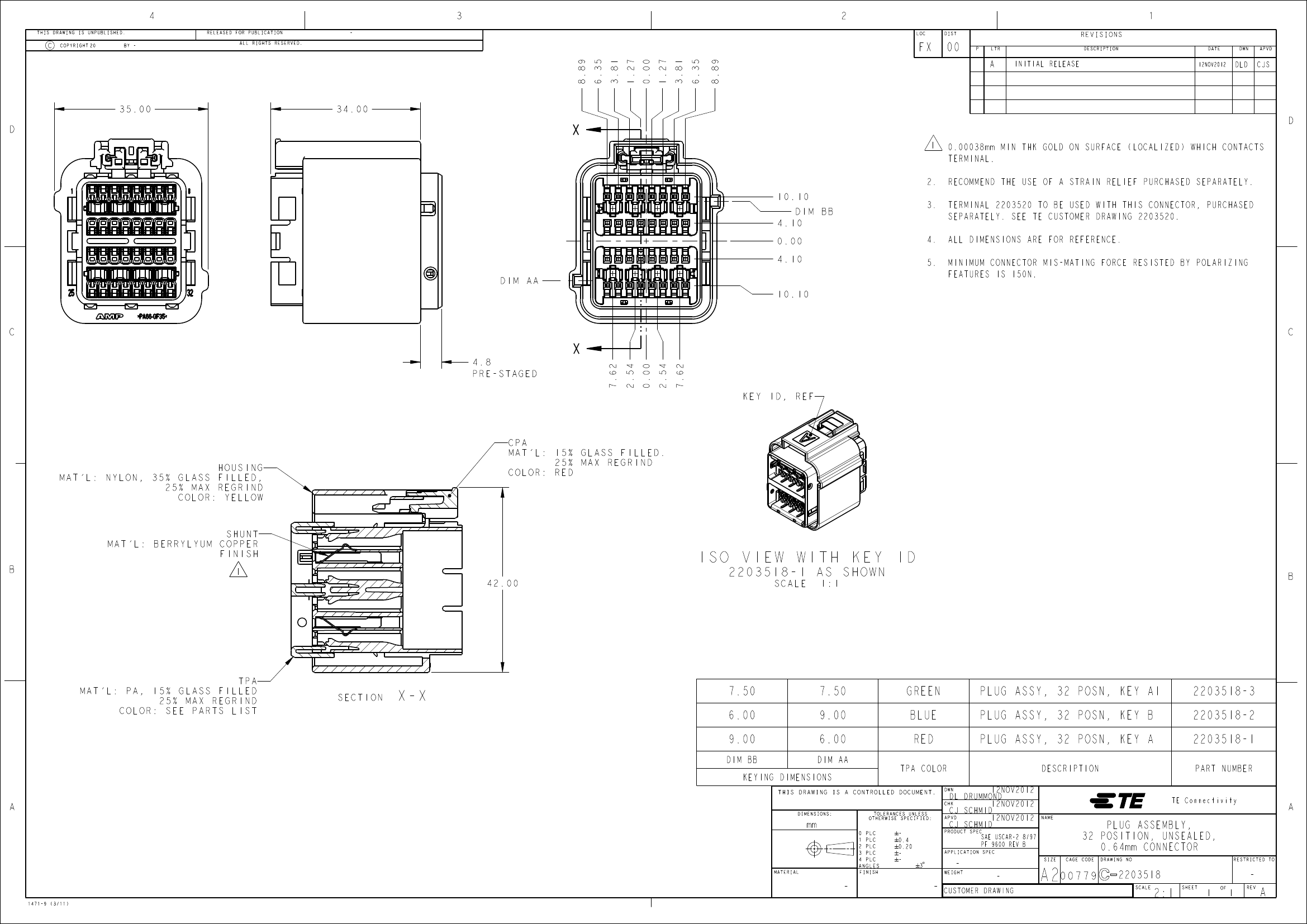

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

3

2

LOC

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

8.89

6.35

3.81

1.27

0.00

1.27

3.81

6.35

35.00

34.00

8.89

D

X

D

10.10

DIM BB

4.10

0.00

4.10

DIM AA

10.10

C

4.8

PRE-STAGED

X

7.62

2.54

0.00

2.54

7.62

KEY ID, REF

C

HOUSING

MAT'L: NYLON, 35% GLASS FILLED,

25% MAX REGRIND

COLOR: YELLOW

CPA

MAT'L: 15% GLASS FILLED.

25% MAX REGRIND

COLOR: RED

MAT'L: BERRYLYUM COPPER

FINISH

SHUNT

B

ISO VIEW WITH KEY ID

42.00

2203518-1 AS SHOWN

SCALE

1:1

B

TPA

MAT'L: PA, 15% GLASS FILLED

25% MAX REGRIND

COLOR: SEE PARTS LIST

SECTION

X-X

7.50

6.00

9.00

DIM BB

7.50

9.00

6.00

DIM AA

GREEN

BLUE

RED

TPA COLOR

DWN

CHK

PLUG ASSY, 32 POSN, KEY A1

PLUG ASSY, 32 POSN, KEY B

PLUG ASSY, 32 POSN, KEY A

DESCRIPTION

2203518-3

2203518-2

2203518-1

PART NUMBER

TE Connectivity

KEYING DIMENSIONS

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

NAME

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

SAE USCAR-2 8/97

PF 9600 REV B

WEIGHT

A2

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

1471-9 (3/11)

2203518-2 Related Products

	2203518-2	2203518-1
Description	.64MM,32P UNSEALED PLUG ASSY,B	.64MM,32P UNSEALED PLUG ASSY,A
Connector type	Female terminal housing	Female terminal housing
Connector System	line to line	line to line
Sealable	no	no
Hybrid connector	no	no
Main locking features	Housing integration	Housing integration
strain relief	no	no
Line spacing	5.9 mm [ .232 in ]	5.9 mm [ .232 in ]
Number of Positions	32	32
Rows	4	4
color	blue	red
Cable exit angle	180°	180°
Main material	PA GF	PA GF
Width of docking male end	.64 mm [ .025 in ]	.64 mm [ .025 in ]
Installation features	Without	Without
Terminal position guarantee	yes	yes
polarization	yes	yes
Centerline (Pitch)	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]
width	34 mm [ 1.339 in ]	34 mm [ 1.339 in ]
high	42 mm [ 1.654 in ]	42 mm [ 1.654 in ]
length	35 mm [ 1.378 in ]	35 mm [ 1.378 in ]
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]
Circuit Application	Signal	Signal
UL flammability rating	UL 94-HB	UL 94-HB
Able to ensure connector position	yes	yes
Repairable	no	no
