2N6792PBF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N6792PBF

Preview

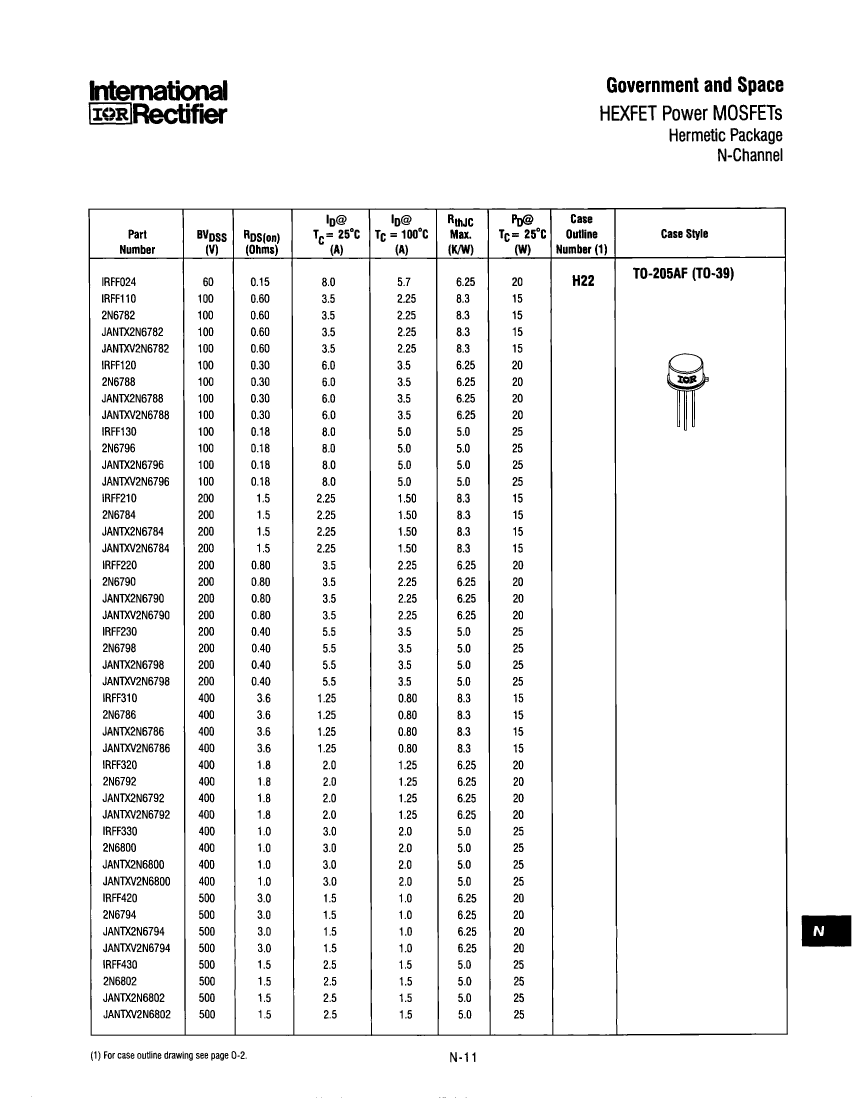

2N6792PBF: DescriptionPower Field-Effect Transistor, 2A I(D), 400V, 1.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF; CategoryDiscrete semiconductor The transistor; File Size39KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2N6792PBF Overview

Power Field-Effect Transistor, 2A I(D), 400V, 1.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF

2N6792PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	compliant
Other features	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	0.19 mJ
Configuration	SINGLE
Minimum drain-source breakdown voltage	400 V
Maximum drain current (ID)	2 A
Maximum drain-source on-resistance	1.8 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-205AF
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	20 W
Maximum pulsed drain current (IDM)	10 A
Certification status	Not Qualified
Guideline	MILITARY STANDARD (USA)
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	95 ns
Maximum opening time (tons)	75 ns
Base Number Matches	1

Preview

Download Datasheet

View All

2N6792PBF Related Products

	2N6792PBF	2N6788PBF	2N6790PBF	2N6782PBF	2N6784PBF	2N6786PBF	2N6794PBF
Description	Power Field-Effect Transistor, 2A I(D), 400V, 1.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF	Power Field-Effect Transistor, 6A I(D), 100V, 0.3ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF	Power Field-Effect Transistor, 3.5A I(D), 200V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF	Power Field-Effect Transistor, 3.5A I(D), 100V, 0.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF	Power Field-Effect Transistor, 2.25A I(D), 200V, 1.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF	Power Field-Effect Transistor, 1.25A I(D), 400V, 3.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF	Power Field-Effect Transistor, 1.5A I(D), 500V, 3ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AF
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	AVALANCHE RATED	AVALANCHE RATED	AVALANCHE RATED	AVALANCHE RATED	AVALANCHE RATED	AVALANCHE RATED	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	0.19 mJ	76 mJ	66 mJ	68 mJ	48 mJ	0.82 mJ	0.11 mJ
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	400 V	100 V	200 V	100 V	200 V	400 V	500 V
Maximum drain current (ID)	2 A	6 A	3.5 A	3.5 A	2.25 A	1.25 A	1.5 A
Maximum drain-source on-resistance	1.8 Ω	0.3 Ω	0.8 Ω	0.6 Ω	1.5 Ω	3.6 Ω	3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-205AF	TO-205AF	TO-205AF	TO-205AF	TO-205AF	TO-205AF	TO-205AF
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	20 W	20 W	20 W	15 W	15 W	15 W	20 W
Maximum pulsed drain current (IDM)	10 A	24 A	14 A	14 A	9 A	5.5 A	6.5 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	MILITARY STANDARD (USA)	MILITARY STANDARD (USA)	MILITARY STANDARD (USA)	MILITARY STANDARD (USA)	MILITARY STANDARD (USA)	MILITARY STANDARD (USA)	MILITARY STANDARD (USA)
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	40	40	40	40	40	40	40
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	95 ns	110 ns	100 ns	45 ns	50 ns	65 ns	90 ns
Maximum opening time (tons)	75 ns	110 ns	90 ns	40 ns	35 ns	35 ns	70 ns
Base Number Matches	1	1	1	1	-	-	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-	-
