B160B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> B160B

B160B: Description1 A, 60 V, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size345KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

B160B Overview

1 A, 60 V, SILICON, SIGNAL DIODE

B160B Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	Plastic, SMB, 2 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	C BEND
terminal coating	NOT SPECIFIED
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Craftsmanship	SCHOTTKY
structure	single
Diode component materials	silicon
Diode type	Signal diode
Maximum repetitive peak reverse voltage	60 V
Maximum average forward current	1 A

Preview

Download Datasheet

View All

Green

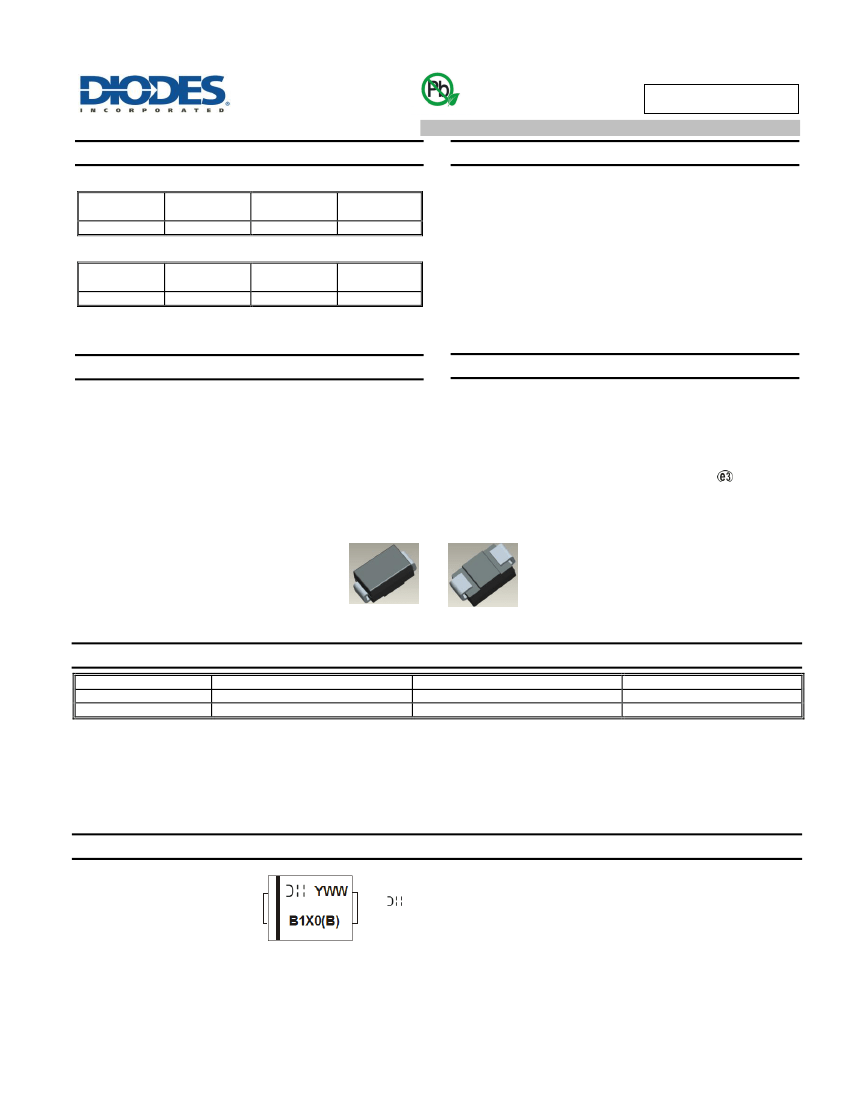

B120/B - B160/B

Features and Benefits

1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Summary

B120/B, B130/B, B140/B

RRM

(V)

20/30/40

B150/B, B160/B

RRM

(V)

50/60

(A)

1.0

F max

(V) T

+25°C

0.7

R max

(mA) T

= +25°C

0.5

(A)

1.0

F max

(V) T

+25°C

0.5

R max

(mA) T

= +25°C

0.5



Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 30A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3)

Description and Applications

This Schottky Barrier Rectifier is designed to meet the general

requirements of commercial applications. It is ideally suited for use

as:



Polarity Protection Diode

Re-Circulating Diode

Switching Diode

Mechanical Data



Case: SMA/SMB

Case Material: Molded Plastic.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish).

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band or Cathode Notch

Weight: SMA 0.064 grams (Approximate)

SMB 0.093 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

B1XX-13-F

B1XXB-13-F

Notes:

Qualification

Commercial

Case

SMA

SMB

Packaging

5,000/Tape & Reel

3,000/Tape & Reel

*xx = Device Type, e.g. B120-13-F (SMA Package); B120B-13-F (SMB Package).

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

B1X0 = Product Type Marking Code, ex: B120 (SMA package)

B1X0B = Product Type Marking Code, ex: B160B (SMB package)

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 15 for 2015)

WW = Week Code (01 to 53)

B120/B - B160/B

Document number: DS13002 Rev. 19 - 2

1 of 5

www.diodes.com

October 2016

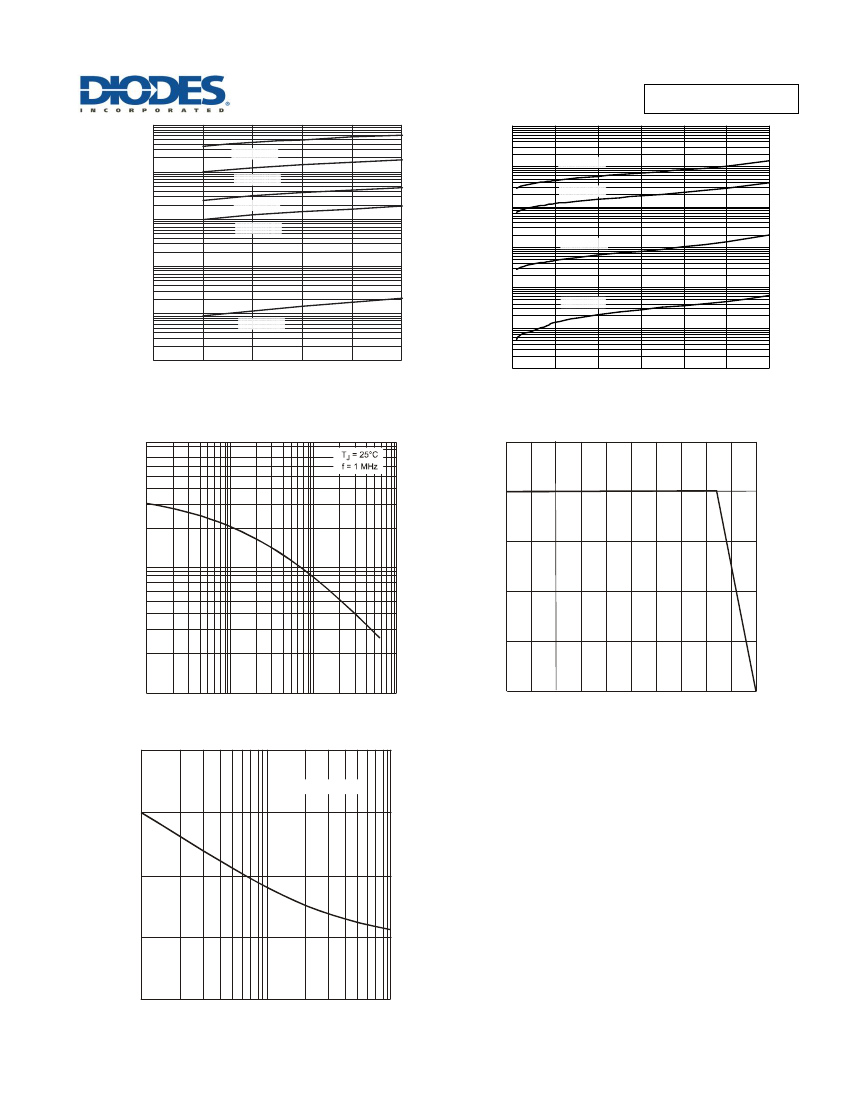

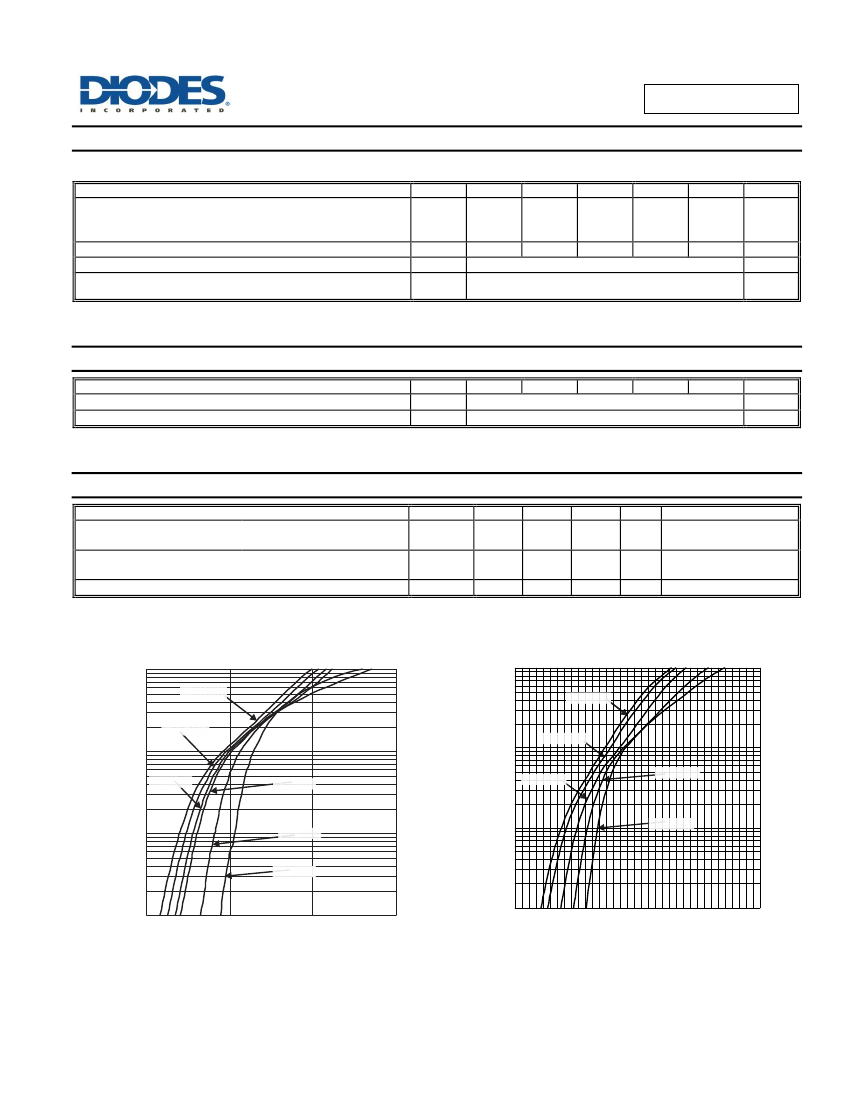

B120/B - B160/B

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

B120/B - B160/B

Document number: DS13002 Rev. 19 - 2

5 of 5

www.diodes.com

October 2016
