521076-000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 521076-000

521076-000: DescriptionD-181-1220-90/9; CategoryWire/cable; File Size186KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

521076-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	521076-000	-	-	View	Buy Now

521076-000 Overview

D-181-1220-90/9

521076-000 Parametric

Parameter Name	Attribute value
Suitable	coaxial cable
Temperature identification	no
Connector type	welded casing
Temperature identification type	no
Preassembled lead types	55A0111
Cable shielding materials	silver, tin
Shield outer diameter (maximum value)	3.2 mm
Lead splitting	Stranded wire
Lead plating materials	tin
Lead color	white/white with black stripes
Termination method	welding
Insulating sleeve outer diameter	1.5 – 3.6 mm [ .06 – .14 in ]
Conductor outer diameter	.25 – .7 mm [ .01 – .027 in ]
Dielectric outer diameter	2.4 mm [ .095 in ]
Dielectric outer diameter	2.4 mm [ .095 in ]
Preassembled lead size (mm²)	.61
Total length (mm)	17, 21.5
total length (in)	.67, .85
Preassembled lead size (AWG)	20
Resistance properties	Immersion protection
Operating temperature (max) (°C)	150
Meet government qualifications	no
MIL/NAS specifications (MIL-S-83519, NAS-1747)	no

Preview

Download Datasheet

View All

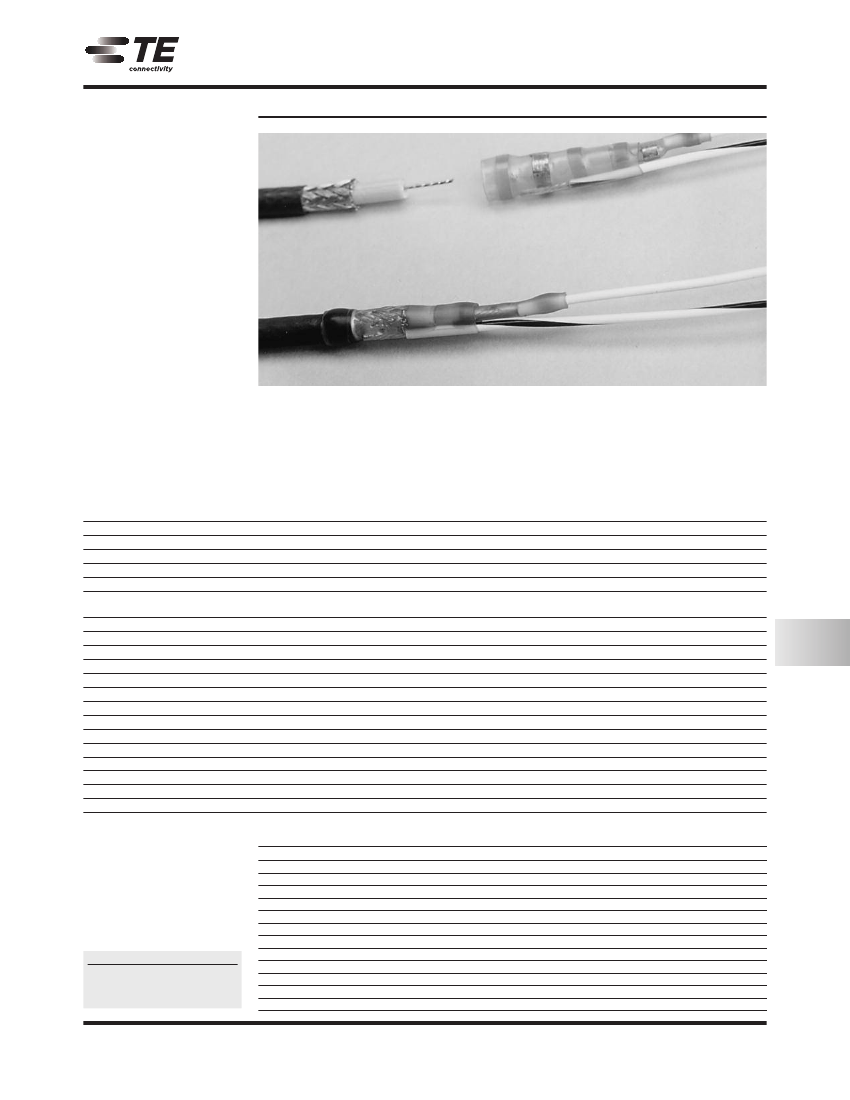

Coaxial Cable Termination

SolderSleeve Coaxial Cable Terminators

Product Facts

Transparent polyvinylidene

fluoride or polyolefin

insulation sleeve provides

encapsulation,

inspectability, strain relief

(eliminates center conductor

breakage), and insulation.

■

Prefluxed solder preform

provides a controlled

soldering process

■

One-piece design provides

easy installation and lower

installed cost

■

Preinstalled termination

leads provide convenience

and ease of installation

■

Applications

Used for terminating coaxial

cable to component termi-

nals, contacts, printed cir-

cuit boards, and solderless

wrap terminals.

Product Options

Product Series

B-155, CWT

B-02X/B-04X

D-181

D-184

Max. Operating Temp.

125°C [257°F]

150°C [302°F]

125°C [257°F]

Product Selection Process

1. Select product series

from the product options

table below.

2. Select preinstalled lead

type from the table below.

3. Determine cable RG

number or dimensions.

4. Select part number from

Table A (B-155, CWT

series) or Table B (B-

02X/B-04X series) on the

next page.

Design

2-pc.

1-pc.

2-pc.

Use on Cables Rated (Min)

85°C [185°F]

125°C [257°F]

85°C [185°F]

Cable Shield Plating

Tin, copper

Tin, silver

Tin

Part No. Selection Table

Preinstalled Lead Descriptions

Series

B-155, CWT

B-021

B-041

B-043

B-020

B-040

B-044

D-181-12XX

D-181-22XX

D-181-32XX

D-181-18XX

D-181-28XX

D-184

Lead Type

XL polyethelene

M81822/13 (solderless wrap)

55A0111 (MIL-W-22759/32)

M81822/13

55A0111 (MIL-W-22759/32)

Plating

Tin

Silver

Tin

Silver

Tin

Stranding

Stranded (W1)

Solid-OFHC

Stranded

Solid

Stranded

AWG

24—30

20—30

26 – 30

20 – 26

Length

150 [6.000]

Color

White (cntr), green (grnd)

White (cntr), blue (grnd)

White (cntr), white w/black stripe (grnd)

White (cntr), blue (grnd)

White (cntr), white w/black stripe (grnd)

Electrical Interconnect Products

Product Characteristics

Material

Insulation (B-02X/B-04X, D-181, D-184)

Insulation (B-155, CWT series)

Solder and flux (B-02X/B-04X, D-181)

Solder and flux (CWT series, D-184)

Solder and flux (B-155)

Typical Performance

Voltage drop

Tensile strength

Dielectric strength

Temperature rating (B-155, CWT, D-184)

Temperature rating (B-02X/B-04X, D-181)

Insulation resistance

Radiation-crosslinked, heat-shrinkable polyvinylidene fluoride

Radiation-crosslinked, heat-shrinkable polyolefin

Solder: Sn63 Pb37

Flux: ROL1 per ANSI-J-004 (RMA Flux)

Solder: Sn50 Pb32 Cd18

Flux: ROM1 per ANSI-J-004 (RA Flux)

Solder: Sn42Bi58

Flux: ROM1 per ANSI-J-004 (RA Flux)

2.0 mV

Exceeds strength of conductor

2.0 kV

-55°C to 125°C [-67°F to 257°F]

-55°C to 150°C [-67°F to 302°F]

1000 megohms

Available in:

Americas

Europe

Asia Pacific

■

8-55

Catalog 1654025

Revised 5-12

www.te.com

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

Dimensions are in millimeters

unless otherwise specified.

USA: +1 (800) 522-6752

Canada: +1 (905) 475-6222

Mexico/C. Am.: +52 (0) 55-1106-0800

Latin/S. Am.: +54 (0) 11-4733-2200

Germany: +49 (0) 6251-133-1999

UK: +44 (0) 800-267666

France: +33 (0) 1-3420-8686

Netherlands: +31 (0) 73-6246-999

China: +86 (0) 400-820-6015

521076-000 Related Products

	521076-000	109858-000	955477-000	385193-000
Description	D-181-1220-90/9	D-181-1222-90/9	D-181-1224-90/9	D-181-2224-90/9
Suitable	coaxial cable	coaxial cable	coaxial cable	coaxial cable
Temperature identification	no	no	no	no
Connector type	welded casing	welded casing	welded casing	welded casing
Temperature identification type	no	no	no	no
Preassembled lead types	55A0111	55A0111	55A0111	55A0111
Cable shielding materials	silver, tin	silver, tin	silver, tin	silver, tin
Shield outer diameter (maximum value)	3.2 mm	3.2 mm	3.2 mm	.14 inches
Lead splitting	Stranded wire	Stranded wire	Stranded wire	Stranded wire
Lead plating materials	tin	tin	tin	tin
Lead color	white/white with black stripes	white/white with black stripes	white/white with black stripes	white/white with black stripes
Termination method	welding	welding	welding	welding
Insulating sleeve outer diameter	1.5 – 3.6 mm [ .06 – .14 in ]	1.5 – 3.6 mm [ .06 – .14 in ]	1.5 – 3.6 mm [ .06 – .14 in ]	1.9 – 4.3 mm [ .075 – .017 in ]
Conductor outer diameter	.25 – .7 mm [ .01 – .027 in ]	.25 – .7 mm [ .01 – .027 in ]	.25 – .7 mm [ .01 – .027 in ]	.3 – .7 mm [ .012 – .027 in ]
Preassembled lead size (mm²)	.61	.38	.24	.24
Total length (mm)	17, 21.5	17, 21.5	17, 21.5	17, 22.7
total length (in)	.67, .85	.67, .85	.67, .85	.67, .895
Preassembled lead size (AWG)	20	22	24	24
Resistance properties	Immersion protection	Immersion protection	Immersion protection	Immersion protection
Operating temperature (max) (°C)	150	150	150	150
Meet government qualifications	no	no	no	no
MIL/NAS specifications (MIL-S-83519, NAS-1747)	no	no	no	no
Dielectric outer diameter	2.4 mm [ .095 in ]	2.4 mm [ .095 in ]	2.4 mm [ .095 in ]	2.9 mm [ .115 in ]
